The 0603WAF510JT5E from UNI-ROYAL／ROYALOHM is a general-purpose thick film chip resistor featuring a resistance of 51Ω, a tolerance of ±1%, and a rated power of 0.1W or 1/10W. It is supplied in a compact 0603-inch／1608-metric package suitable for high-density PCB designs, automated surface-mount assembly, reflow soldering, and wave soldering.
The resistor has a temperature coefficient of ±100ppm/°C and an operating-temperature range from -55°C to +155°C. The 0603 series specifies a maximum working voltage of 75V, a maximum overload voltage of 150V, and a dielectric-withstanding voltage of 300V. The actual continuous working voltage must not exceed the lower value of √(P×R) or the specified maximum working voltage.
Its nominal dimensions are approximately 1.60 × 0.80 × 0.45mm. Within the part number, “WA” identifies the 1/10W power rating, “F” represents ±1% tolerance, “510J” identifies the 51Ω resistance, “T” specifies tape-and-reel packaging, “5” indicates 5,000 pieces per reel, and “E” identifies the standard version.
The series is RoHS compliant and halogen-free. It is suitable for consumer electronics, telecommunications equipment, mobile devices, industrial controls, instrumentation, and general electronic products.
Key Specifications:
- Manufacturer: UNI-ROYAL／ROYALOHM
- Manufacturer Part Number: 0603WAF510JT5E
- Resistor Type: General-Purpose Thick Film Chip Resistor
- Resistance: 51Ω
- Resistance Tolerance: ±1%
- Power Rating: 0.1W／1/10W
- Package Size: 0603 Inch／1608 Metric
- Temperature Coefficient: ±100ppm/°C
- Series Maximum Working Voltage: 75V
- Maximum Overload Voltage: 150V
- Dielectric-Withstanding Voltage: 300V
- Operating Temperature: -55°C to +155°C
- Dimensions: Approximately 1.60 × 0.80 × 0.45mm
- Mounting Type: Surface Mount, SMD/SMT
- Soldering Compatibility: Reflow and Wave Soldering

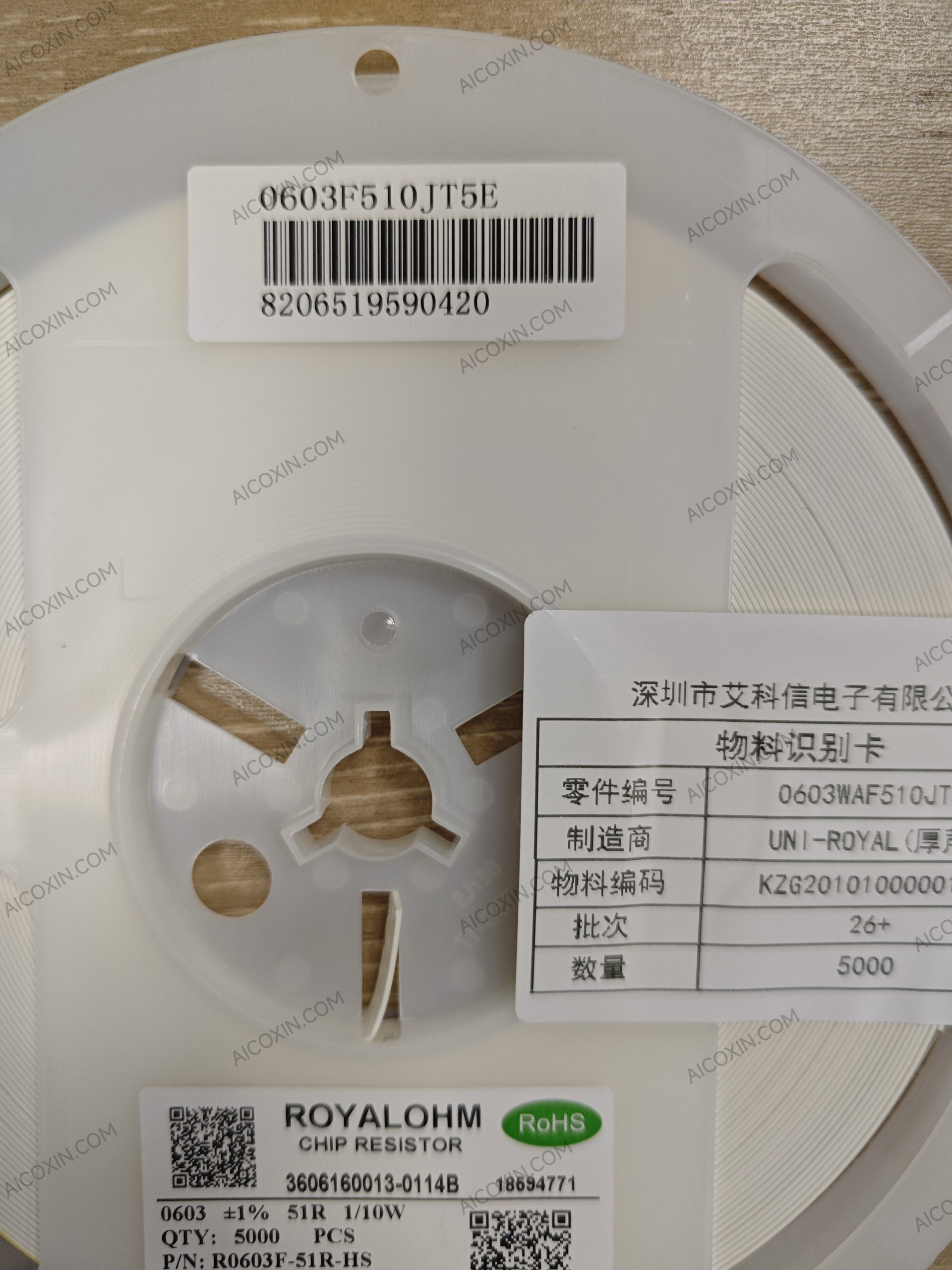

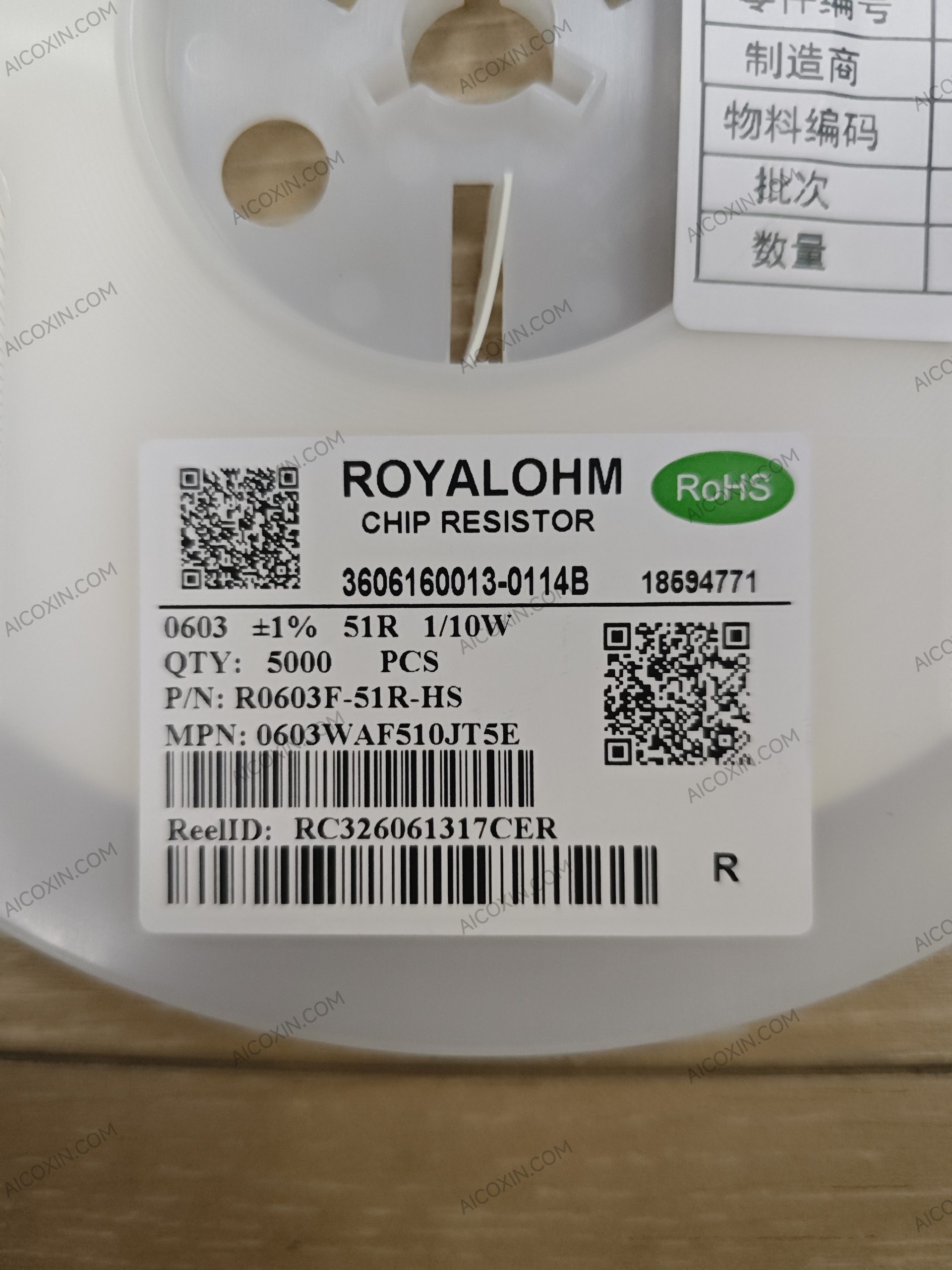

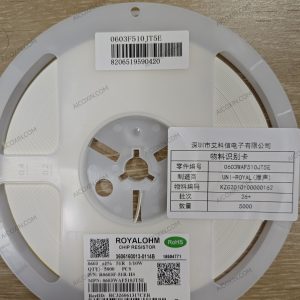

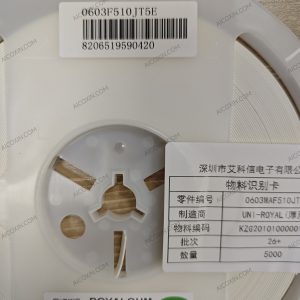

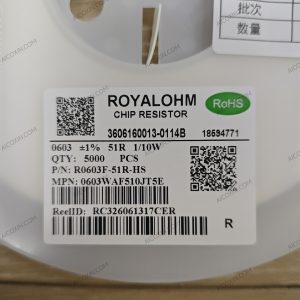

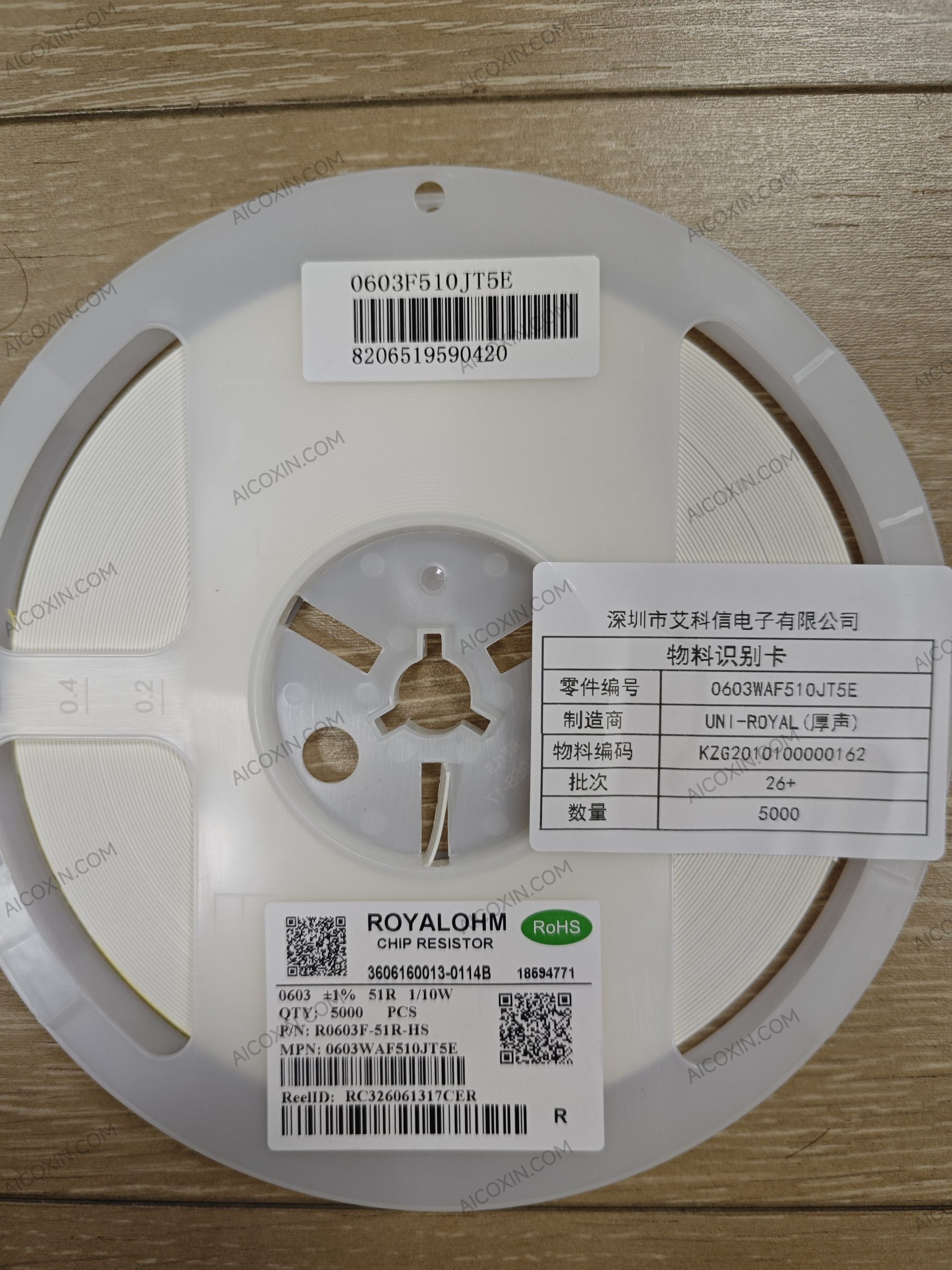

- Packaging: Paper Tape and Reel
- Standard Reel Quantity: 5,000 Pieces
- Compliance: RoHS Compliant and Halogen-Free
- Product Version: Standard Version
Typical Applications:
Suitable for consumer electronics, telecommunications equipment, mobile devices, industrial controls, instrumentation, and general electronic products. Typical circuit functions include current limiting, damping, biasing, voltage division, pull-up, pull-down, and signal conditioning.
