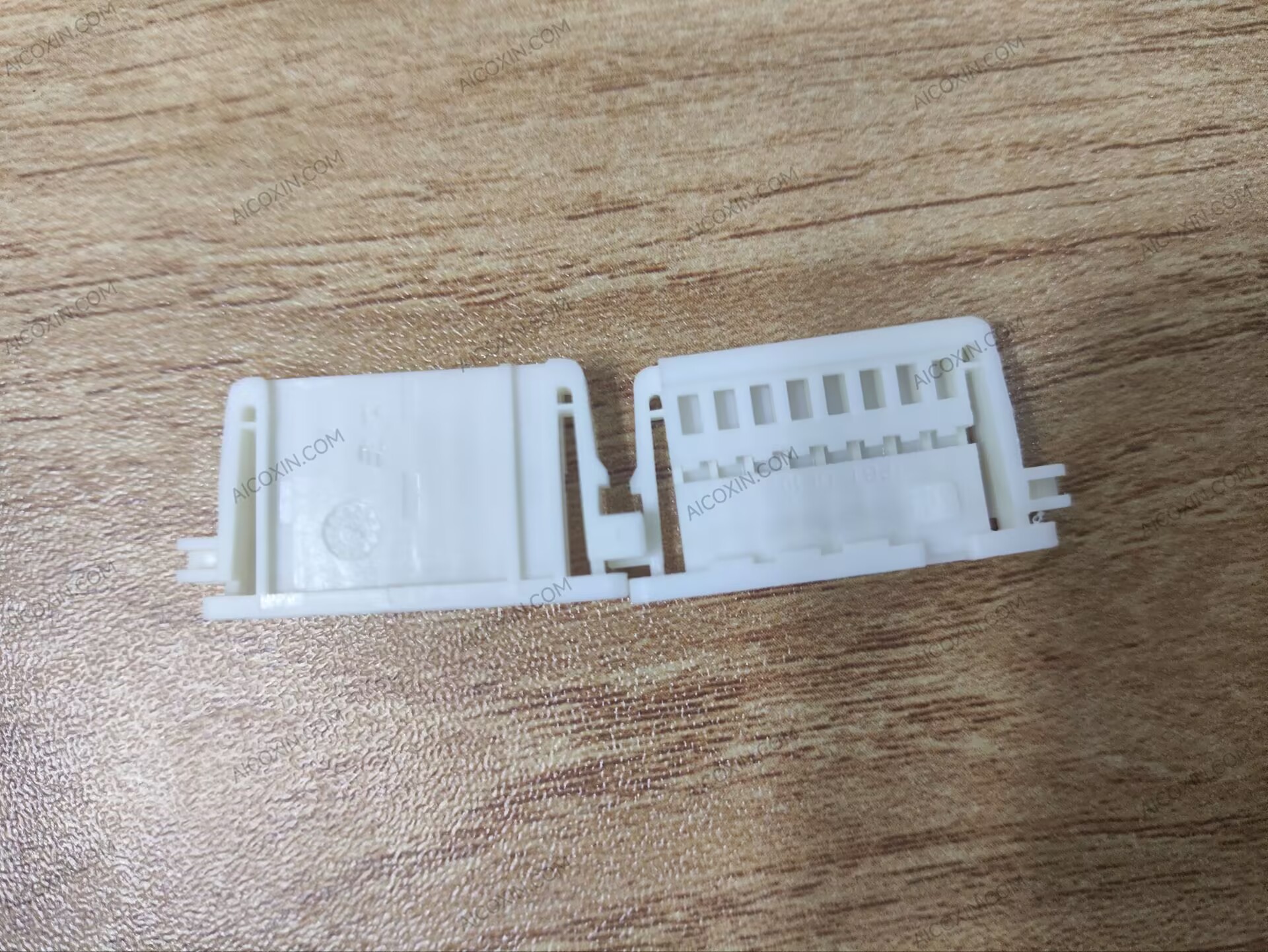

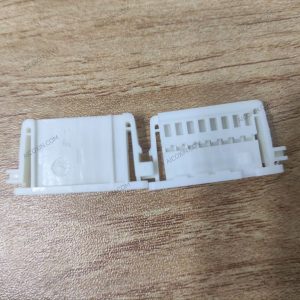

The 1743282-1 from TE Connectivity is an MQS automotive connector housing from the 0.64/025 Connector System. It provides an 8-position, single-row configuration with a 2.54mm centerline and is designed as a housing for female terminals in wire-to-board interconnect systems.
The rectangular housing is unsealed and supplied in a natural color. It uses keying code A and incorporates a locking-lance primary locking feature together with keyed mating alignment to help prevent incorrect connector mating.
The product is specified for a 12V nominal voltage architecture, with a maximum contact current rating of 7.5A. It supports 0.64mm receptacle contacts designed to mate with 0.64mm / 0.025-inch tabs.
The 1743282-1 is part of a wire-to-board connector system and uses a 180-degree cable-exit arrangement. Its mounting style is free-hanging, in-line, meaning the housing is used on the wire side rather than being directly mounted to the PCB.
The housing material is PBT GF15, a glass-filled thermoplastic. Official TE dimensions are approximately 29mm long, 16.7mm wide, and 6.5mm high, providing a compact format for automotive wiring-harness applications.
This housing does not include Terminal Position Assurance, strain relief, or Connector Position Assurance capability. Terminal crimp quality, mating engagement, wire selection, and application vibration requirements should therefore be considered when designing the complete interconnect assembly.

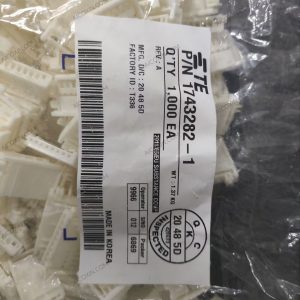

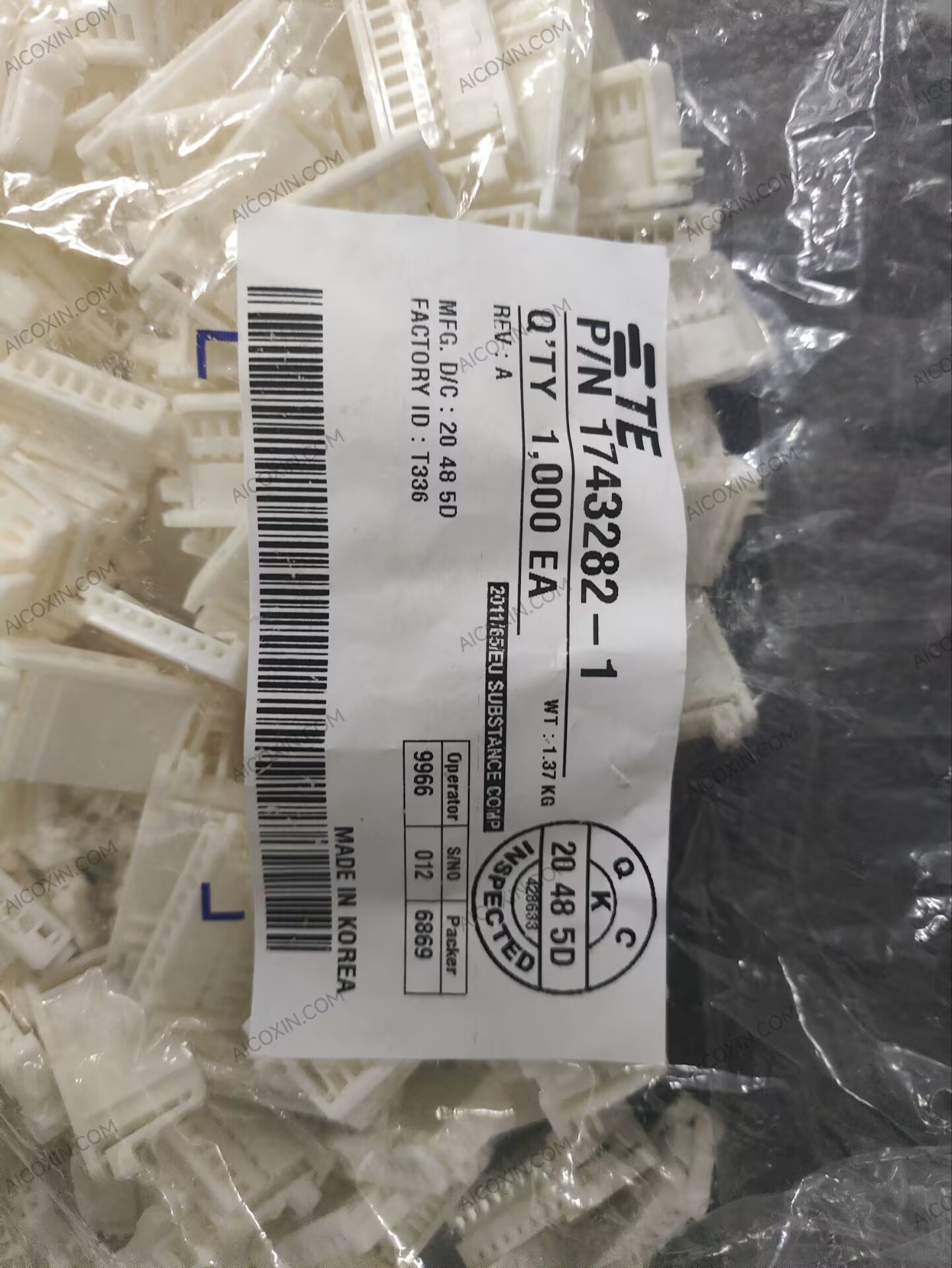

TE currently classifies the 1743282-1 as Active, although its product page states that the part is not currently available for direct purchase. Standard packaging is 1,000 pieces per bag.
Key Specifications
- Manufacturer: TE Connectivity
- Manufacturer Part Number: 1743282-1
- Internal Description: 8POS MQS REC COD A
- Product Family: MQS
- Connector System: 0.64/025 Connector System
- Product Type: Automotive Connector Housing
- Terminal Type: Female / Receptacle
- Connector System: Wire-to-Board
- Number of Positions: 8
- Number of Rows: 1
- Centerline Pitch: 2.54mm
- Contact Size: 0.64mm
- Mating Tab Width: 0.64mm
- Nominal Voltage Architecture: 12V
- Maximum Contact Current Rating: 7.5A
- Connector Shape: Rectangular
- Housing Color: Natural
- Keying Code: A
- Primary Locking Feature: Locking Lance
- Mating Alignment: Keyed
- Sealable: No
- Cable Exit Angle: 180°
- Mounting Type: Free-Hanging / In-Line
- Housing Material: PBT GF15
- Product Length: 29mm
- Product Width: 16.7mm
- Connector Height: 6.5mm
- Terminal Position Assurance: No
- Connector Position Assurance: No
- Strain Relief: No
- Circuit Application: Signal

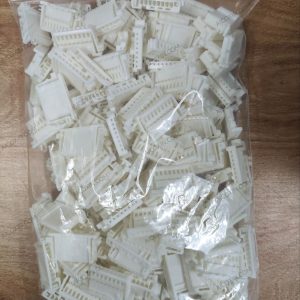

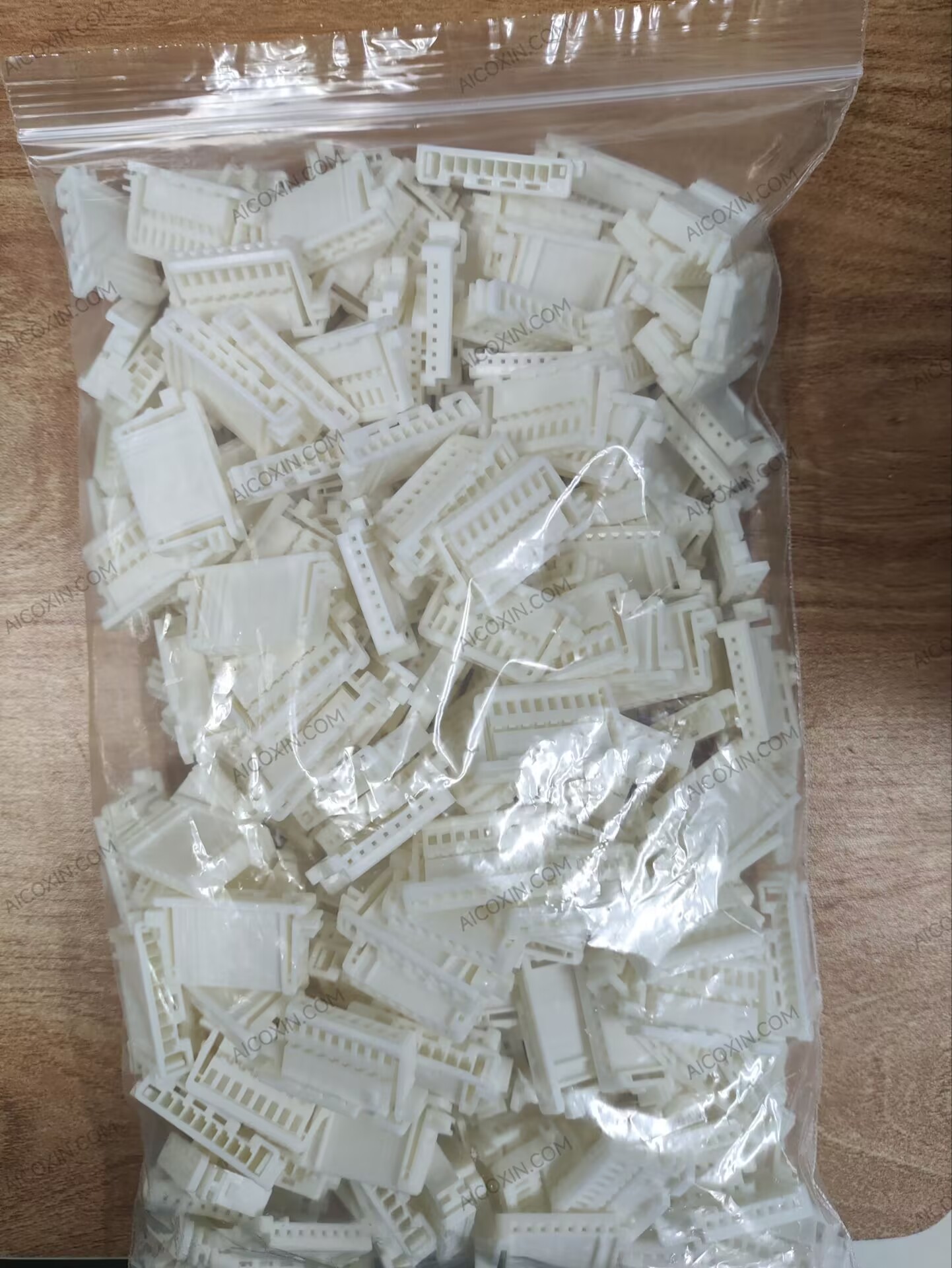

- Packaging Method: Bag
- Packaging Quantity: 1,000
- Product Status: Active
- Online Availability: Currently Not Available Directly
Typical Applications
Suitable for automotive wiring harnesses, body-control electronics, instrument systems, lighting controls, sensor connections, vehicle control modules, and other 12V low-voltage signal wire-to-board interconnects.
