The 502352-0900 from Molex is a DuraClik series wire-to-board header featuring a single-row, 9-circuit configuration with a 2.00mm pitch. Its right-angle surface-mount design includes mating-lock and polarization features for secure, correctly oriented connections in automotive, industrial, and signal applications.
The connector supports a maximum current of 3.0A per contact and a maximum voltage of 125V. Its contacts are made from copper alloy with tin plating at the mating interface, while the natural-colored housing is manufactured from polyamide material.
The 502352-0900 includes PCB-retention features to improve mechanical stability during assembly and operation. It has an approximate mated height of 6.40mm, a maximum durability rating of 30 mating cycles, and is compatible with lead-free reflow-soldering processes.

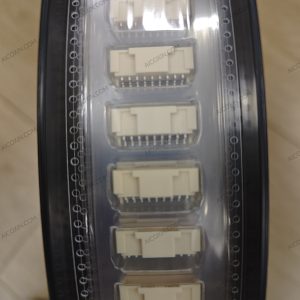

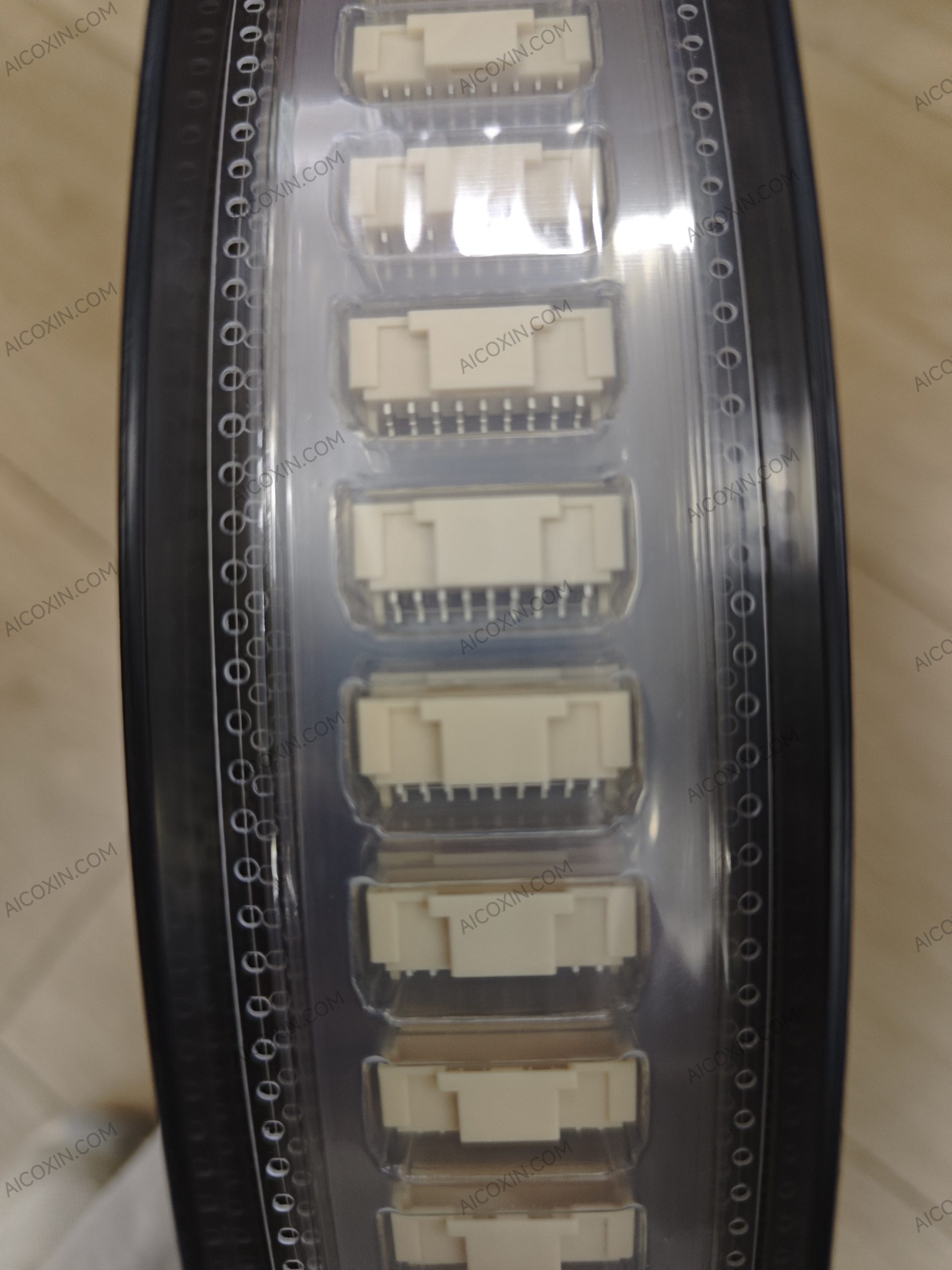

Its standard operating-temperature range is -40°C to +105°C. When used with selected DuraClik ISL or TPA mating systems, the complete connector system can support operation up to +125°C. The component is supplied on embossed tape and reel for automated SMT assembly.
The connector is compliant with EU RoHS and ELV requirements. Compatible housing families include the Molex 502351, 560123, and 505151 DuraClik series, subject to circuit count, terminal plating, and locking configuration.
Key Specifications:
- Manufacturer: Molex
- Manufacturer Part Number: 502352-0900
- Product Series: DuraClik 502352
- Component Type: Wire-to-Board PCB Header
- Connector Style: Shrouded Male Header
- Number of Circuits: 9
- Number of Rows: 1
- Mating Pitch: 2.00mm
- Termination Pitch: 2.00mm
- Orientation: Right Angle
- Mounting Type: Surface Mount
- Termination Style: Solder
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 125V
- Mating Contact Plating: Tin
- Contact Material: Copper Alloy
- Housing Material: Polyamide
- Housing Color: Natural
- Mated Height: Approximately 6.40mm
- Maximum Mating Cycles: 30
- Standard Operating Temperature: -40°C to +105°C
- Selected System Temperature: Up to +125°C
- PCB Retention: Yes
- Mating Lock: Yes
- Polarization: Yes

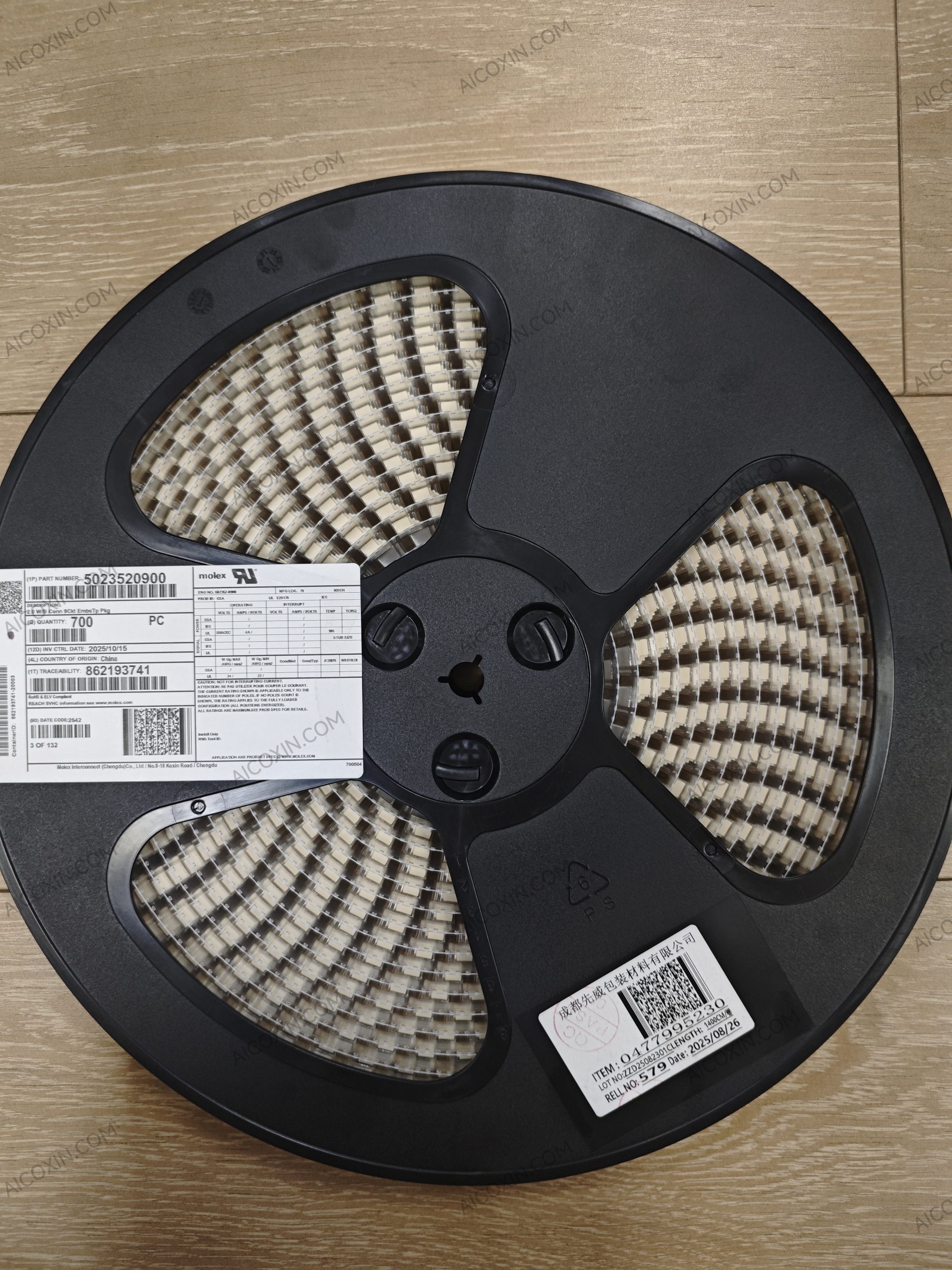

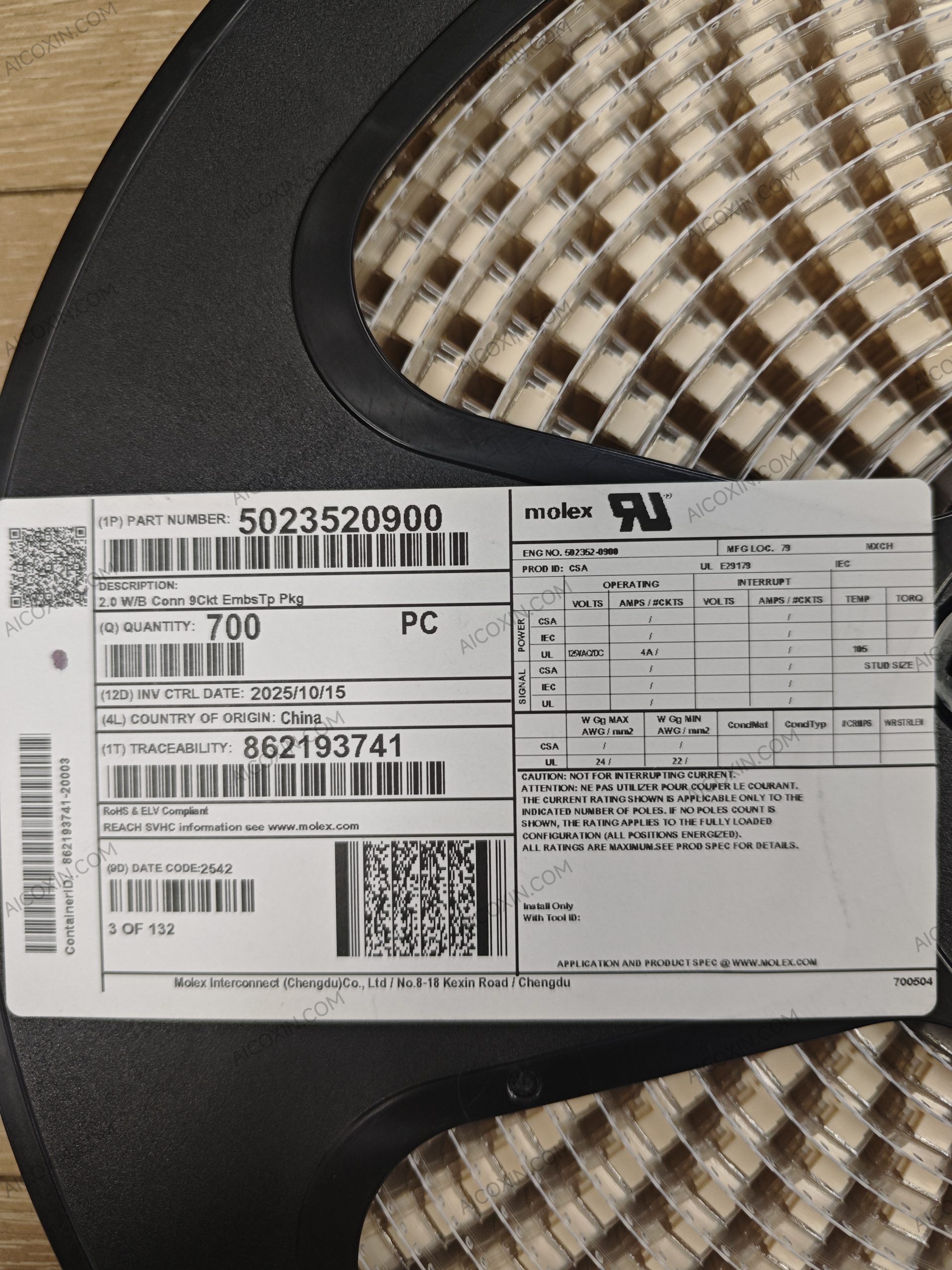

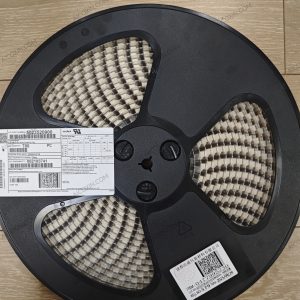

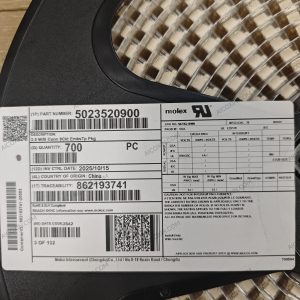

- Packaging: Embossed Tape and Reel
- Compliance: EU RoHS and ELV
Typical Applications:
Suitable for automotive body electronics, control modules, industrial equipment, sensor wiring, communication devices, consumer electronics, and other compact wire-to-board signal connections. Mating housing, crimp terminal, wire size, operating temperature, and load current should be confirmed in the final design.
