The 7M25000014 from TXC Corporation is a 7M-series surface-mount quartz crystal featuring a nominal frequency of 25MHz, an initial frequency tolerance of ±10ppm, frequency stability of ±10ppm, and a load capacitance of 18pF. As a passive crystal resonator, it operates with an internal or external oscillator circuit to provide a stable clock reference for microcontrollers, communication ICs, networking equipment, and digital systems.
The device is supplied in a compact 3.2 × 2.5mm 4-pad ceramic SMD package with an approximate height of 0.7mm. The TXC 7M series uses a ceramic seam-sealed construction designed for compact, high-density PCB applications requiring stable frequency performance.
At 25MHz, the crystal has a maximum equivalent series resistance of 50Ω, a typical drive level of 100μW, and a maximum shunt capacitance of 3pF. This specific part supports an operating temperature range from -10°C to +70°C.

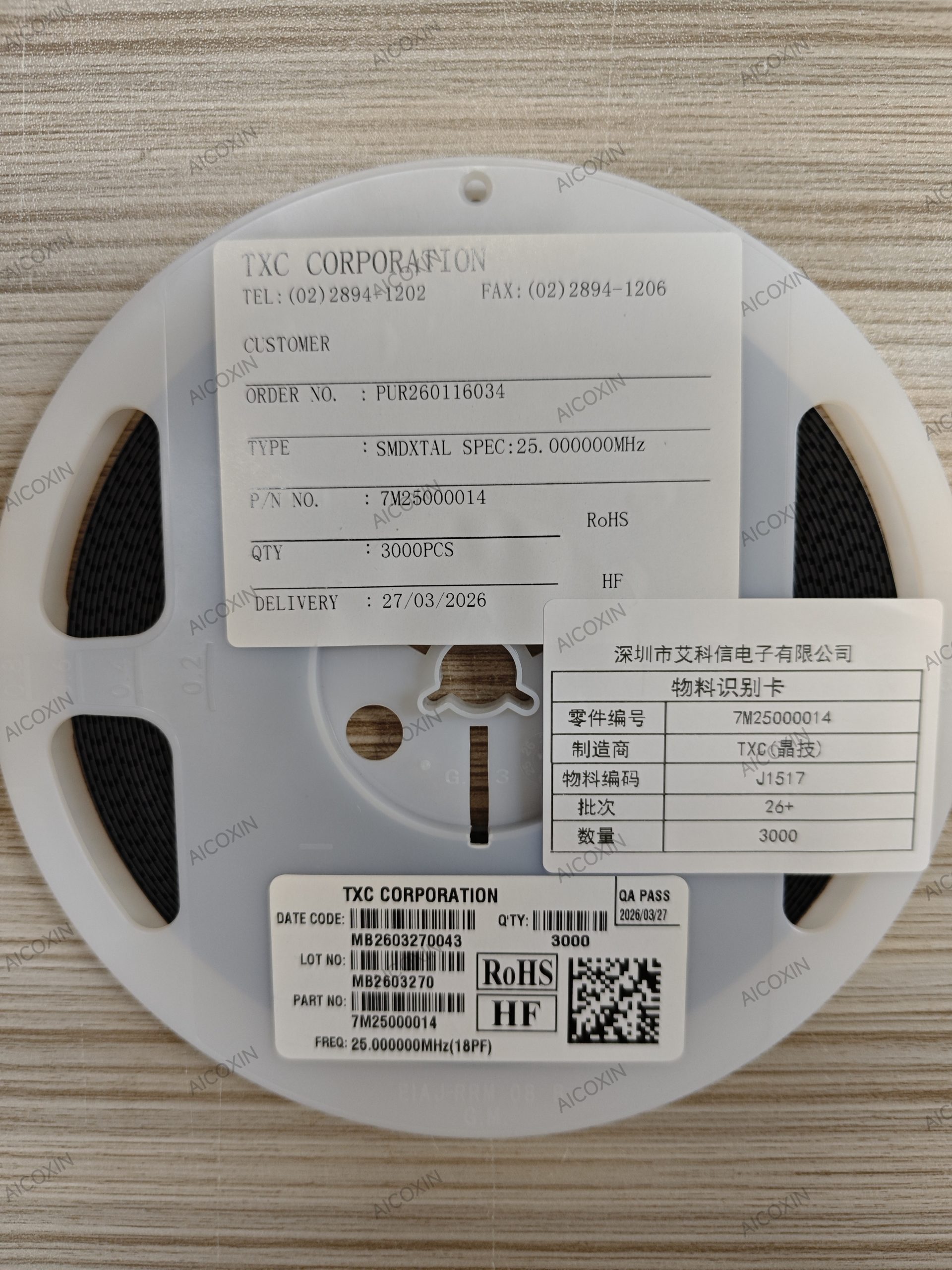

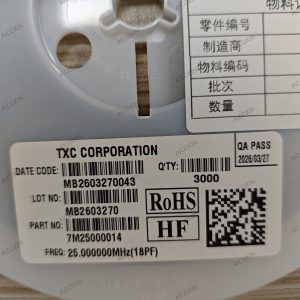

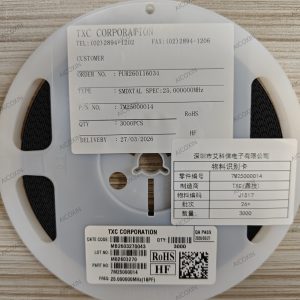

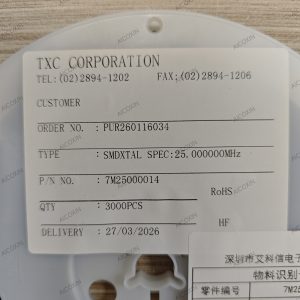

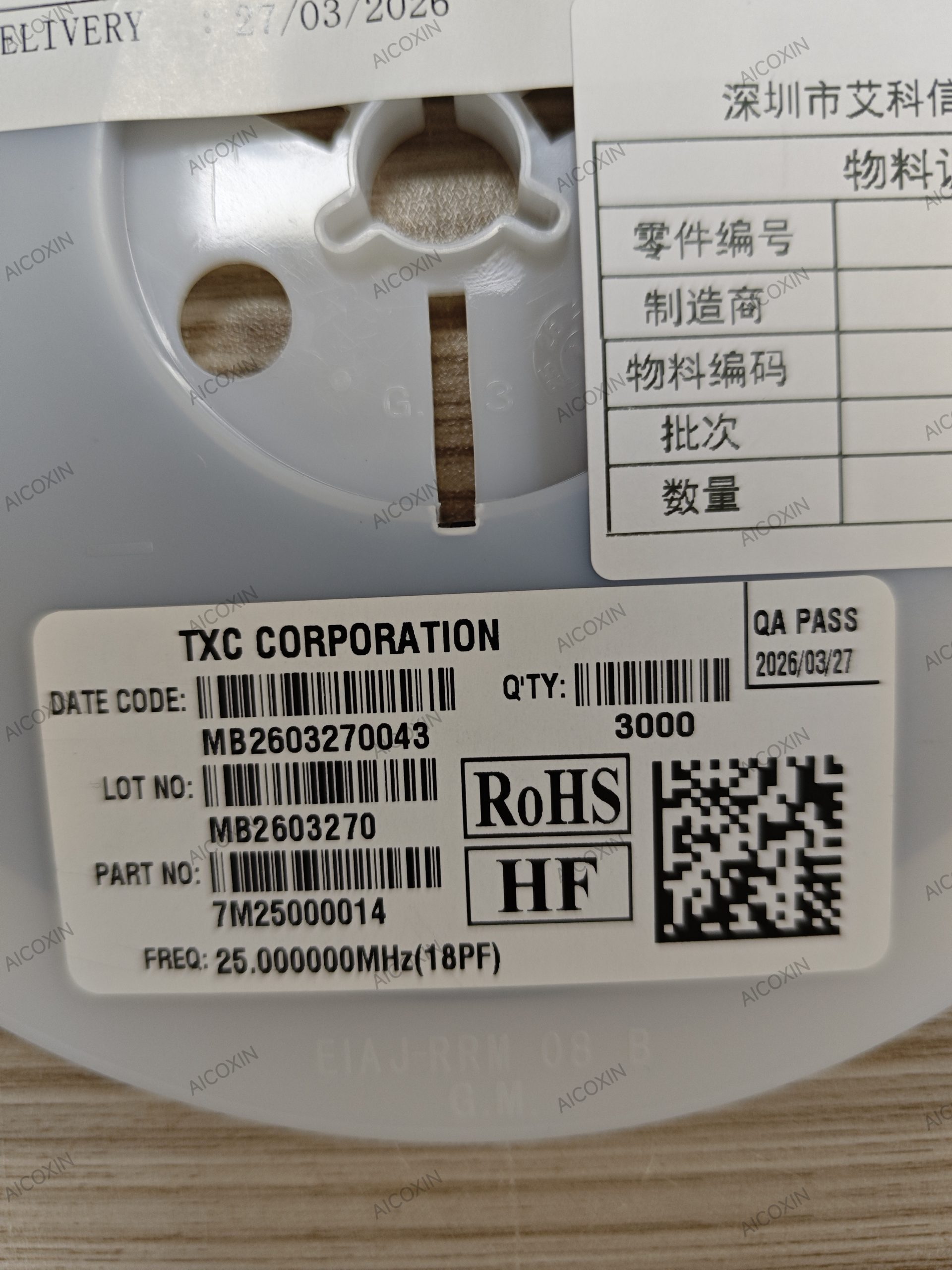

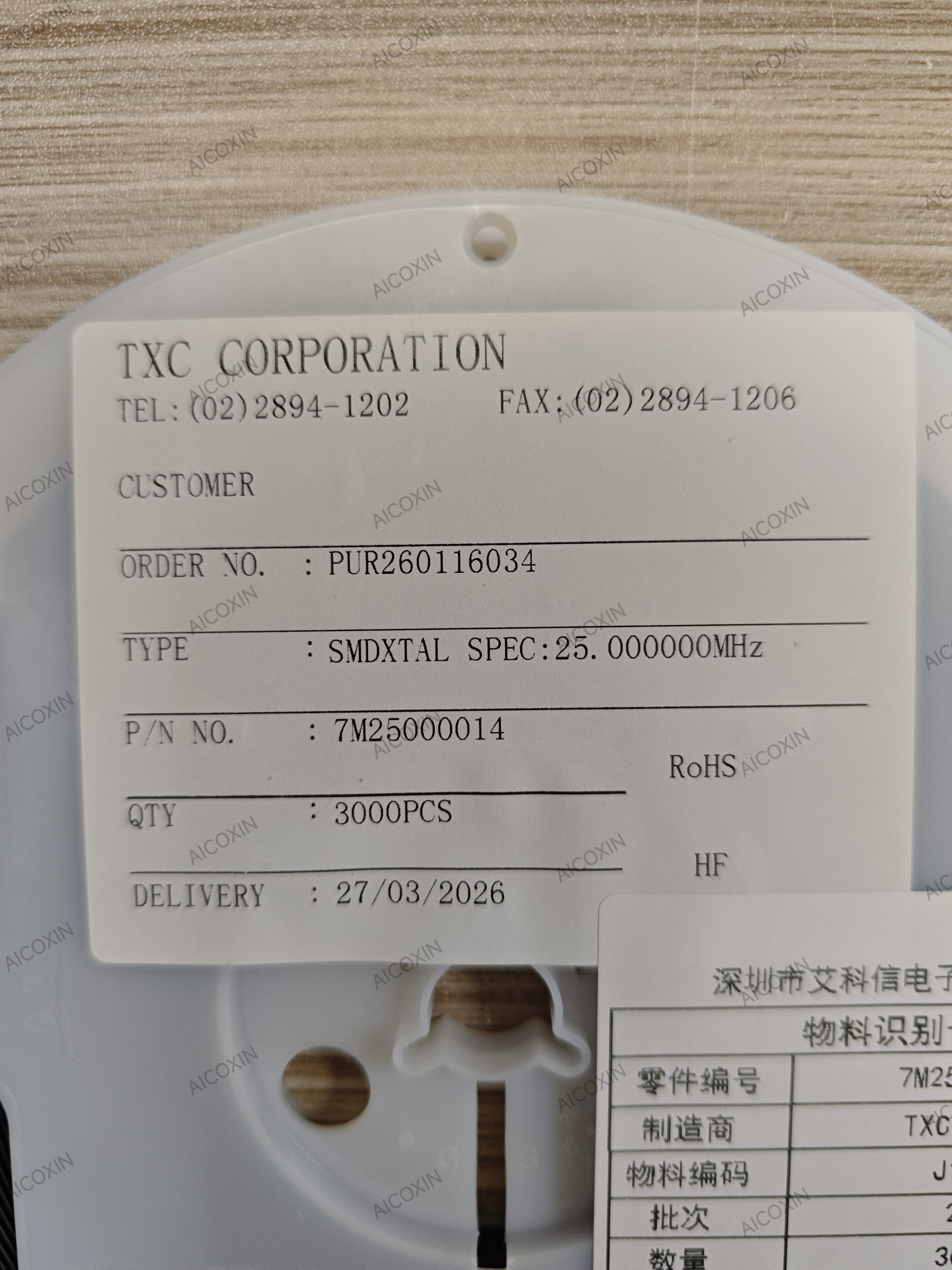

The component is supplied in tape-and-reel packaging with a standard factory quantity of 3,000 pieces per reel. It is suitable for automated surface-mount assembly and reflow soldering and is RoHS compliant and lead-free.
Key Specifications:
- Manufacturer: TXC Corporation
- Manufacturer Part Number: 7M25000014
- Product Series: 7M
- Component Type: Passive Quartz Crystal Resonator
- Nominal Frequency: 25MHz
- Frequency Tolerance: ±10ppm
- Frequency Stability: ±10ppm
- Load Capacitance: 18pF
- Equivalent Series Resistance: 50Ω Maximum
- Typical Drive Level: 100μW
- Drive-Level Range: 1 to 200μW
- Shunt Capacitance: 3pF Maximum
- Operating Temperature: -10°C to +70°C
- Package Size: 3.2 × 2.5mm / 3225
- Package Height: Approximately 0.7mm
- Package Type: 4-SMD, No Lead
- Mounting Type: Surface Mount
- Packaging: Tape and Reel
- Factory Pack Quantity: 3,000 Pieces
- Compliance: RoHS Compliant and Lead-Free
Typical Applications:
Suitable for routers, network switches, wireless modules, Bluetooth devices, wireless LAN equipment, microcontroller systems, computer peripherals, displays, consumer electronics, and other digital circuits requiring a 25MHz reference clock. Oscillator compatibility, load-capacitance matching, PCB layout, and drive level should be verified in the final design.
