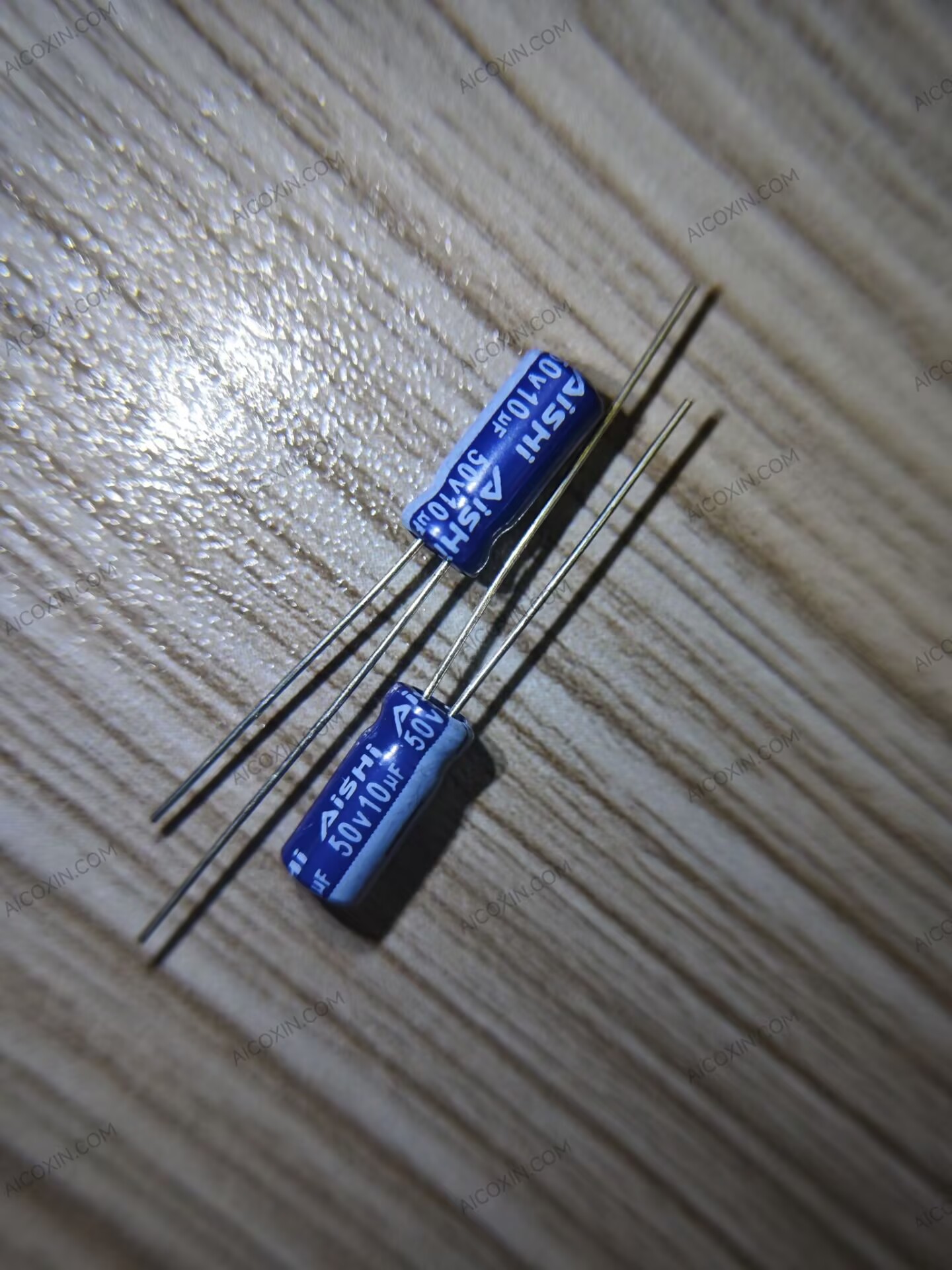

The ERM1HM100D11OT is a long-life radial aluminum electrolytic capacitor manufactured by AISHI (Aihua Group). Belonging to the RM series, this through-hole capacitor features a capacitance of 10µF, a rated voltage of 50V DC, and a capacitance tolerance of ±20%, providing reliable energy storage and filtering performance for various electronic circuit applications.
Designed with a compact 5×11mm cylindrical body and a 2.0mm lead spacing, the ERM1HM100D11OT is suitable for through-hole PCB assembly. With an operating temperature range of -40°C to +105°C and a rated endurance of 10,000 hours at 105°C, it is designed for applications requiring extended service life and stable electrical performance.
The capacitor supports a rated ripple current of 90mA at 105°C and 100kHz, making it suitable for power supply filtering, voltage smoothing, and general-purpose electronic circuits.
Key Features:
- Manufacturer: AISHI (Aihua Group)
- Part Number: ERM1HM100D11OT
- Product Series: RM Series
- Capacitor Type: Aluminum Electrolytic Capacitor
- Capacitance: 10µF
- Capacitance Tolerance: ±20%
- Rated Voltage: 50V DC
- Body Dimensions: 5mm Diameter × 11mm Length
- Lead Spacing: 2.0mm
- Lead Diameter: 0.5mm
- Rated Ripple Current: 90mA (105°C, 100kHz)
- Operating Temperature: -40°C to +105°C
- Rated Endurance: 10,000 Hours at 105°C
- Dissipation Factor (tanδ): 0.19 Max. (20°C, 120Hz)
- Mounting Type: Through Hole (THT)
- Terminal Configuration: Radial Leads
- Polarity: Polarized
- RoHS Compliance: RoHS Compliant
- Packaging: Bulk / Bag
Typical Applications:
- Power supply filtering circuits
- DC voltage smoothing
- Consumer electronic devices
- Industrial control equipment
- Electronic power management systems
- General-purpose electronic circuits
- Through-hole PCB assemblies
The AISHI ERM1HM100D11OT combines compact dimensions, long-life construction, and dependable aluminum electrolytic capacitor technology. Its 10,000-hour rated endurance at 105°C makes it a practical choice for electronic manufacturers, design engineers, and component procurement professionals seeking reliable through-hole capacitor solutions.
