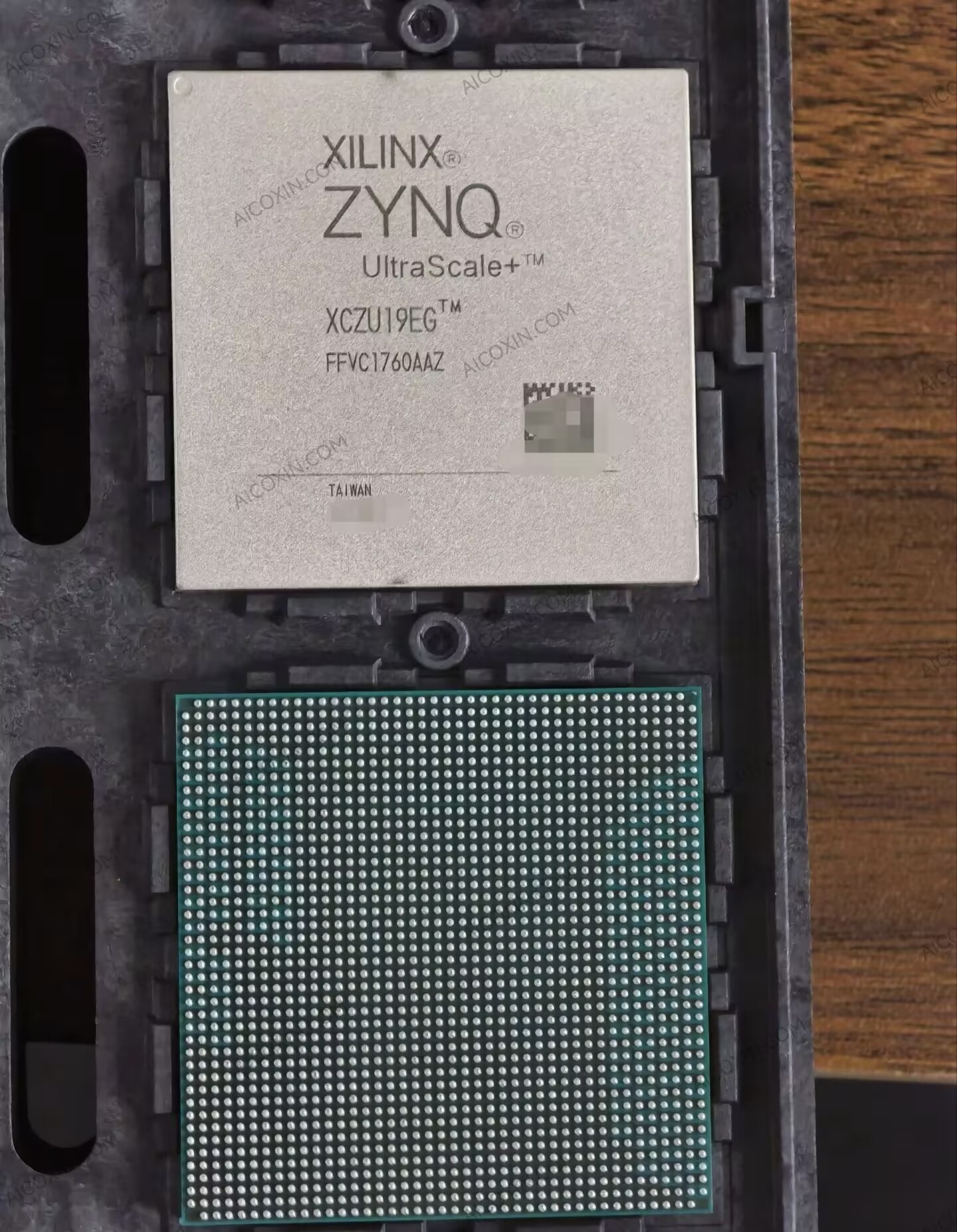

The AMD Xilinx XCZU19EG-2FFVC1760E is a high-performance Zynq UltraScale+ MPSoC EG device combining a multicore Arm processing system, graphics engine, and large-scale FPGA programmable logic in a single device. The XCZU19EG integrates a quad-core Arm Cortex-A53 application processing unit, dual-core Cortex-R5F real-time processing unit, and Arm Mali-400 MP2 GPU with 16nm FinFET+ programmable logic.
This orderable device uses the -2 speed grade. According to AMD’s current DS925 specifications, the -2 grade supports a maximum 1.333GHz APU clock, 533MHz RPU clock, and 600MHz GPU clock. The processing system also includes 256KB of on-chip memory and supports external DDR4, LPDDR4, DDR3, DDR3L, and LPDDR3 memory.
The XCZU19EG provides approximately 1,143,450 system logic cells, 523K CLB LUTs, and 1,968 DSP slices. Memory resources include approximately 9.8Mb distributed RAM, 34.6Mb block RAM, and 36Mb UltraRAM, for approximately 80.4Mb total programmable-logic RAM. These resources support highly parallel signal processing, embedded acceleration, networking, and high-bandwidth computing applications.
Integrated processing-system connectivity includes PCIe Gen1/2, SATA 3.1, DisplayPort 1.2a, USB 3.0, SGMII, Gigabit Ethernet, UART, CAN, I²C, SPI, USB 2.0, and GPIO. The programmable logic also provides high-speed GTH/GTY transceivers and integrated PCI Express resources for demanding data-processing and communication designs.
The XCZU19EG-2FFVC1760E is supplied in an FFVC1760 1760-ball flip-chip BGA package measuring approximately 42.5 × 42.5mm with a 1.0mm ball pitch. The E suffix identifies the Extended temperature grade, specified for a junction temperature range of 0°C to +100°C, while the V package designation indicates RoHS 6/6 compliance.
Key Features:
- Manufacturer: AMD Xilinx
- Part Number: XCZU19EG-2FFVC1760E
- Family: Zynq UltraScale+ MPSoC
- Device: ZU19EG
- Device Type: Programmable MPSoC
- Process Technology: 16nm FinFET+
- APU: Quad-Core Arm Cortex-A53
- Maximum APU Frequency: 1.333GHz
- RPU: Dual-Core Arm Cortex-R5F
- Maximum RPU Frequency: 533MHz
- GPU: Arm Mali-400 MP2
- Maximum GPU Frequency: 600MHz
- System Logic Cells: 1,143,450
- CLB LUTs: Approx. 523K
- DSP Slices: 1,968
- Distributed RAM: Approx. 9.8Mb
- Block RAM: Approx. 34.6Mb
- UltraRAM: 36Mb
- Total PL RAM: Approx. 80.4Mb
- On-Chip Memory: 256KB with ECC
- Memory Support: DDR4 / LPDDR4 / DDR3 / DDR3L / LPDDR3
- Interfaces: PCIe, SATA, DisplayPort, USB, Ethernet, UART, CAN, I²C and SPI
- Package: FFVC1760 / 1760-Ball FCBGA
- Package Size: 42.5 × 42.5mm
- Ball Pitch: 1.0mm
- Speed Grade: -2
- Temperature Grade: Extended (E)
- Junction Temperature: 0°C to +100°C
- RoHS 6/6 Compliant.
