The CC0402JRNPO9BN180 from YAGEO is a surface-mount multilayer ceramic capacitor featuring a capacitance of 18pF, a rated voltage of 50V DC, and a capacitance tolerance of ±5%. Its C0G/NP0 temperature characteristic makes it suitable for filtering, coupling, oscillation, resonance, and other general-purpose electronic circuit applications.
This MLCC is supplied in a compact 0402 / 1005 metric package with approximate dimensions of 1.0 × 0.5 × 0.5mm. It supports an operating temperature range from -55°C to +125°C, features tin terminations, and is RoHS compliant, halogen-free, and rated at MSL 1 for automated PCB assembly.
Key Specifications:
- Manufacturer: YAGEO
- Manufacturer Part Number: CC0402JRNPO9BN180
- Component Type: Multilayer Ceramic Capacitor, MLCC
- Capacitance: 18pF
- Capacitance Tolerance: ±5%
- Rated Voltage: 50V DC
- Temperature Coefficient: C0G/NP0
- Package: 0402 / 1005 Metric
- Dimensions: 1.0 × 0.5 × 0.5mm
- Operating Temperature: -55°C to +125°C
- Dissipation Factor: 0.13%
- Insulation Resistance: 10GΩ
- Termination Material: Tin

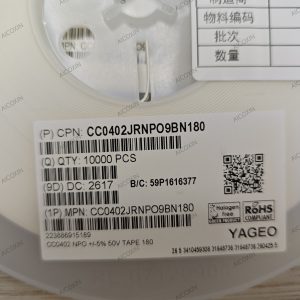

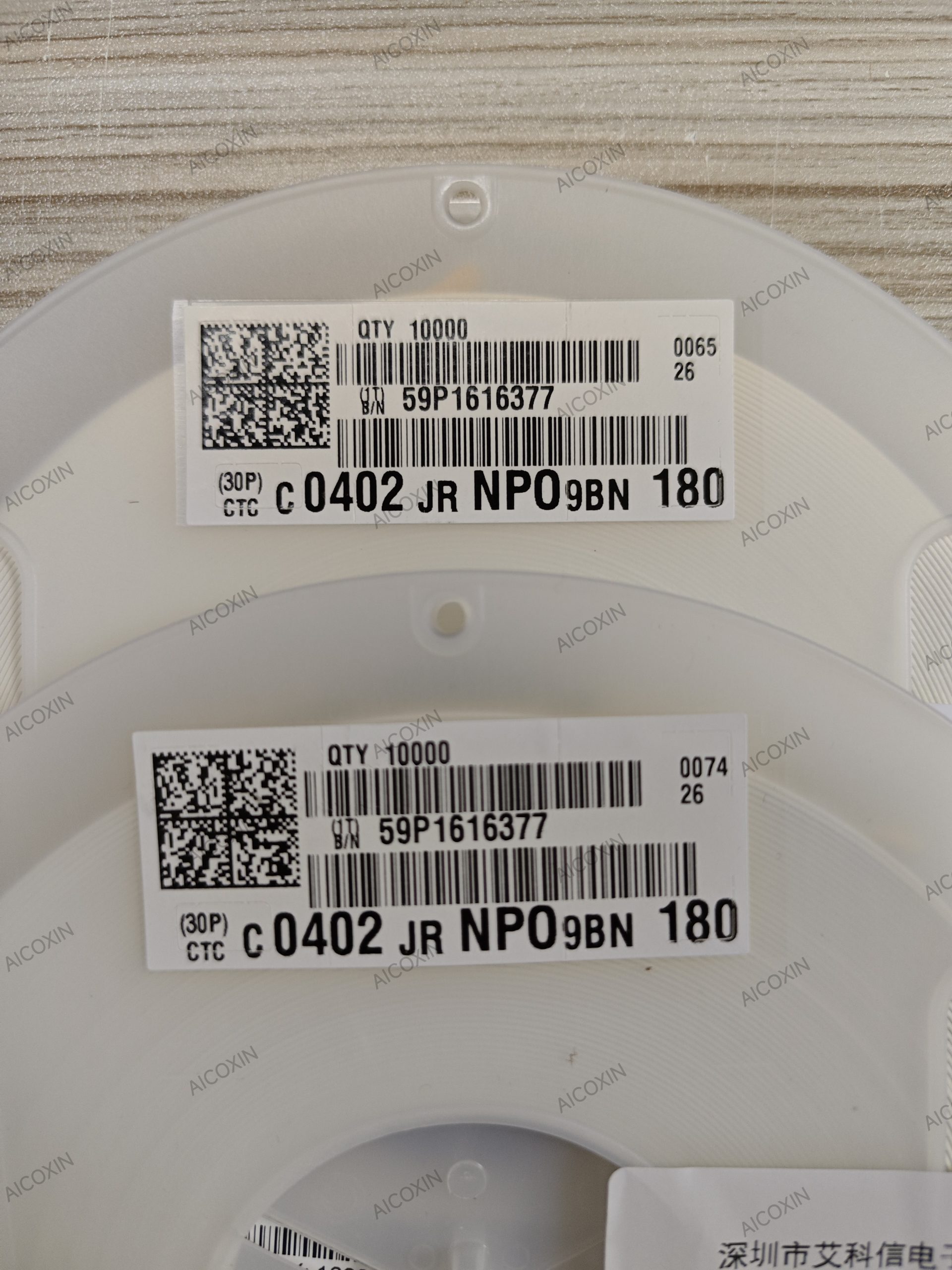

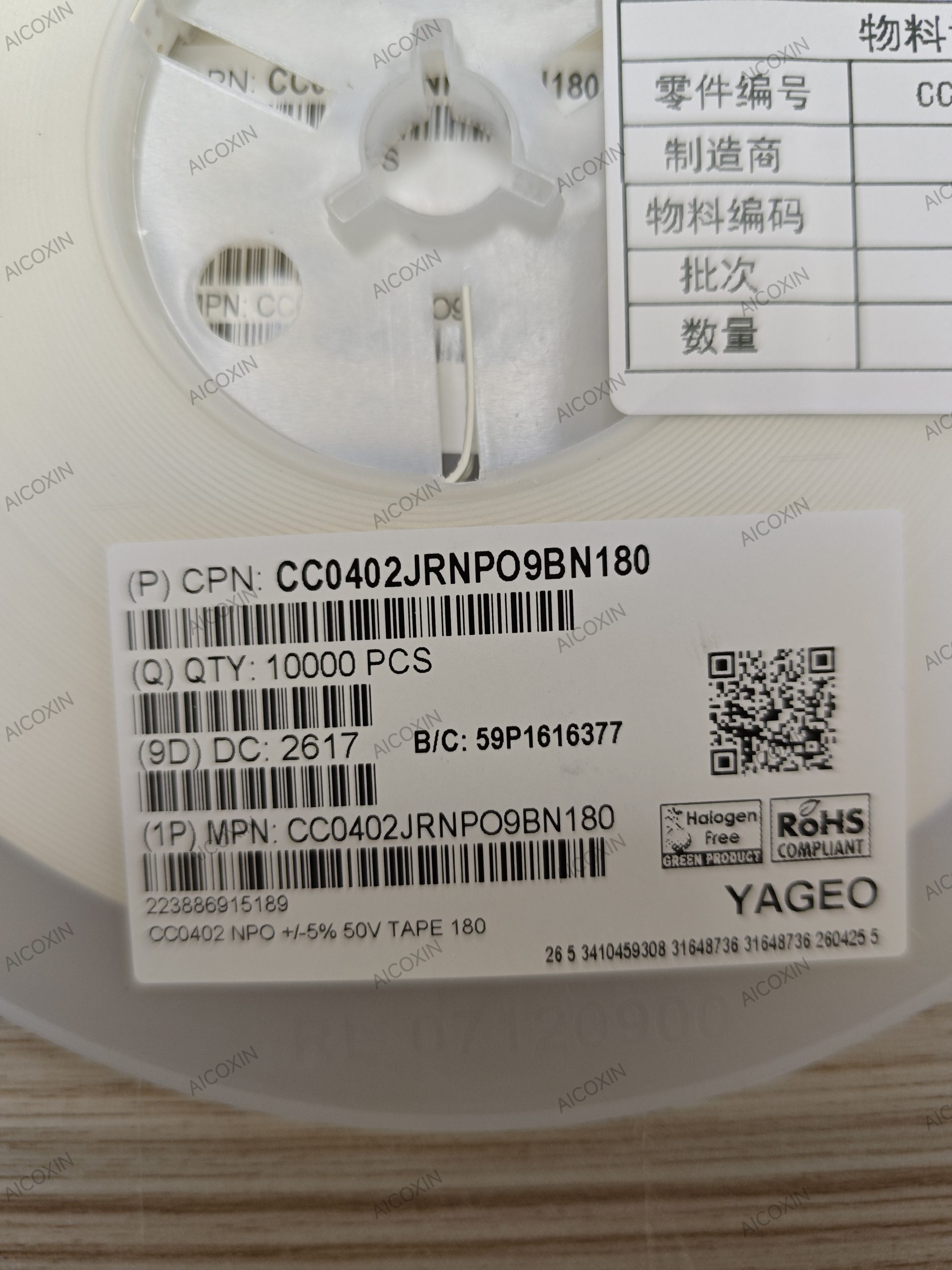

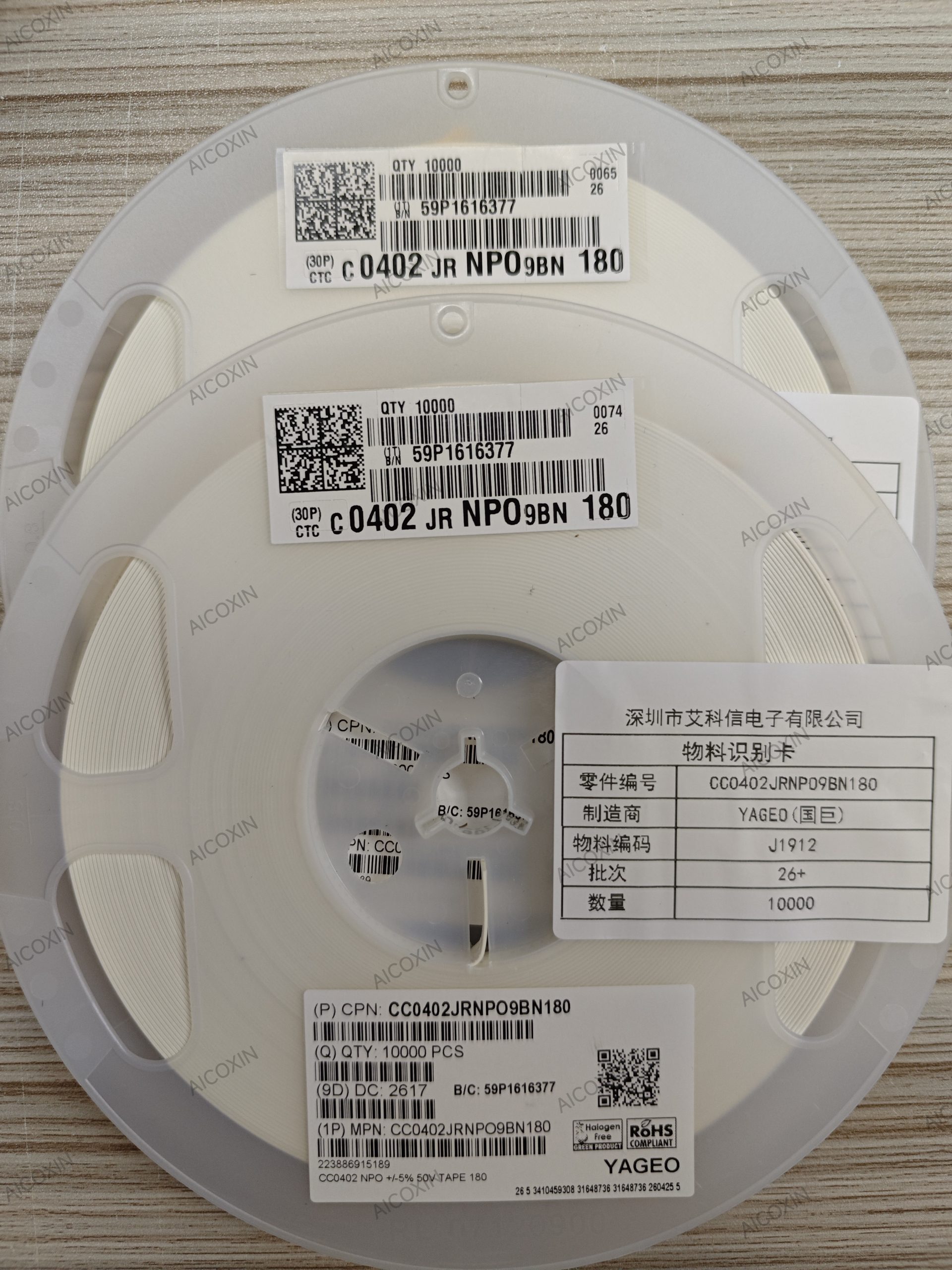

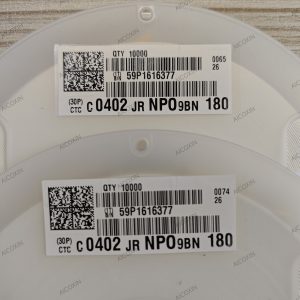

- Packaging: Paper Tape and Reel
- Standard Reel Quantity: 10,000 Pieces
- Compliance: RoHS and Halogen-Free
- Moisture Sensitivity Level: MSL 1
Typical Applications:
Suitable for consumer electronics, communication equipment, industrial controls, instrumentation, power management, RF circuits, clock oscillators, filtering, and impedance-matching circuits. Final suitability should be verified according to the operating voltage, frequency, temperature, and circuit requirements.
