The Diodes Incorporated SBR05U20LPS-7 is a surface-mount rectifier based on patented SBR® Super Barrier Rectifier technology. It combines ultra-low forward voltage drop, strong reverse-avalanche capability, and soft, fast switching performance. The device is rated for 0.5A average rectified current and 20V peak repetitive reverse voltage, making it suitable for compact and efficient low-voltage power designs.
At TA = 25°C and IF = 0.5A, the device has a maximum forward voltage drop of 0.50V. Maximum reverse leakage current is 50µA at VR = 20V and 25°C, while non-repetitive peak forward surge current reaches 6A.
The SBR05U20LPS-7 operates over a -65°C to +150°C junction and storage temperature range. Typical applications specified by Diodes Incorporated include SMPS, DC-DC converters, freewheeling diodes, and reverse-polarity protection.

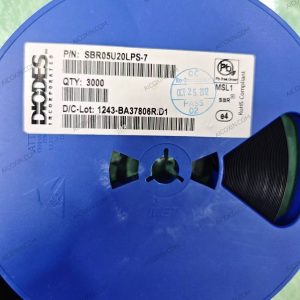

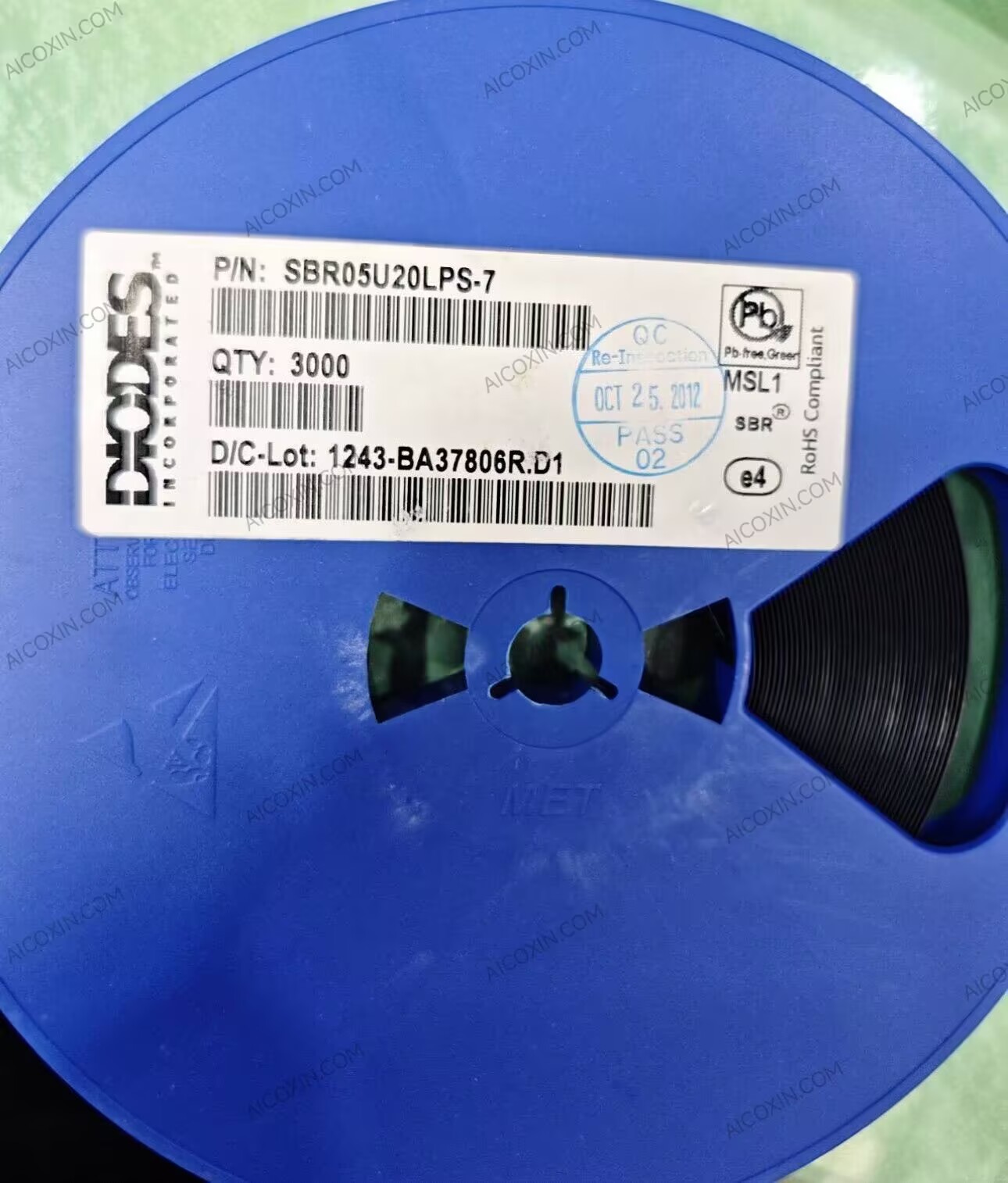

The device comes in an ultra-compact X2-DFN1006-2 package with typical dimensions of approximately 1.0 × 0.6 × 0.37mm. It is MSL Level 1 rated, uses NiPdAu-finished terminals, and is RoHS compliant, halogen free, and antimony free. The -7 orderable version is supplied on tape and reel with 3,000 devices per reel.
Key Features:
- Manufacturer: Diodes Incorporated
- Part Number: SBR05U20LPS-7
- Device Type: Super Barrier Rectifier
- Configuration: Single
- Peak Repetitive Reverse Voltage: 20V
- Working Peak Reverse Voltage: 20V
- DC Blocking Voltage: 20V
- RMS Reverse Voltage: 14V
- Average Rectified Current: 0.5A
- Maximum Forward Voltage: 0.50V @ 0.5A, 25°C
- Maximum Reverse Leakage: 50µA @ 20V, 25°C
- Peak Forward Surge Current: 6A
- Maximum Thermal Resistance: 224°C/W
- Operating / Storage Temperature: -65°C to +150°C
- Package: X2-DFN1006-2
- Typical Package Size: 1.0 × 0.6 × 0.37mm
- Mounting Type: Surface Mount
- MSL: Level 1
- Terminal Finish: NiPdAu
- Packaging: Tape & Reel
- Reel Quantity: 3,000 pcs
- RoHS Compliant
- Halogen and Antimony Free.
