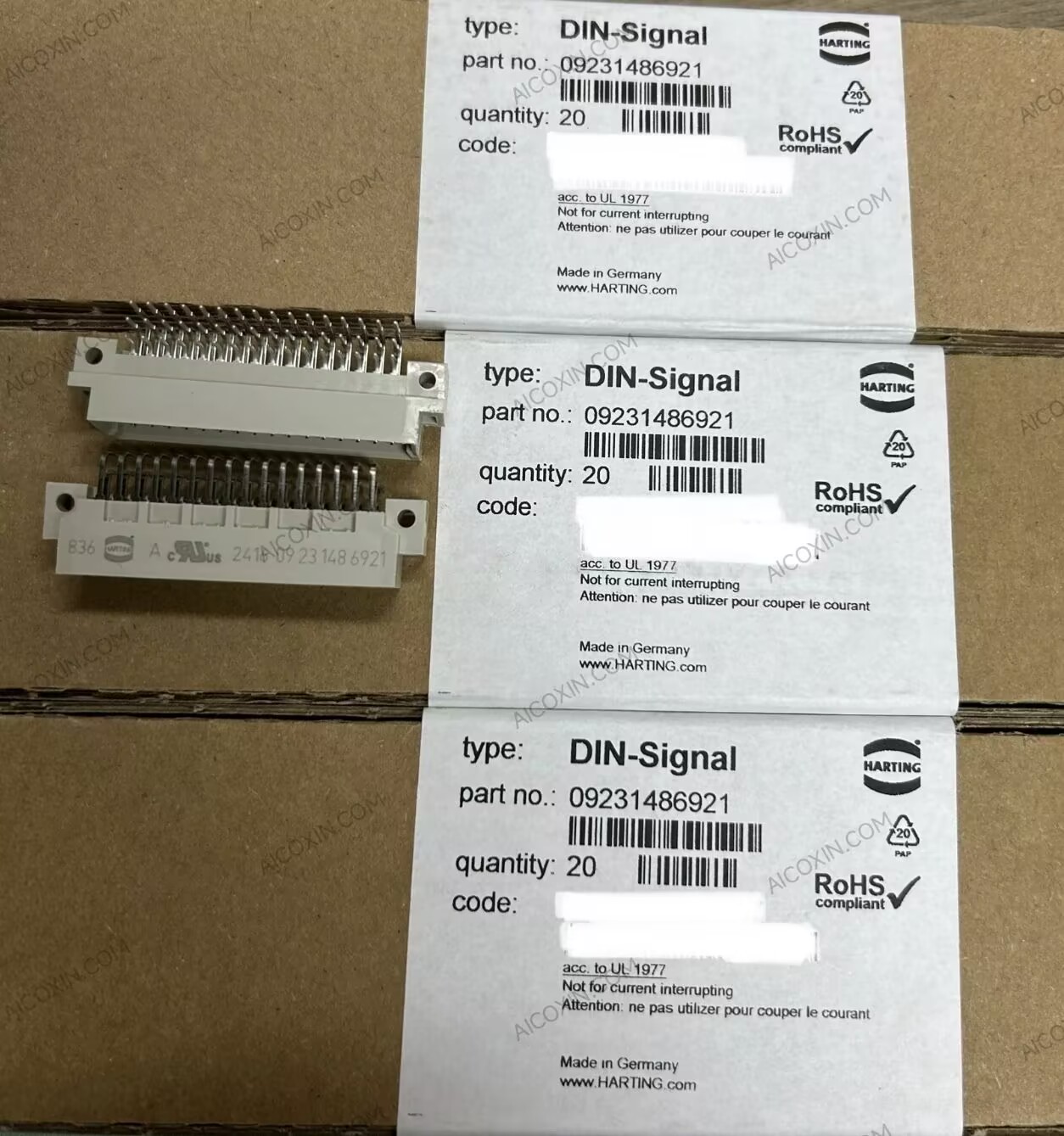

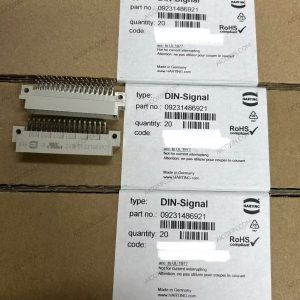

The 09231486921, also identified as 09 23 148 6921, is a DIN 41612 Type 2C male PCB connector from HARTING with the official designation DIN-Signal 2C048MS-1C1-2. It provides 48 angled male contacts for motherboard-to-daughtercard, extender-card and PCB-to-cable interconnections.
The connector uses a three-row contact configuration, with contacts arranged in rows a, b and c at positions 1 through 16. Contact pitch is 2.54mm on both the mating and termination sides. It uses wave-solder termination and includes a fixing flange for secure PCB mounting.
Electrical specifications include a 2A rated current at 20°C, maximum 20mΩ contact resistance, insulation resistance greater than 10¹²Ω, and a 1kVrms test voltage. Minimum clearance and creepage distances are both 1.2mm. HARTING does not separately specify a rated operating voltage on the official product page.
The connector meets Performance Level 2 according to IEC 60603-2 and is rated for 400 mating cycles. Maximum insertion force is 45N, maximum withdrawal force is 30N, and the limiting temperature range is -55°C to +125°C. Hot plugging is not supported.
Contacts are manufactured from copper alloy, with Au over NiP over Ni on the mating side and Sn over Ni on the termination side. The glass-fiber-filled thermoplastic insert is RAL 7032 pebble grey and meets UL 94 V-0 requirements. The product is RoHS, REACH and ELV compliant and carries UL 1977 and CSA-C22.2 No.182.3 approvals. Standard packaging is 20 pieces.
Key Specifications:
- Brand: HARTING
- Part Number: 09231486921 / 09 23 148 6921
- Official Name: DIN-Signal 2C048MS-1C1-2
- Series: DIN 41612
- Type: Type 2C
- Product Type: PCB Connector
- Gender: Male
- Contact Style: Angled / Right-Angle
- Number of Contacts: 48
- Contact Rows: 3
- Rows Used: a / b / c
- Contact Positions: 1 to 16
- Contact Pitch: 2.54mm
- Connection Type: Motherboard to Daughtercard / Extender Card / PCB to Cable
- Termination: Wave Solder
- PCB Fixing: Fixing Flange
- Coding: Coding with Loss of Contacts
- Rated Current: 2A @ 20°C
- Contact Resistance: ≤20mΩ
- Insulation Resistance: >10¹²Ω
- Test Voltage: 1kVrms
- Clearance Distance: ≥1.2mm
- Creepage Distance: ≥1.2mm
- Performance Level: 2
- Standard: IEC 60603-2
- Mating Cycles: ≥400
- Insertion Force: ≤45N
- Withdrawal Force: ≤30N
- Limiting Temperature: -55°C to +125°C
- Hot Plugging: No
- Isolation Group: IIIa
- Contact Material: Copper Alloy
- Mating-Side Finish: Au over NiP over Ni
- Termination-Side Finish: Sn over Ni
- Insert Material: Glass-Fiber-Filled Thermoplastic
- Insert Color: RAL 7032 Pebble Grey
- Flammability Rating: UL 94 V-0
- RoHS Compliant: Yes
- REACH Compliant: Yes
- ELV Compliant: Yes
- UL Approval: UL 1977
- CSA Approval: CSA-C22.2 No.182.3
- Packaging Quantity: 20 pcs
- Net Weight: Approx. 5g.
