The BSC093N15NS5 from Infineon is an OptiMOS™ 5 N-channel power MOSFET designed for high-efficiency power switching. It features a 150V drain-source voltage rating and a maximum continuous drain current of 87A at TC=25°C, making it suitable for demanding power-conversion and switching applications.
The device provides a maximum RDS(on) of 9.3mΩ at VGS=10V and ID=44A, combined with a typical total gate charge of 33nC. Typical input capacitance is 2430pF, while typical output capacitance is 604pF, helping balance low conduction loss with efficient switching performance.
The BSC093N15NS5 also features low reverse-recovery characteristics, with a typical Qrr of 58nC and typical trr of 49ns, making it well suited for high-frequency switching and synchronous rectification. It supports up to 348A pulsed drain current, 130mJ single-pulse avalanche energy, and a ±20V gate-source voltage range.

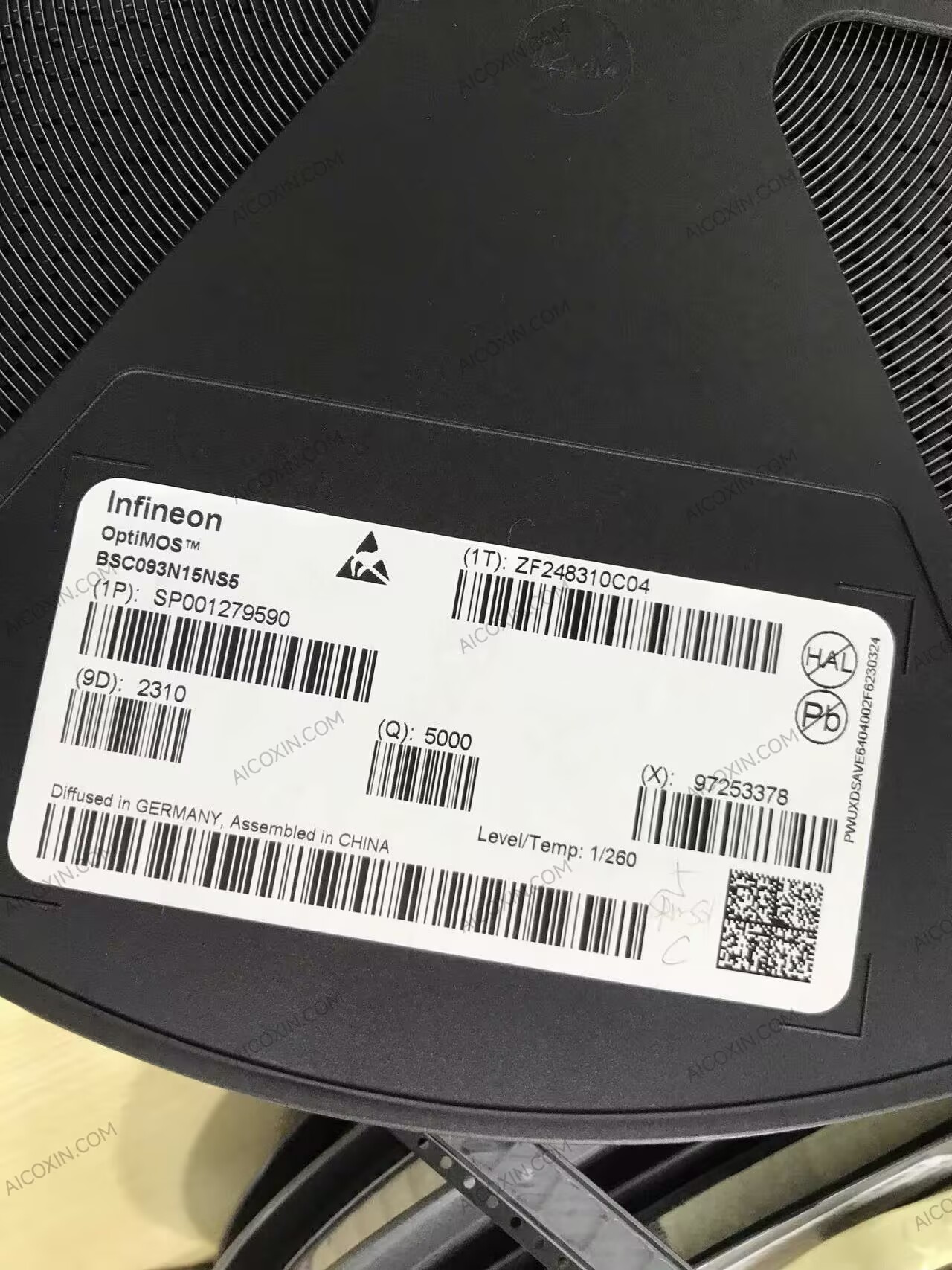

Housed in a compact SuperSO8 5×6 / PG-TDSON-8 surface-mount package, the device operates from -55°C to +150°C and supports up to 139W power dissipation. Infineon highlights its OptiMOS™ 5 150V portfolio for applications including low-voltage drives, forklifts, e-scooters, telecom and solar systems. The BSC093N15NS5ATMA1 ordering option is supplied in 5000-piece tape-and-reel packaging.
Key Specifications:
- Brand: Infineon
- Part Number: BSC093N15NS5
- Ordering Part Number: BSC093N15NS5ATMA1
- Series: OptiMOS™ 5
- Product Type: Power MOSFET
- Channel Type: N-Channel
- Drain-Source Voltage: 150V
- Continuous Drain Current: 87A @ TC=25°C
- Continuous Drain Current: 55A @ TC=100°C
- Pulsed Drain Current: 348A
- Maximum RDS(on): 9.3mΩ @ VGS=10V
- Typical Total Gate Charge: 33nC
- Maximum Total Gate Charge: 40.7nC
- Typical Input Capacitance: 2430pF
- Typical Output Capacitance: 604pF
- Gate Threshold Voltage: 3.0V to 4.6V
- Gate-Source Voltage: ±20V
- Typical Reverse Recovery Charge: 58nC
- Typical Reverse Recovery Time: 49ns
- Single-Pulse Avalanche Energy: 130mJ
- Maximum Power Dissipation: 139W
- Operating Temperature: -55°C to +150°C
- Package: SuperSO8 5×6 / PG-TDSON-8
- Pin Count: 8
- Mounting Type: SMD
- Packaging: Tape & Reel
- Standard Pack Quantity: 5000 pcs
- RoHS Compliant: Yes
- Product Status: Active and Preferred
