The Kingbright APT1608SECK/J4-PRV is a high-brightness orange surface-mount LED designed for status indication, backlighting, and compact electronic display applications. Featuring a dominant wavelength of 605nm, a typical forward voltage of 2.2V, and a wide 120° viewing angle, this LED delivers bright and clearly visible orange illumination in a miniature 0603 (1608 metric) package.
Built with AlGaInP (Aluminum Gallium Indium Phosphide) LED technology, the APT1608SECK/J4-PRV provides a typical luminous intensity of 2000mcd with a minimum of 1300mcd at 20mA under the standard measurement conditions specified in the datasheet. Its water-clear lens and wide viewing angle make it suitable for visual indicators and compact backlighting systems.
The device features a maximum continuous forward current of 30mA, a maximum power dissipation of 84mW, and a reverse voltage rating of 5V. Its low power consumption and compact 1.6 × 0.8 × 0.75mm dimensions make it suitable for space-constrained PCB layouts and battery-powered electronic equipment.

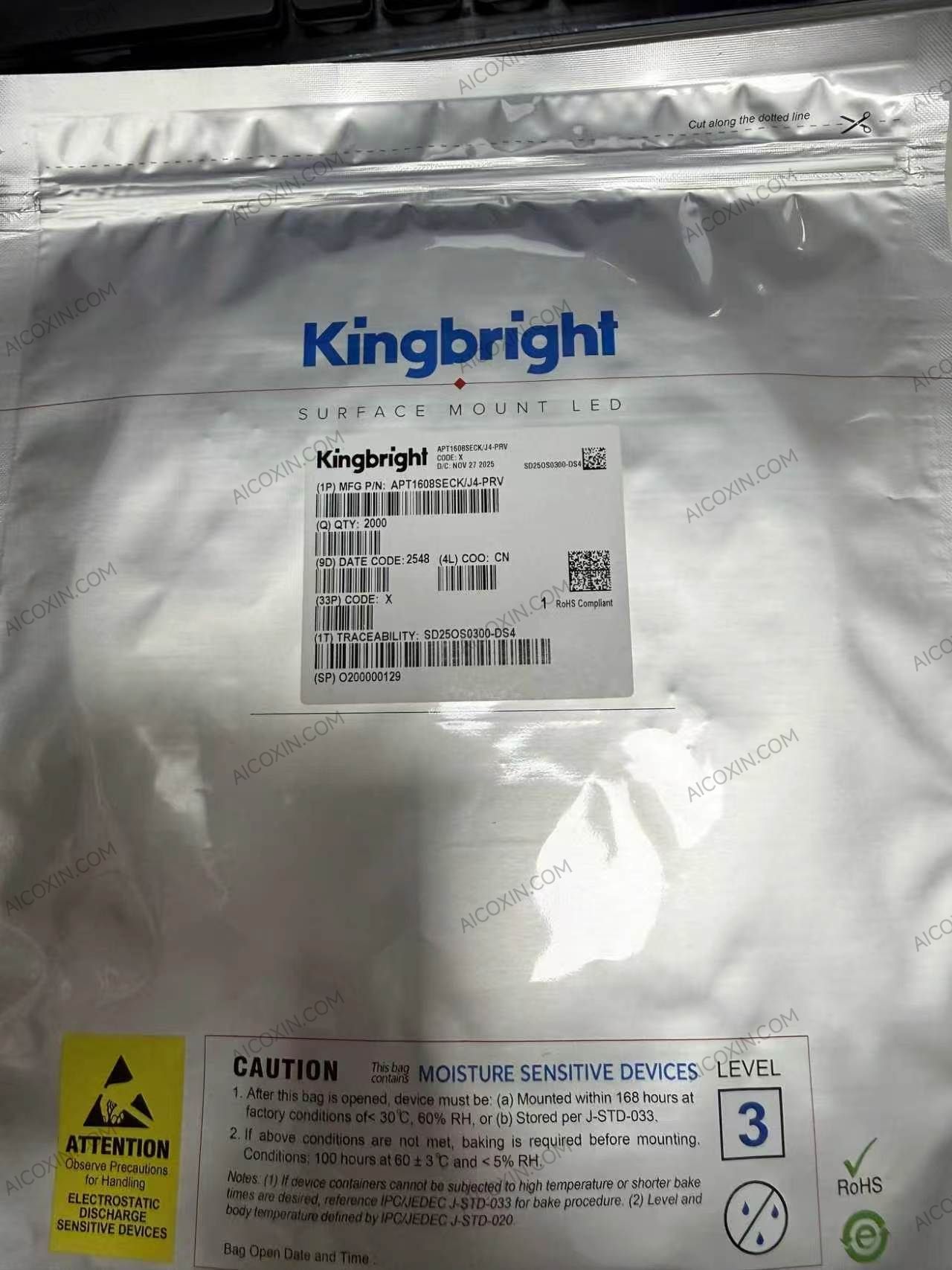

With an operating temperature range of -40°C to +85°C, the APT1608SECK/J4-PRV supports reliable operation in various electronic applications. Its RoHS-compliant, halogen-free construction, MSL 3 moisture sensitivity rating, and tape-and-reel packaging make it suitable for automated SMT assembly and lead-free reflow soldering.
Key Specifications:
- Manufacturer: Kingbright
- Part Number: APT1608SECK/J4-PRV
- Product Type: SMD Chip LED
- LED Color: Super Bright Orange
- LED Material: AlGaInP
- Dominant Wavelength: 605nm (Typical)
- Peak Wavelength: 611nm (Typical)
- Forward Voltage (VF): 2.2V Typical, 2.8V Maximum
- Test Forward Current: 20mA
- Maximum Continuous Forward Current: 30mA
- Peak Forward Current: 150mA (Specified Pulse Conditions)
- Typical Luminous Intensity: 2000mcd at 20mA (Standard Measurement)
- Minimum Luminous Intensity: 1300mcd at 20mA (Standard Measurement)
- Viewing Angle: 120°
- Lens Type: Water Clear
- Maximum Power Dissipation: 84mW
- Maximum Reverse Voltage: 5V
- Operating Temperature: -40°C to +85°C
- Package: 0603 (1608 Metric)
- Dimensions: 1.6 × 0.8 × 0.75mm
- Mounting Type: Surface Mount (SMD/SMT)
- Moisture Sensitivity Level: MSL 3
- ESD Threshold: 3000V (HBM)
- Compliance: RoHS Compliant, Halogen-Free
- Packaging: Tape & Reel
- Standard Reel Quantity: 2,000 Pieces
Typical Applications:
- Electronic status indicators
- LCD and display backlighting
- Home appliances and smart devices
- Portable electronic equipment
- Wearable electronic devices
- Industrial control panel indicators
- Consumer electronic products
- Compact PCB indication circuits
