The MF-MSMF200-2 is a polymeric positive temperature coefficient (PPTC) resettable fuse manufactured by Bourns. Part of the Multifuse® MF-MSMF series, it is designed to provide overcurrent protection for electronic circuits and help reduce the need for conventional one-time fuses.

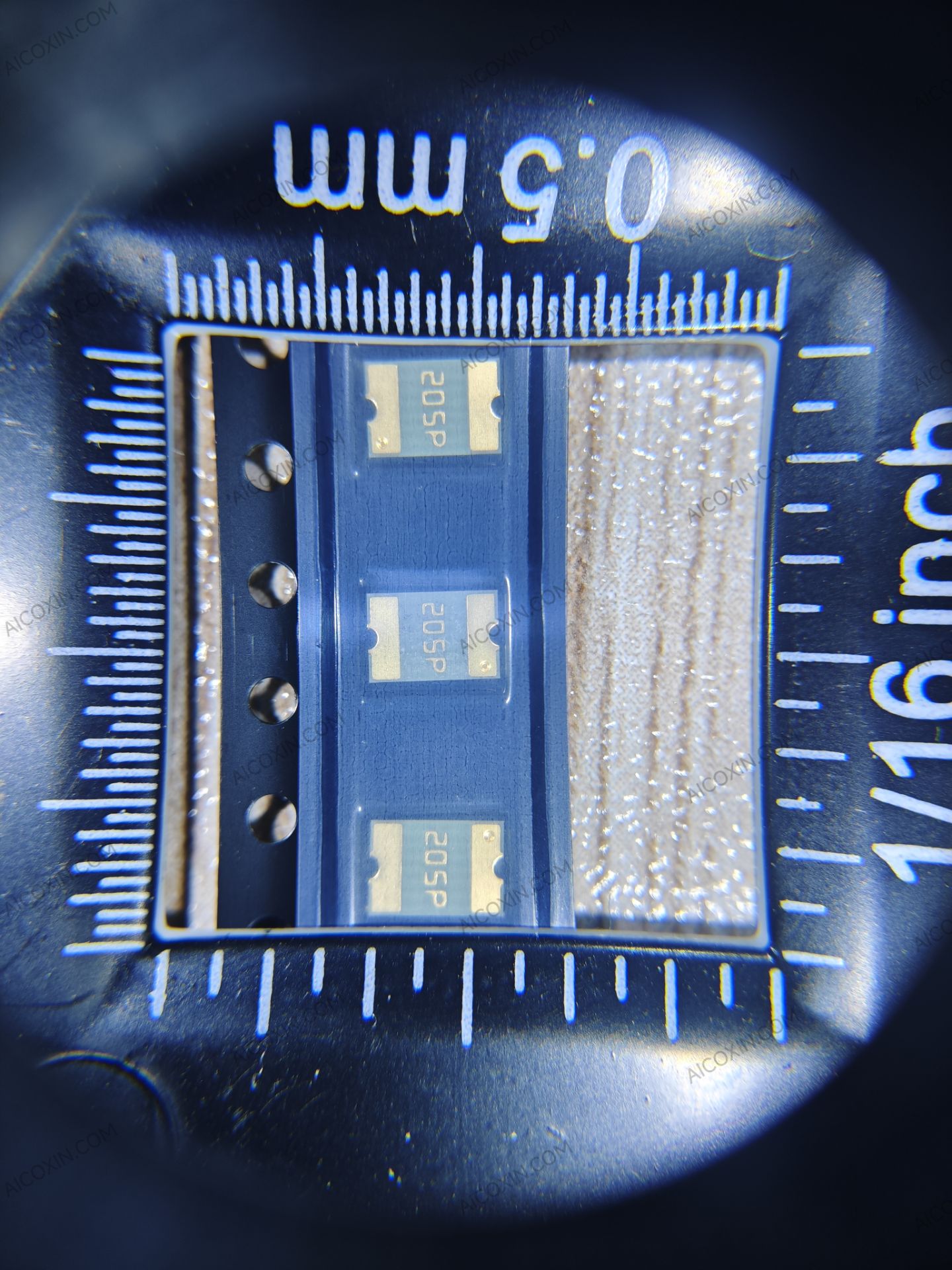

This surface-mount device features a 2A hold current, a 4A trip current, and a maximum voltage rating of 8V DC. When an overcurrent condition occurs, its resistance increases to limit current flow. After the fault is removed and the device cools, it can return to a low-resistance state under suitable operating conditions.
Key Features:
- Manufacturer: Bourns
- Part Number: MF-MSMF200-2
- Device Type: PPTC Resettable Fuse
- Hold Current: 2A
- Trip Current: 4A
- Maximum Voltage Rating: 8V DC
- Maximum Current Rating: 40A
- Initial Resistance: 0.020Ω minimum
- Post-Trip Resistance: 0.080Ω maximum
- Package Size: 1812 (4532 metric)
- Dimensions: Approximately 4.73 × 3.41 × 0.85mm
- Operating Temperature: -40°C to +85°C
- Mounting Type: Surface Mount
- Automotive Qualification: AEC-Q200
Typical applications include automotive electronics, computer peripherals, portable electronic equipment, and low-voltage circuit protection.
Please consult the official Bourns datasheet for detailed electrical ratings, trip-time characteristics, and recommended operating conditions. Verify product availability before ordering, as this part is listed as obsolete by distributors.
