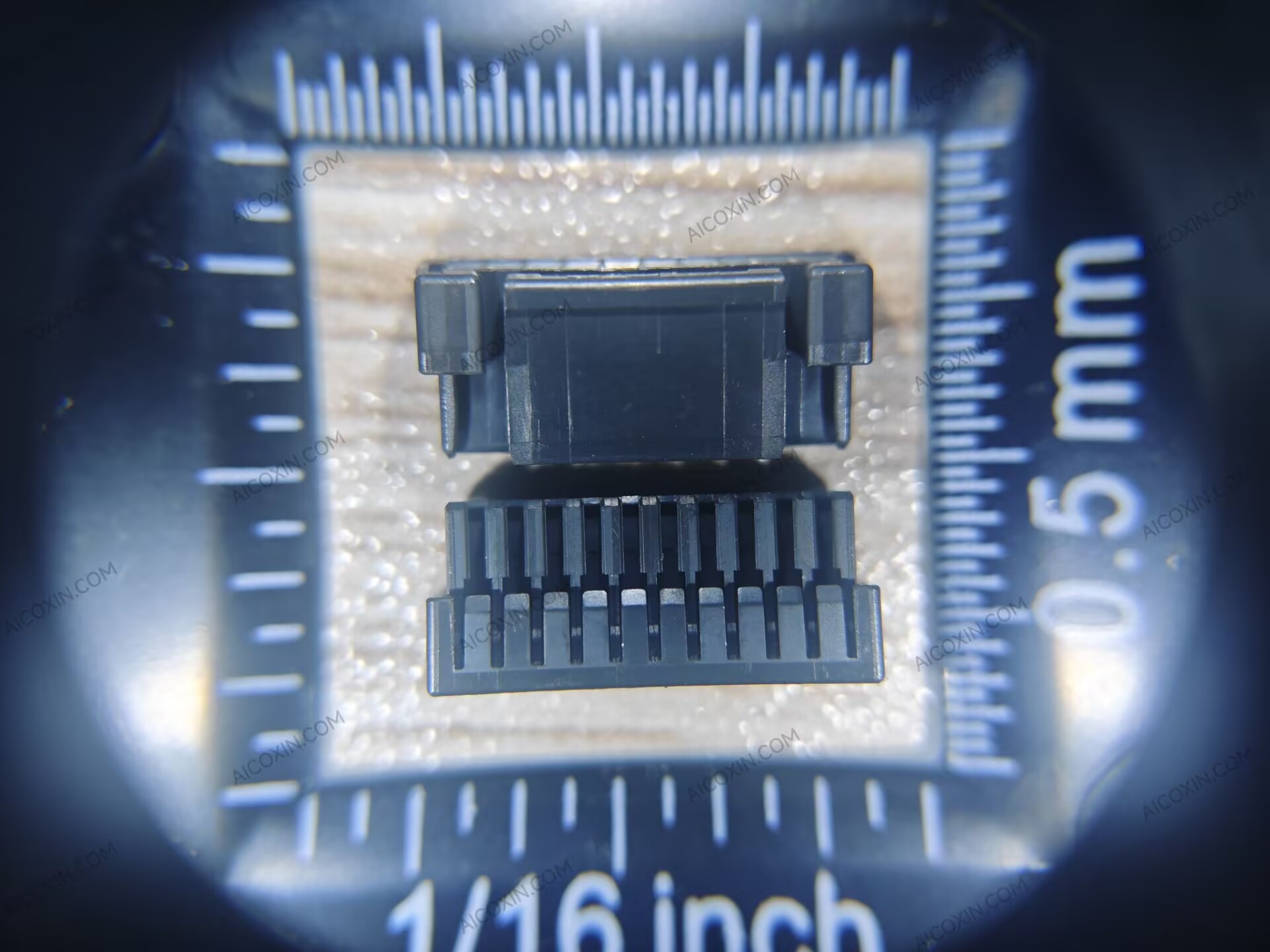

The 505565-1001 is a high-quality receptacle connector housing manufactured by Molex. Belonging to the Micro-Lock Plus 505565 series, this 10-position, single-row housing features a 1.25mm pitch and a positive locking mechanism, providing secure and reliable wire-to-board connections for compact electronic equipment.
Constructed from durable black Polybutylene Terephthalate (PBT) material, the Molex 505565-1001 features a polarized mating design that helps prevent incorrect connections. Its positive locking mechanism provides secure mechanical retention when assembled with compatible mating connectors, reducing the risk of accidental disconnection.
With an operating temperature range of -40°C to +105°C, this connector housing is suitable for consumer electronics, industrial control equipment, communication devices, and compact electronic assemblies.
Designed for use with compatible Molex Micro-Lock Plus crimp terminals and headers, the 505565-1001 supports space-efficient PCB designs and cable harness assembly.
Key Features:
- Manufacturer: Molex
- Part Number: 505565-1001
- Alternative Part Number: 5055651001
- Product Series: Micro-Lock Plus 505565 Series
- Product Category: Rectangular Connector Housing
- Connector Type: Receptacle (Female)
- Number of Positions: 10
- Number of Rows: 1 (Single Row)
- Contact Pitch: 1.25mm (0.049 inch)
- Termination Method: Crimp
- Connector System: Wire-to-Board
- Mounting Type: Cable Mount / Free Hanging
- Housing Material: Polybutylene Terephthalate (PBT)
- Housing Color: Black
- Locking Mechanism: Positive Lock
- Polarization: Polarized Housing
- Operating Temperature Range: -40°C to +105°C
- Compatible Crimp Terminal Series: Molex 505431
- Compatible Header Series: Molex 505567 / 505568
- Packaging: Bag
- RoHS Compliance: RoHS Compliant
Typical Applications:
- Consumer electronic devices
- Industrial automation and control equipment
- Wire-to-board signal connections
- Communication and networking equipment
- Electronic control modules
- Cable harness assemblies
- Compact electronic systems
- General-purpose electronic interconnections
The Molex 505565-1001 combines a compact 10-position design, reliable positive locking mechanism, and durable PBT housing construction. Its 1.25mm pitch and Micro-Lock Plus connector system make it a practical solution for electronic manufacturers, design engineers, and component procurement professionals requiring secure and space-efficient wire-to-board connections.
Note: This product is a connector housing only. Compatible female crimp terminals must be purchased separately.
