The GRM32ER71E226KE15L from Murata is a GRM Series general-purpose multilayer ceramic capacitor (MLCC) featuring a capacitance of 22μF, a rated voltage of 25VDC, and a capacitance tolerance of ±10%. It uses an X7R dielectric characteristic for stable capacitance performance across a wide temperature range.
The device is supplied in a standard 1210 (3225 Metric) surface-mount package. Its dimensions are approximately 3.2±0.3 mm × 2.5±0.2 mm × 2.5±0.2 mm, making it suitable for compact PCB layouts and automated SMT assembly.
The X7R temperature characteristic is specified from -55°C to +125°C, with capacitance change within ±15% over that range. As a non-polarized ceramic capacitor, it is suitable for power filtering, decoupling, bypass, smoothing and general-purpose electronic applications.
Key Specifications:
- Brand: Murata
- Part Number: GRM32ER71E226KE15L
- Series: GRM
- Product Type: Multilayer Ceramic Capacitor (MLCC)
- Capacitance: 22μF
- Rated Voltage: 25VDC
- Tolerance: ±10%
- Dielectric: X7R
- Capacitance Change: ±15%
- Operating Temperature: -55°C to +125°C
- Package: 1210 / 3225 Metric
- Length: 3.2±0.3 mm
- Width: 2.5±0.2 mm
- Thickness: 2.5±0.2 mm
- Mounting Type: SMD / SMT
- Polarity: Non-Polarized

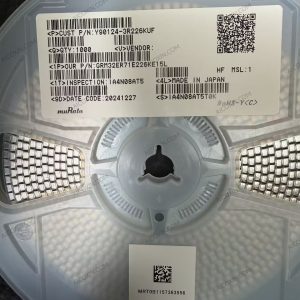

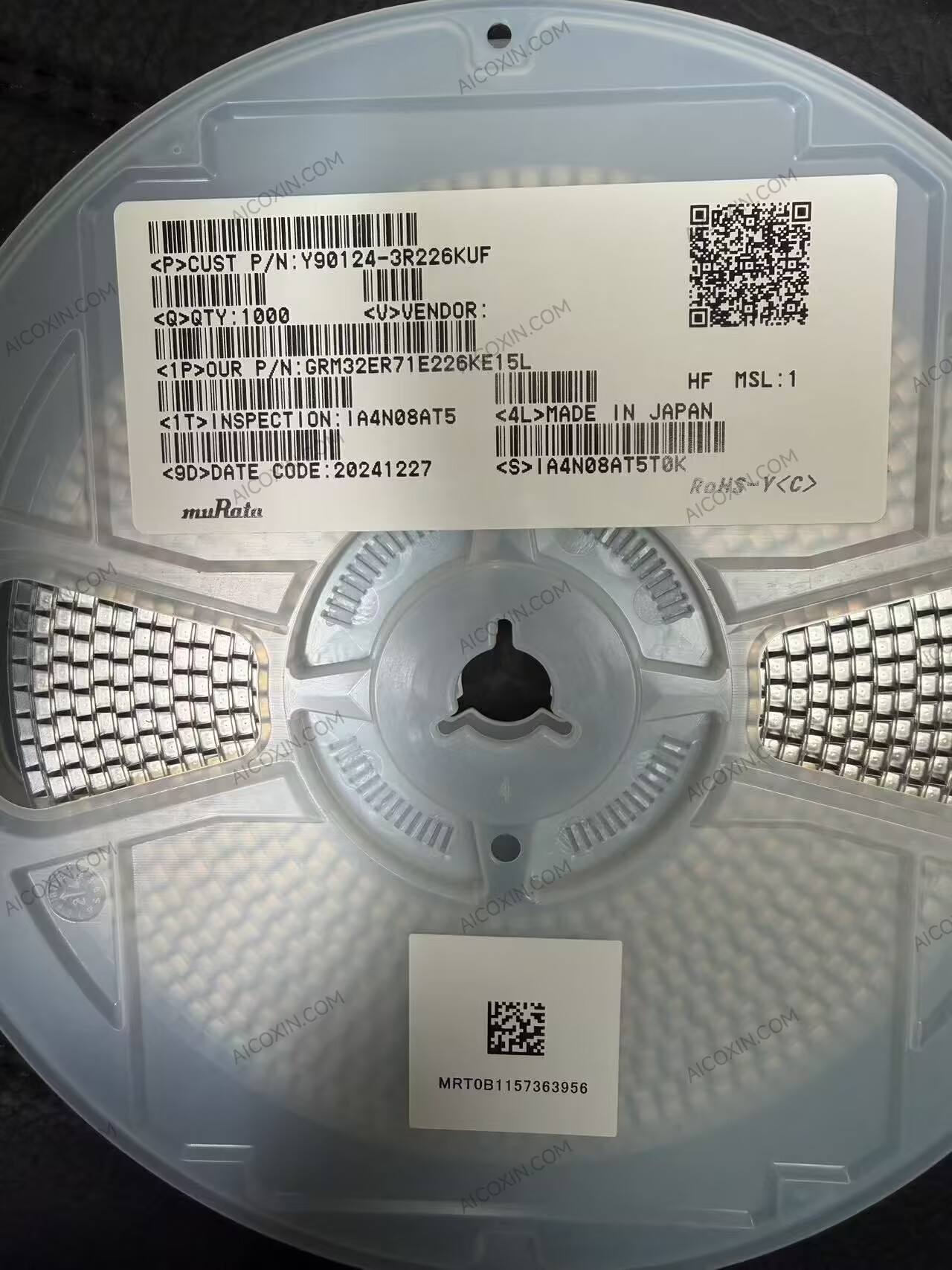

- Packaging: Embossed Tape / Reel
- Standard Reel Quantity: 1000 pcs
