The RC-02K3003FT from FENGHUA is a general-purpose thick film chip resistor featuring a resistance of 300kΩ, a tolerance of ±1%, and a rated power of 1/16W or 62.5mW at 70°C. It is supplied in a compact 0402 / 1005 metric package suitable for automated surface-mount assembly, reflow soldering, and wave soldering.
The resistor has a temperature coefficient of ±100ppm/°C, a limiting element voltage of 50V, and a maximum overload voltage of 100V. Its approximate dimensions are 1.00 × 0.50 × 0.30mm, and its operating temperature range is -55°C to +155°C. Power derating is required when the ambient temperature exceeds 70°C.

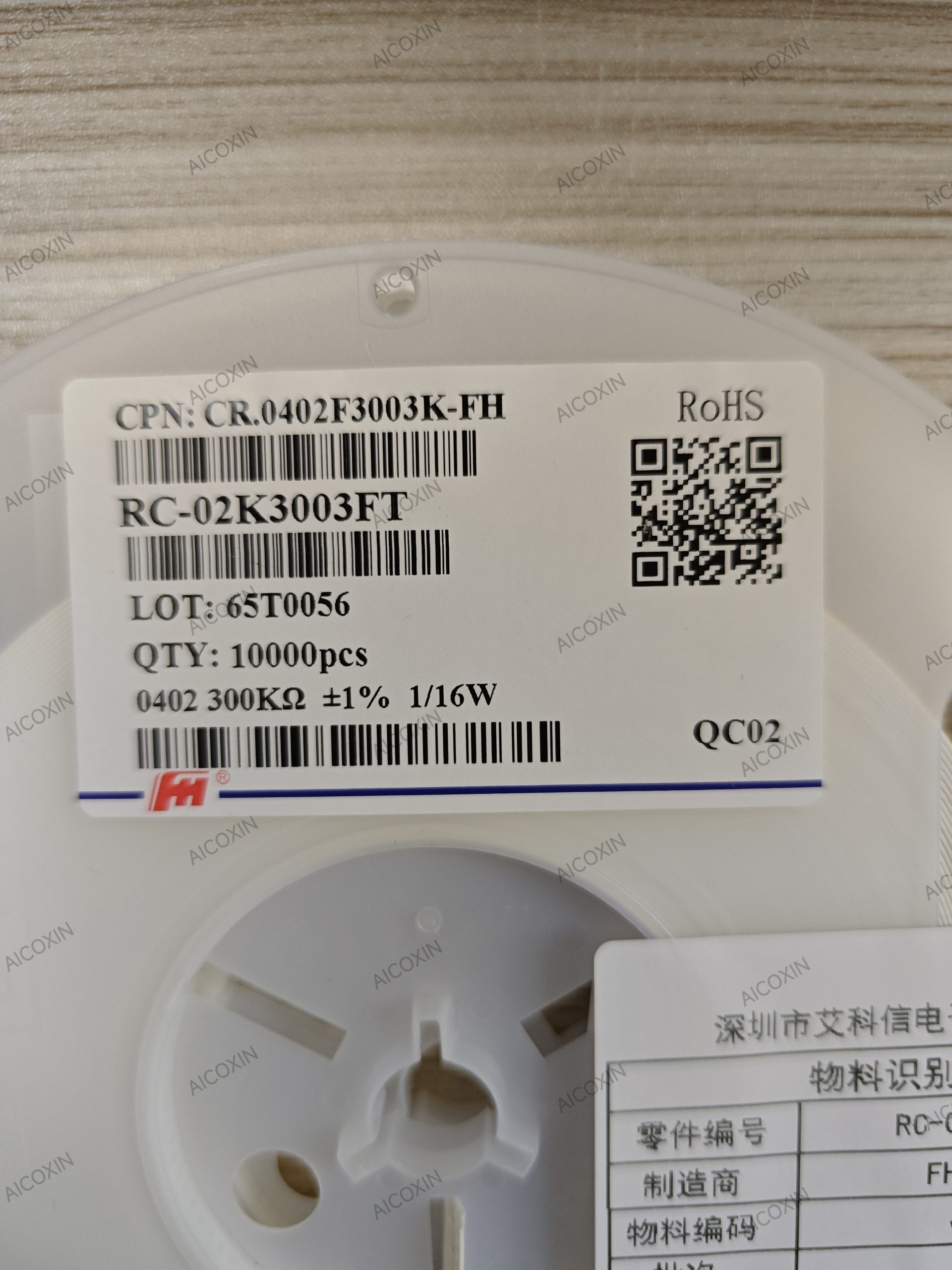

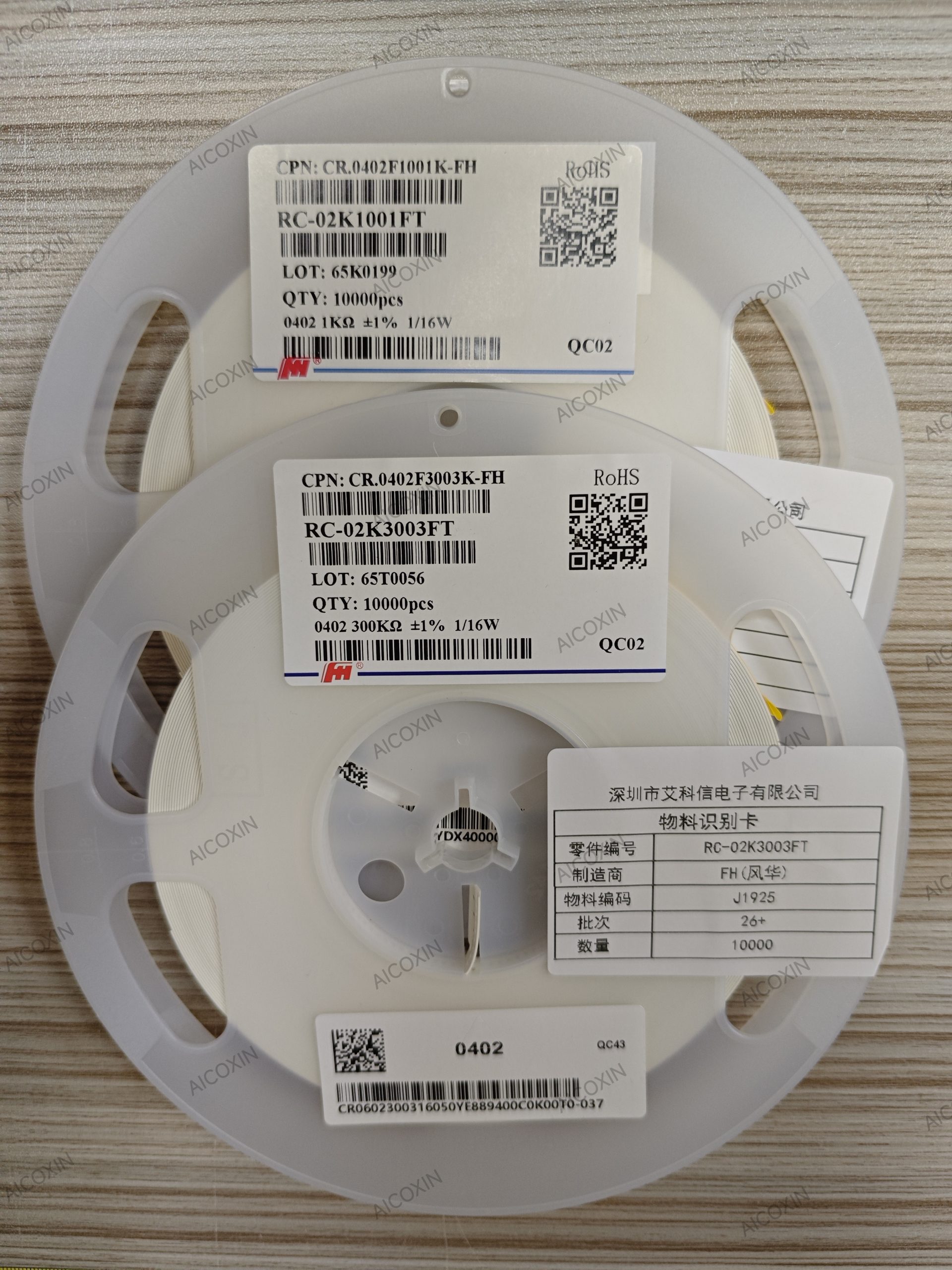

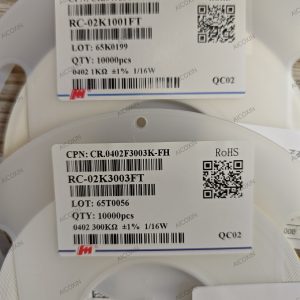

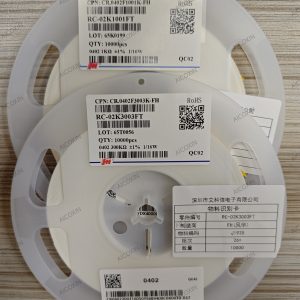

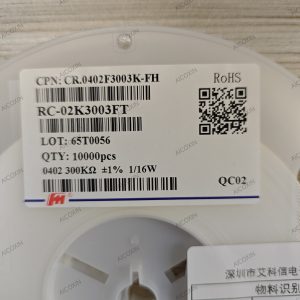

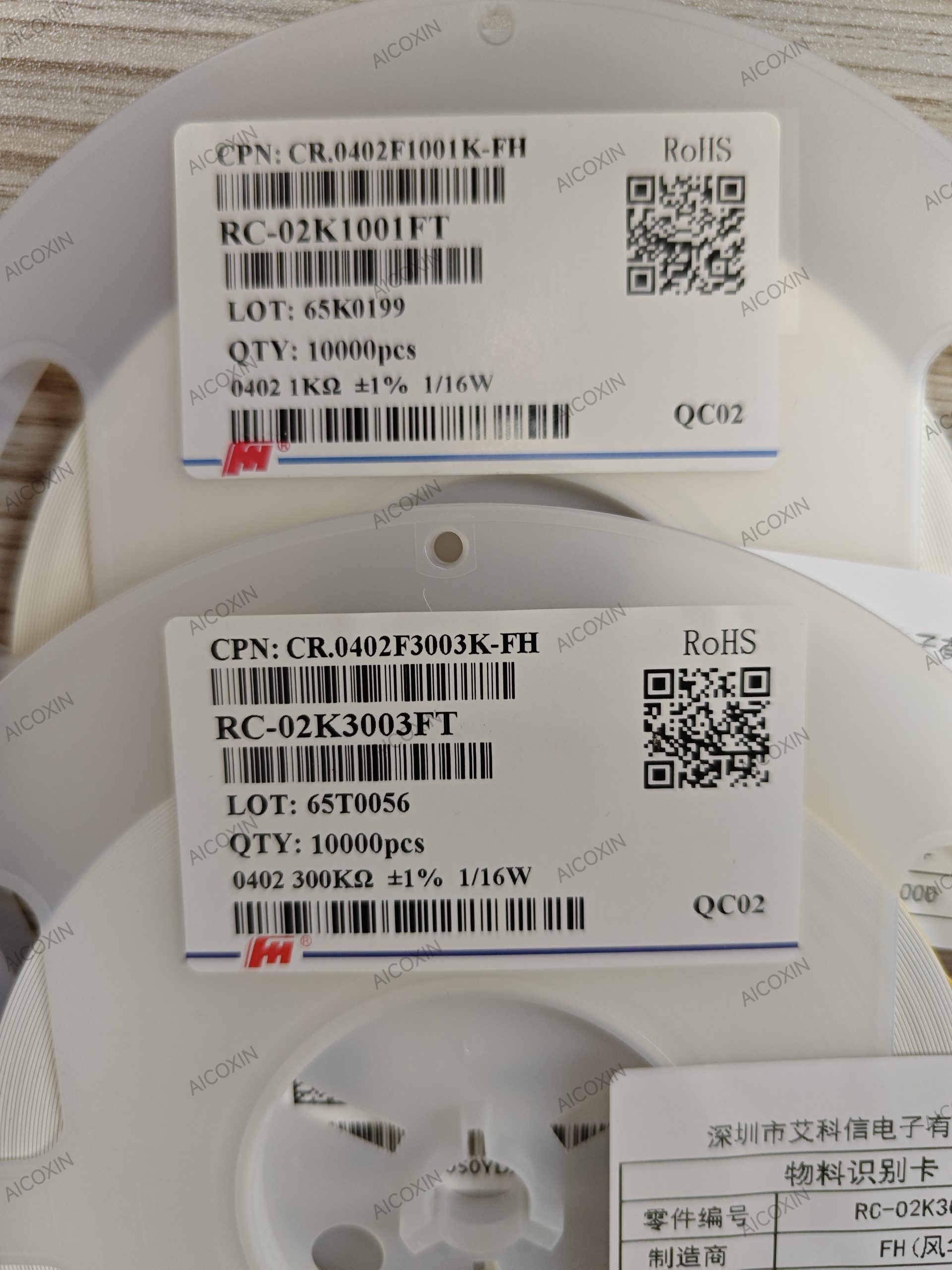

Within the part number, “02” identifies the 0402 package, “K” represents a ±100ppm/°C TCR, “3003” identifies the 300kΩ resistance, “F” represents ±1% tolerance, and “T” specifies tape-and-reel packaging. The component is normally supplied on a 7-inch paper tape reel containing 10,000 pieces. Due to its small 0402 body size, it is typically supplied without a printed resistance marking.
FENGHUA general-purpose thick film chip resistors provide compact size, low weight, stable electrical performance, and good mechanical strength. The series is RoHS compliant, halogen-free, and classified as MSL 1, with applications in home appliances, computers, communications, industrial automation, and consumer electronics.
Key Specifications:
- Manufacturer: FENGHUA
- Manufacturer Part Number: RC-02K3003FT
- Component Type: General-Purpose Thick Film Chip Resistor
- Resistance: 300kΩ
- Resistance Tolerance: ±1%
- Power Rating: 1/16W / 62.5mW
- Package Size: 0402 / 1005 Metric
- Temperature Coefficient: ±100ppm/°C
- Limiting Element Voltage: 50V
- Maximum Overload Voltage: 100V
- Operating Temperature: -55°C to +155°C
- Dimensions: Approximately 1.00 × 0.50 × 0.30mm
- Mounting Type: Surface Mount, SMD/SMT
- Body Marking: Typically Unmarked
- Packaging: Paper Tape and Reel
- Reel Size: 7 Inches
- Standard Reel Quantity: 10,000 Pieces
- Compliance: RoHS Compliant and Halogen-Free
- Moisture Sensitivity Level: MSL 1
Typical Applications:
Suitable for consumer electronics, communications equipment, computers, home appliances, industrial automation, instrumentation, and general electronic products. It can be used in voltage-divider, biasing, pull-up, pull-down, and signal-conditioning circuits. Final suitability should be verified according to operating voltage, ambient temperature, and power-derating requirements.
