RTL8367SC-CG Realtek 5+2-Port Gigabit Switch IC

The Realtek RTL8367SC-CG is a highly integrated Layer 2 managed Ethernet switch controller designed for routers, network switches, gateways and other embedded networking equipment. It features a single-chip 5+2-port 10/100/1000 Mbps non-blocking switching architecture, providing reliable high-speed data transmission for compact network designs.

The device integrates five 10/100/1000Base-T Gigabit Ethernet PHYs and provides two extension MAC interfaces supporting SGMII and HSGMII connectivity. These flexible interfaces allow the RTL8367SC-CG to connect with processors, optical modules or additional networking devices.

The RTL8367SC-CG supports essential Layer 2 network management functions, including VLAN configuration, Quality of Service, access control and traffic management. Additional features such as cable diagnostics, programmable LED indicators and low-power operating modes help simplify system design and improve energy efficiency.

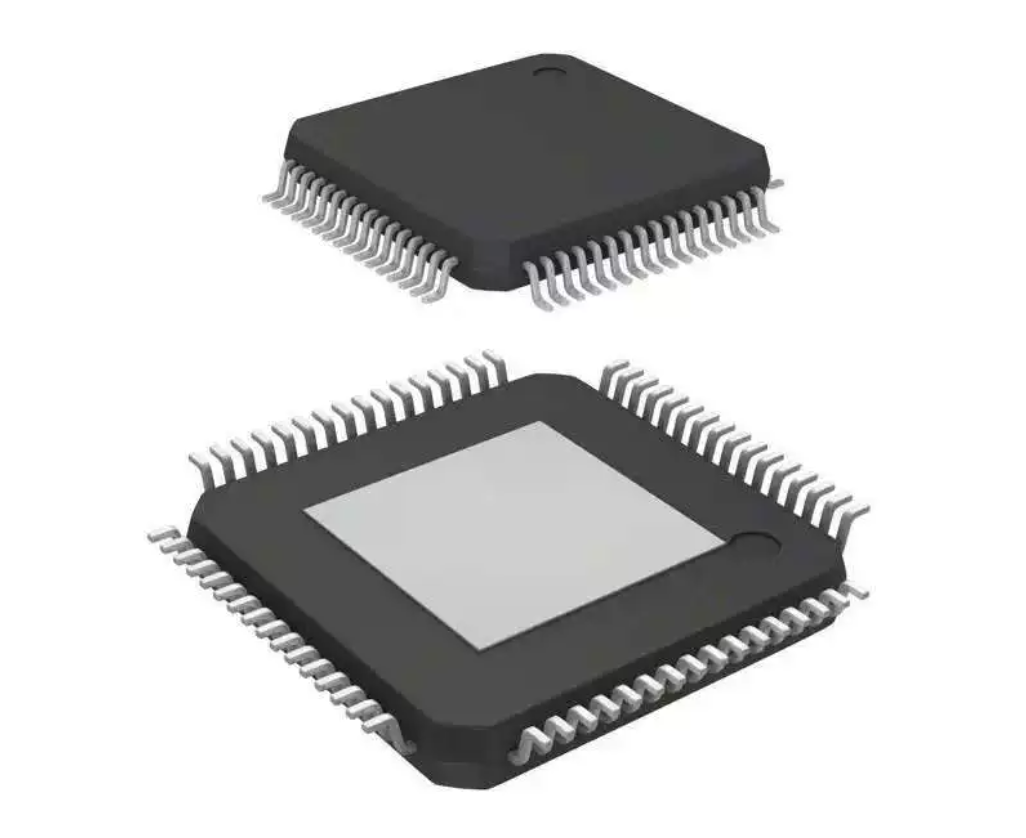

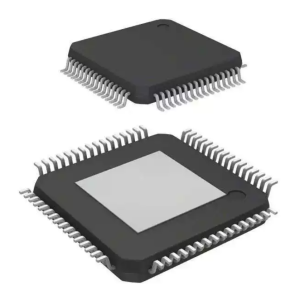

Supplied in an LQFP-128-EP package, the RTL8367SC-CG is suitable for Gigabit Ethernet switches, wireless routers, access points, network video recorders, smart gateways and industrial networking equipment.
