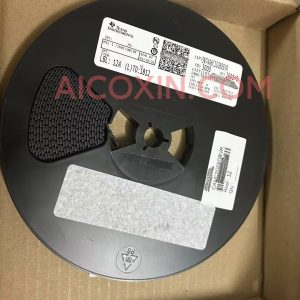

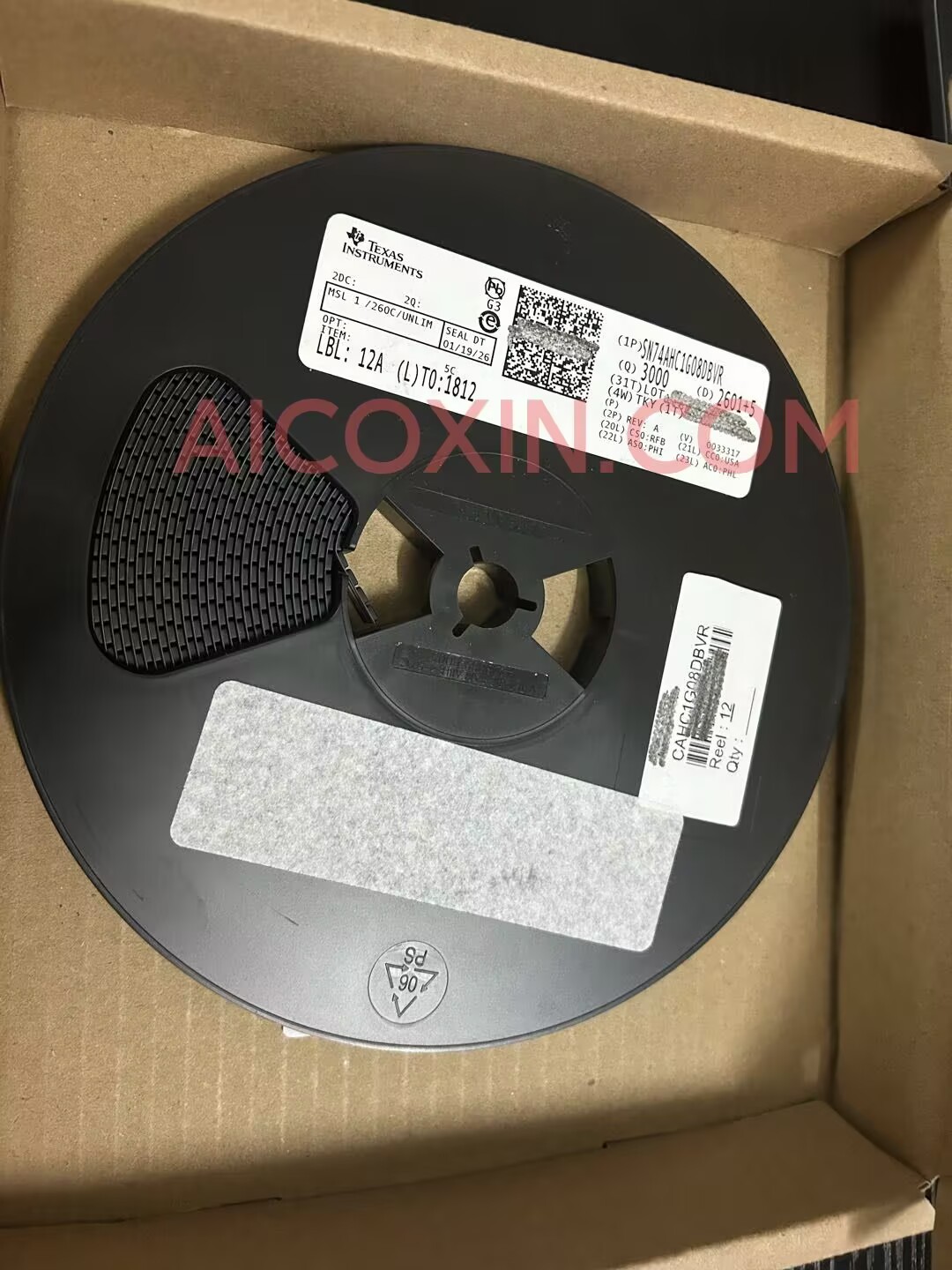

SN74AHC1G08DBVR TI Single 2-Input AND Gate IC SOT-23-5

Original price was: $134.00.Current price is: $125.00. USD per reel

TI SN74AHC1G08DBVR is a high-speed single 2-input AND gate IC featuring 2–5.5 V operation, low power consumption, Schmitt-trigger inputs, and a compact SOT-23-5 package.

Availability: Please request a quote to confirm stock.

Download Datasheet
Price and availability are subject to confirmation.
- +
SKU: SN74AHC1G08DBVR/3000pcs Category: Brand:
Guaranteed Safe Checkout

Pieces per reel: 3,000
Minimum order: 1 reel
Cart quantity: 1 = 1 reel

Manufacturer part number: SN74AHC1G08DBVR. Manufacturer specifications

The SN74AHC1G08DBVR from Texas Instruments is a single 2-input positive-AND gate designed for high-speed digital logic applications. It operates over a 2 V to 5.5 V supply range and provides a maximum propagation delay of approximately 7 ns at 5 V.

Featuring Schmitt-trigger action at the inputs, the device offers improved tolerance to slower input rise and fall times. It also provides low power consumption and up to ±8 mA output drive at 5 V. The DBVR version is supplied in a compact 5-pin SOT-23 (DBV) package, making it suitable for space-constrained PCB designs.

It is well suited for signal gating, logic control, digital signal conditioning, industrial electronics, communication equipment, consumer electronics, and embedded system applications.

Key Features

  • Single 2-input positive-AND gate
  • Supply voltage: 2 V to 5.5 V
  • Maximum propagation delay: 7 ns at 5 V
  • Output drive: ±8 mA at 5 V
  • Low power consumption
  • Schmitt-trigger inputs
  • Push-pull output
  • Operating temperature: -55°C to +125°C
  • Package: SOT-23-5 / DBV
  • RoHS and REACH compliant

When does an AND gate need the AHCT option instead of SN74AHC1G08DBVR?

Compare the driving device’s guaranteed high level with the gate’s minimum input-high threshold. TI specifies 3.85 V at a 5.5 V supply for SN74AHC1G08. The AHCT family accepts a 2.0 V high input and operates from 4.5 V to 5.5 V. Check the supply and noise margin before approving a variant. TI datasheet and TI datasheet.
