The IMX273LQR-C is a high-performance color CMOS image sensor manufactured by Sony Semiconductor Solutions. Featuring Sony’s advanced Pregius global shutter technology, this sensor delivers approximately 1.58 megapixels of effective resolution, high-speed image capture, and excellent image quality for industrial machine vision and imaging applications.
Designed with a Type 1/2.9-inch optical format and a pixel size of 3.45µm × 3.45µm, the Sony IMX273LQR-C provides an effective resolution of 1456 × 1088 pixels. Its global shutter architecture enables simultaneous exposure of all pixels, minimizing motion distortion when capturing fast-moving objects.
The sensor supports 8-bit, 10-bit, and 12-bit ADC output modes, with maximum frame rates of up to 276fps in 8-bit mode, 226.5fps in 10-bit mode, and 165.9fps in 12-bit mode under specified sensor operating conditions.
Equipped with an 8-channel Sub-LVDS output interface and housed in a compact 138-pin LGA package, the IMX273LQR-C is suitable for high-speed industrial cameras, automated optical inspection systems, robotics, and embedded vision applications.
Key Features:
- Manufacturer: Sony Semiconductor Solutions
- Part Number: IMX273LQR-C
- Product Category: CMOS Image Sensors
- Sensor Technology: Sony Pregius / Exmor
- Sensor Type: Color CMOS Image Sensor
- Shutter Type: Global Shutter
- Optical Format: Type 1/2.9-inch
- Optical Diagonal: Approximately 6.3mm
- Effective Resolution: 1456 × 1088 Pixels
- Effective Pixel Count: Approximately 1.58MP
- Pixel Size: 3.45µm × 3.45µm
- Scanning Method: Progressive Scan
- ADC Resolution: 8-bit / 10-bit / 12-bit
- Maximum Frame Rate (8-bit): 276fps
- Maximum Frame Rate (10-bit): 226.5fps
- Maximum Frame Rate (12-bit): 165.9fps
- Output Interface: 8-Channel Sub-LVDS
- Typical Supply Rails: 3.3V / 1.8V / 1.2V

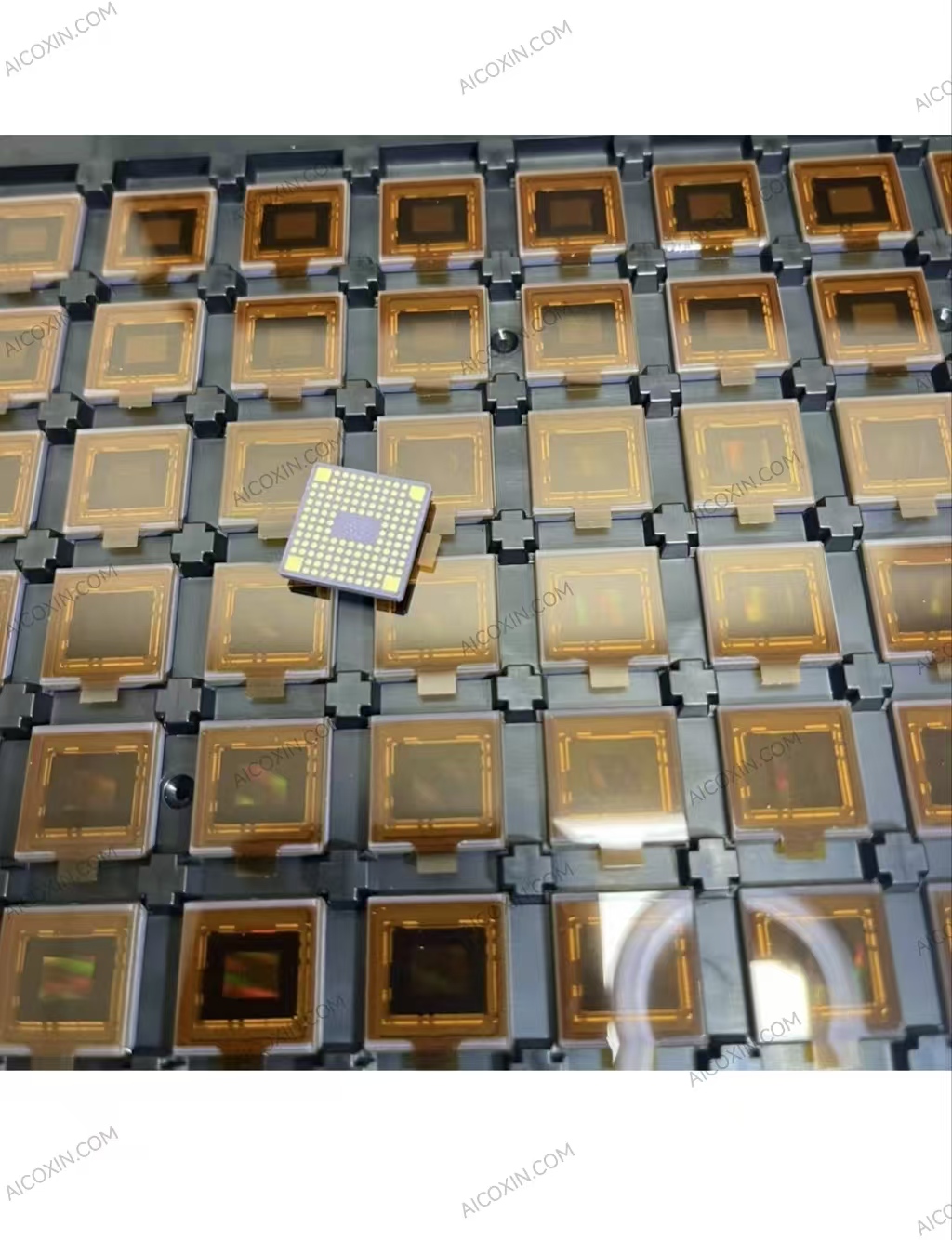

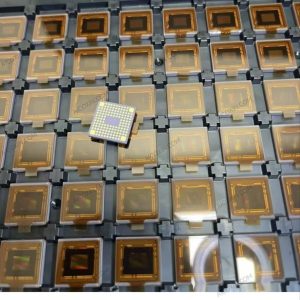

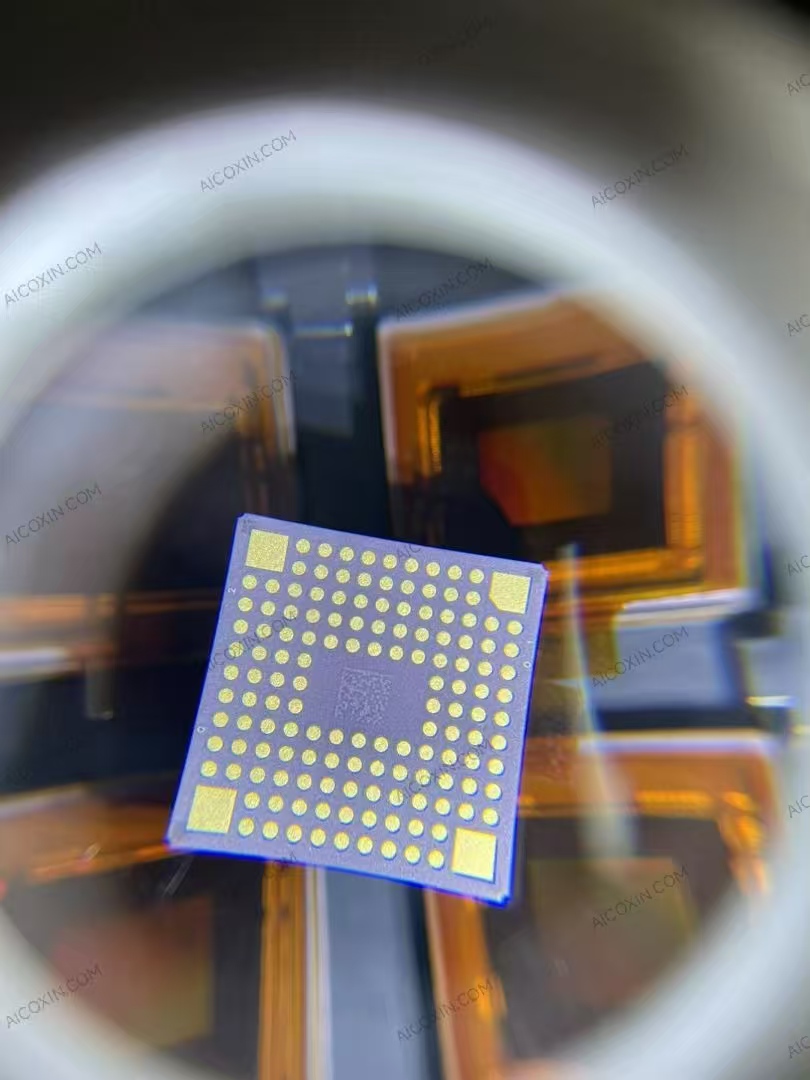

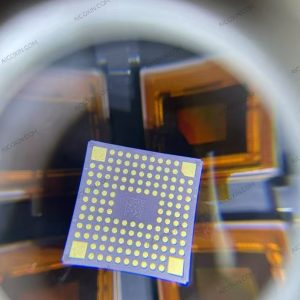

- Package: 138-Pin LGA
- Package Dimensions: Approximately 14 × 14mm
- Special Features: External Trigger, ROI Mode, Multiple Exposure, Multi-Sensor Synchronization
Typical Applications:
- Industrial machine vision cameras
- Automated optical inspection (AOI)
- High-speed image acquisition systems
- Robotics and automation equipment
- Barcode and QR code scanning
- Industrial quality control systems
- Object detection and tracking
- Embedded vision systems
The Sony IMX273LQR-C combines advanced global shutter technology, high-speed image capture, and compact sensor architecture to provide reliable imaging performance for demanding industrial applications.
Its high frame rate, 1.58MP resolution, and flexible operating modes make it a practical choice for camera manufacturers, embedded vision developers, and industrial automation system designers.
