The TDK CGA9N3X7S2A106MT0Y0S is an automotive-grade multilayer ceramic chip capacitor (MLCC) from the CGA9 Series. It provides a nominal capacitance of 10µF, a rated voltage of 100V DC, and a capacitance tolerance of ±20%, with an X7S temperature characteristic. TDK’s corresponding standard orderable part is CGA9N3X7S2A106M230KE, while distributors identify CGA9N3X7S2A106MT0Y0S as an alternate designation for this component.
The capacitor uses a CGA9 / 5750 metric / EIA 2220 package measuring approximately 5.70 × 5.00 × 2.30mm. Its X7S characteristic provides capacitance variation within ±22% over the specified -55°C to +125°C operating temperature range. Maximum dissipation factor is 5%, and minimum insulation resistance is 50MΩ.
A key feature is TDK’s soft-termination structure, designed to improve resistance to PCB bending and mechanical stress and reduce the risk of flex cracking compared with conventional MLCC terminations. The device is AEC-Q200 qualified, making it suitable for automotive electronics, power modules, ECUs, filtering circuits, and other high-reliability applications.

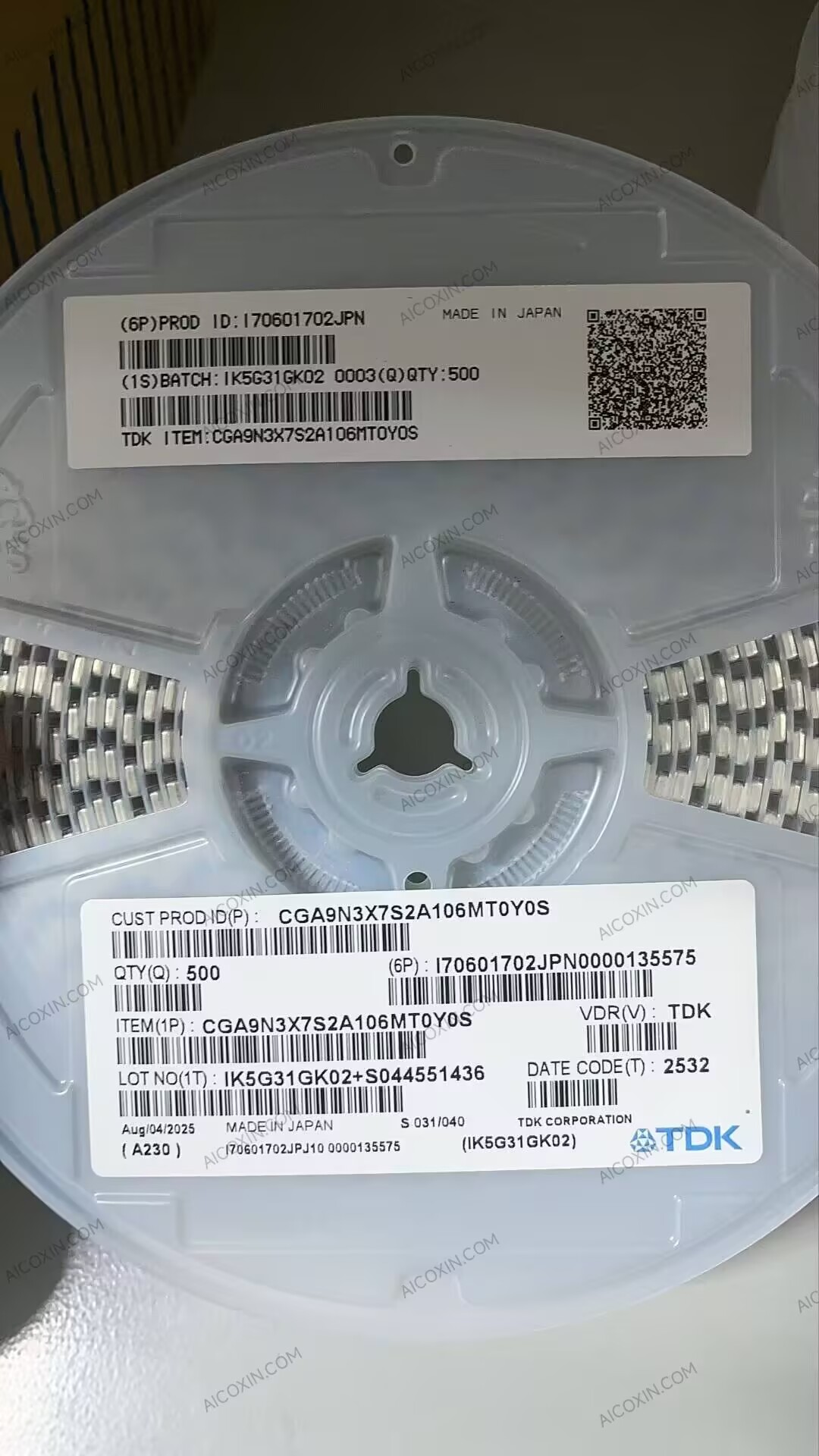

The corresponding standard part supports reflow soldering and is supplied on a 180mm reel with embossed plastic tape, with 500 pieces per reel. TDK currently lists the part as Production and indicates RoHS, REACH, halogen-free, and lead-free compliance.
Key Features:
- Manufacturer: TDK
- Part Number: CGA9N3X7S2A106MT0Y0S
- Corresponding Standard Part: CGA9N3X7S2A106M230KE
- Series: CGA9
- Product Type: Multilayer Ceramic Capacitor (MLCC)
- Application Grade: Automotive
- AEC-Q200 Qualified: Yes
- Capacitance: 10µF
- Tolerance: ±20%
- Rated Voltage: 100V DC
- Temperature Characteristic: X7S
- Operating Temperature: -55°C to +125°C
- Capacitance Change: ±22%
- Maximum Dissipation Factor: 5%
- Minimum Insulation Resistance: 50MΩ
- Package: 2220 / 5750 Metric
- Length: 5.70mm +0.50/-0.40mm
- Width: 5.00 ±0.40mm
- Thickness: 2.30mm +0.30/-0.20mm
- Termination: Soft Termination
- Mounting Type: Surface Mount
- Soldering Method: Reflow
- Packaging: 180mm Reel / Embossed Plastic Tape
- Standard Quantity: 500 pcs/reel
- RoHS / REACH Compliant
- Halogen-Free / Lead-Free
- Product Status: Production.
