The Texas Instruments LM211DR is a single high-speed differential voltage comparator featuring strobe capability and separate collector and emitter output connections. It can operate from a single 5V supply, while TI specifies a recommended total supply range of 3.5V to 30V, making it suitable for voltage detection, oscillators, peak detectors, industrial control, and general comparator applications.
Under the specified ±15V, 25°C switching test conditions, the LM211 provides a typical 115ns low-to-high response time and 165ns high-to-low response time. Typical input offset voltage is 0.7mV, with a maximum of 3mV at 25°C and 4mV over the full LM211 temperature range.
Typical input bias current is 75nA, with 100nA maximum at 25°C and 150nA maximum over temperature. The device uses an open-collector NPN output stage with an isolated emitter, allowing loads to be referenced independently and supporting switching of up to 50V at 50mA. Strobe, offset balance, and wire-OR operation are also supported.

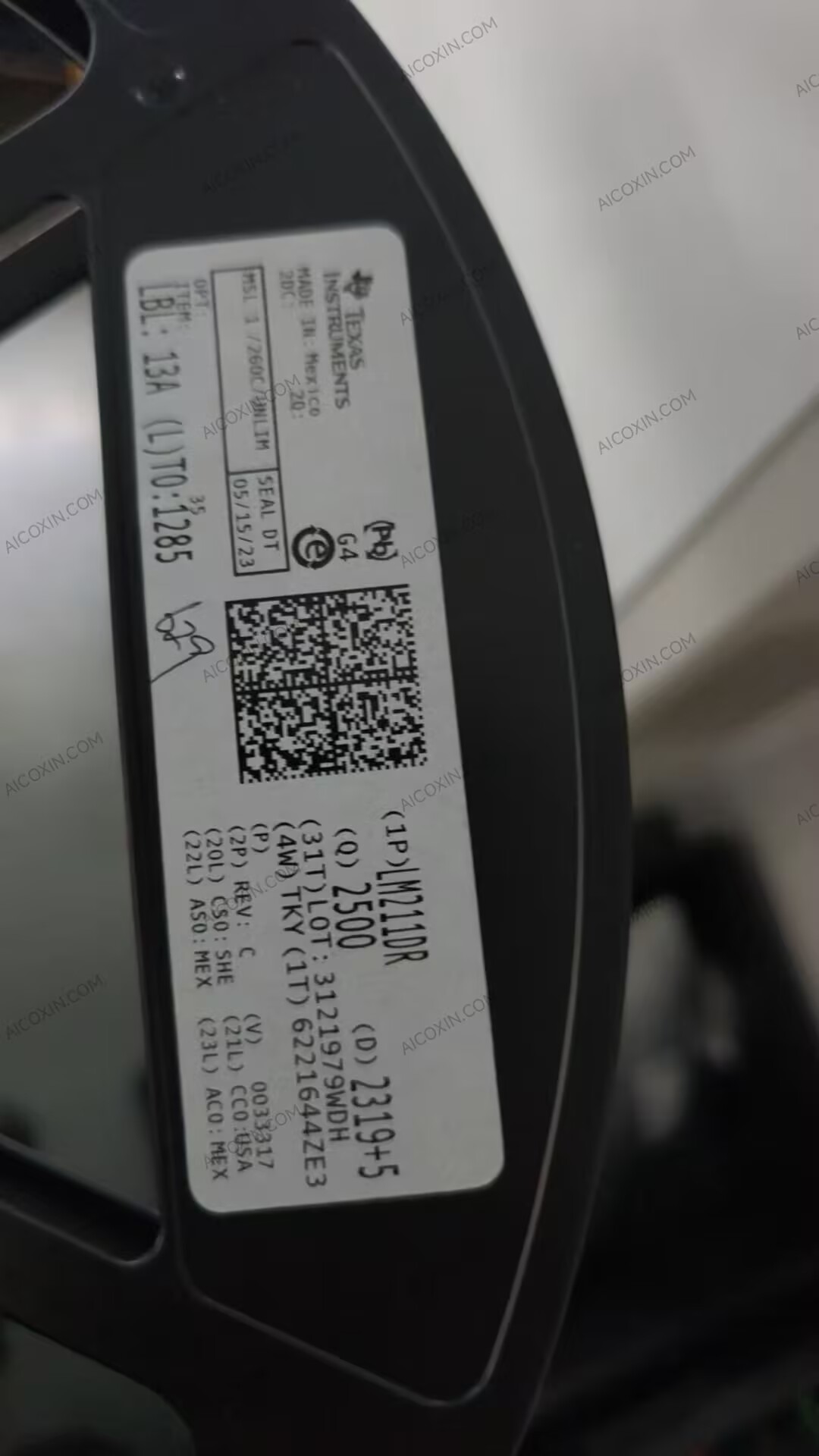

The exact LM211DR orderable device comes in an 8-pin SOIC (D) package measuring approximately 4.90 × 3.91mm and operates from -40°C to +85°C. The R suffix denotes a 2,500-piece large tape-and-reel package. TI currently lists the part as Active, RoHS and REACH compliant, with MSL Level 1 classification.
Key Features:
- Manufacturer: Texas Instruments
- Part Number: LM211DR
- Device Type: High-Speed Differential Comparator
- Channels: 1
- Output Type: Open-Collector NPN with Separate Emitter
- Recommended Supply Range: 3.5V to 30V
- Single 5V Supply Operation: Supported
- Typical Response Time: 115ns Low-to-High / 165ns High-to-Low
- Typical Input Offset Voltage: 0.7mV
- Maximum Input Offset Voltage: 3mV at 25°C
- Maximum Offset Over Temperature: 4mV
- Typical Input Bias Current: 75nA
- Maximum Input Bias Current: 150nA over Temperature
- Output Switching Capability: Up to 50V / 50mA
- Strobe Capability: Yes
- Offset Balance: Yes
- Wire-OR Output: Supported
- Operating Temperature: -40°C to +85°C
- Package: SOIC-8 / D
- Package Size: Approx. 4.90 × 3.91mm

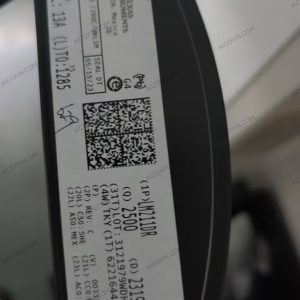

- Packaging: Large Tape & Reel
- Reel Quantity: 2,500 pcs
- MSL: Level 1
- RoHS / REACH Compliant
- Product Status: Active.
Can the LM211DR strobe pin be tied directly to ground?
Use TI’s current-driven strobe circuit. TI specifies a strobe current of −3 mA to −5 mA and warns against a direct short to ground. A low strobe turns the output off regardless of the differential input. Check the drive circuit on the board before approving an LM211DR replacement. TI datasheet.
