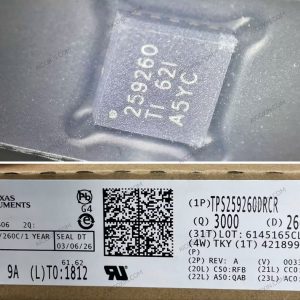

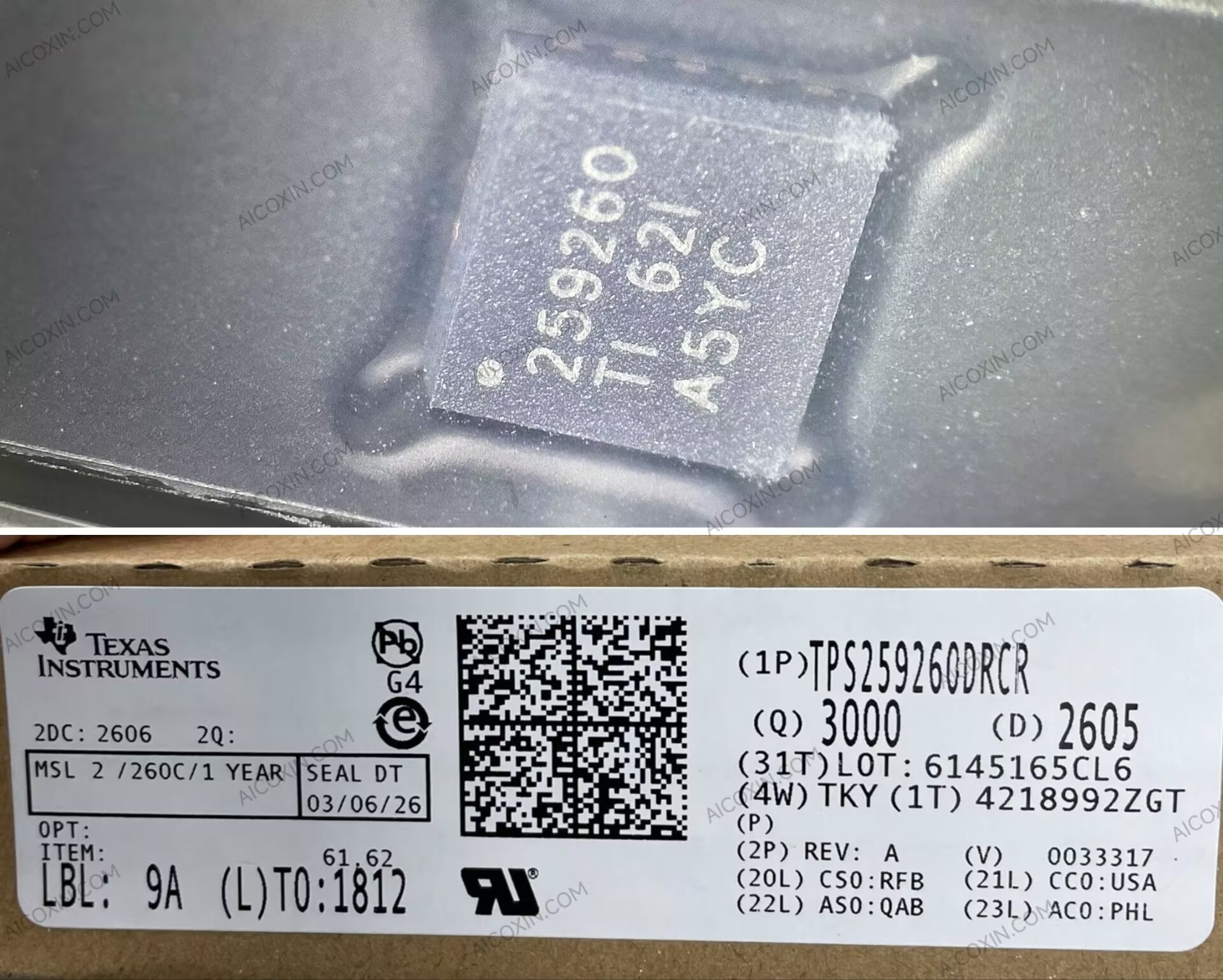

TPS259260DRCR TI 4.5V-13.8V 5A eFuse Protection IC 10-VSON

Original price was: $895.00.Current price is: $850.00. USD per reel

TI TPS259260DRCR is a 4.5V to 13.8V eFuse protection IC featuring a 30mΩ integrated MOSFET, 2A to 5A adjustable current limiting, overvoltage protection, soft start, UVLO, and thermal shutdown in a compact 10-pin VSON package.

Availability: Please request a quote to confirm stock.

Download Datasheet
Price and availability are subject to confirmation.
- +
SKU: TPS259260DRCR/3000pcs Category: Brand:
Guaranteed Safe Checkout

Pieces per reel: 3,000
Minimum order: 1 reel
Cart quantity: 1 = 1 reel

Manufacturer part number: TPS259260DRCR. Manufacturer specifications

The TPS259260DRCR from Texas Instruments is a highly integrated eFuse protection and power management IC designed for 5V and 12V power systems. It supports an input voltage range of 4.5V to 13.8V and integrates a low-resistance 30mΩ pass MOSFET, helping reduce conduction losses in power distribution and protection applications.

The device provides an adjustable current limit from 2A to 5A with ±15% accuracy and includes multiple protection functions such as overcurrent protection, fixed overvoltage clamping, adjustable undervoltage lockout (UVLO), programmable output slew rate, and thermal shutdown. These integrated features help protect downstream circuitry from abnormal voltage, excessive current, and thermal conditions.

For the TPS25926 family, the device provides a 15V fixed overvoltage clamp. It also supports adjustable soft-start functionality to help limit inrush current when power is applied. The compact 10-pin VSON (DRC) package measuring 3mm × 3mm makes TPS259260DRCR suitable for space-constrained power management designs.

Typical applications include power adapters, industrial equipment, consumer electronics, communication systems, storage equipment, and other 5V/12V systems requiring compact and reliable power-path protection.

Key Features

  • Input voltage range: 4.5V to 13.8V
  • Integrated 30mΩ pass MOSFET
  • Adjustable current limit: 2A to 5A
  • Current-limit accuracy: ±15%
  • 15V fixed overvoltage clamp
  • Overcurrent protection
  • Adjustable soft start
  • Programmable output slew rate
  • Adjustable UVLO
  • Built-in thermal shutdown
  • UL 2367 recognized
  • Operating temperature: -40°C to +85°C
  • Package: 10-pin VSON (DRC)
  • Package size: 3mm × 3mm
  • RoHS and REACH compliant

Does TPS259260DRCR restart automatically after a thermal shutdown?

TPS259260DRCR latches off after a thermal shutdown. The TPS259261 variant retries automatically. Both have a 15 V overvoltage clamp, so confirm the required restart behavior before approving a substitution. TI datasheet.
