The YC164-JR-0710KL from YAGEO is a YC-series convex thick-film chip resistor array designed to integrate multiple resistors into a compact surface-mount package, reducing PCB space and placement operations compared with individual resistors.
The YC164 configuration contains four electrically isolated resistors, R1 through R4, with eight independent terminals. Each resistor in this exact version has a resistance of 10kΩ, allowing four separate signal paths to share one compact package without a common electrical node.
The J tolerance code specifies ±5%. YAGEO specifies the YC164 series for E24 ±5% resistance values from 1Ω to 1MΩ, making the 10kΩ value a standard supported configuration.
Each resistor element is rated at 1/16W, or 62.5mW, at the specified reference temperature. Power must be derated at elevated ambient temperatures according to YAGEO’s thermal requirements.
Electrical ratings include a 50V maximum working voltage, 100V rated continuous overload voltage, and 100V dielectric withstand voltage. Actual circuit operation must satisfy both voltage and power-dissipation limits.
The specified temperature coefficient is ±200ppm/°C, and the operating-temperature range is −55°C to +155°C.
The YC164 uses a convex 8-terminal construction with overall dimensions of approximately 3.20 ±0.15mm × 1.60 ±0.15mm × 0.60 ±0.10mm and a terminal pitch of approximately 0.80 ±0.05mm. The overall footprint is commonly classified as 1206 / 3216 metric.
Construction uses a high-grade ceramic substrate and a laser-trimmed thick-film resistive element. The external terminations use matte tin over a nickel barrier, while the resistor elements are protected by an epoxy coating.
YAGEO specifies the YC/TC family with lead-free terminations, RoHS compliance, halogen-free epoxy, and MSL 1 classification.

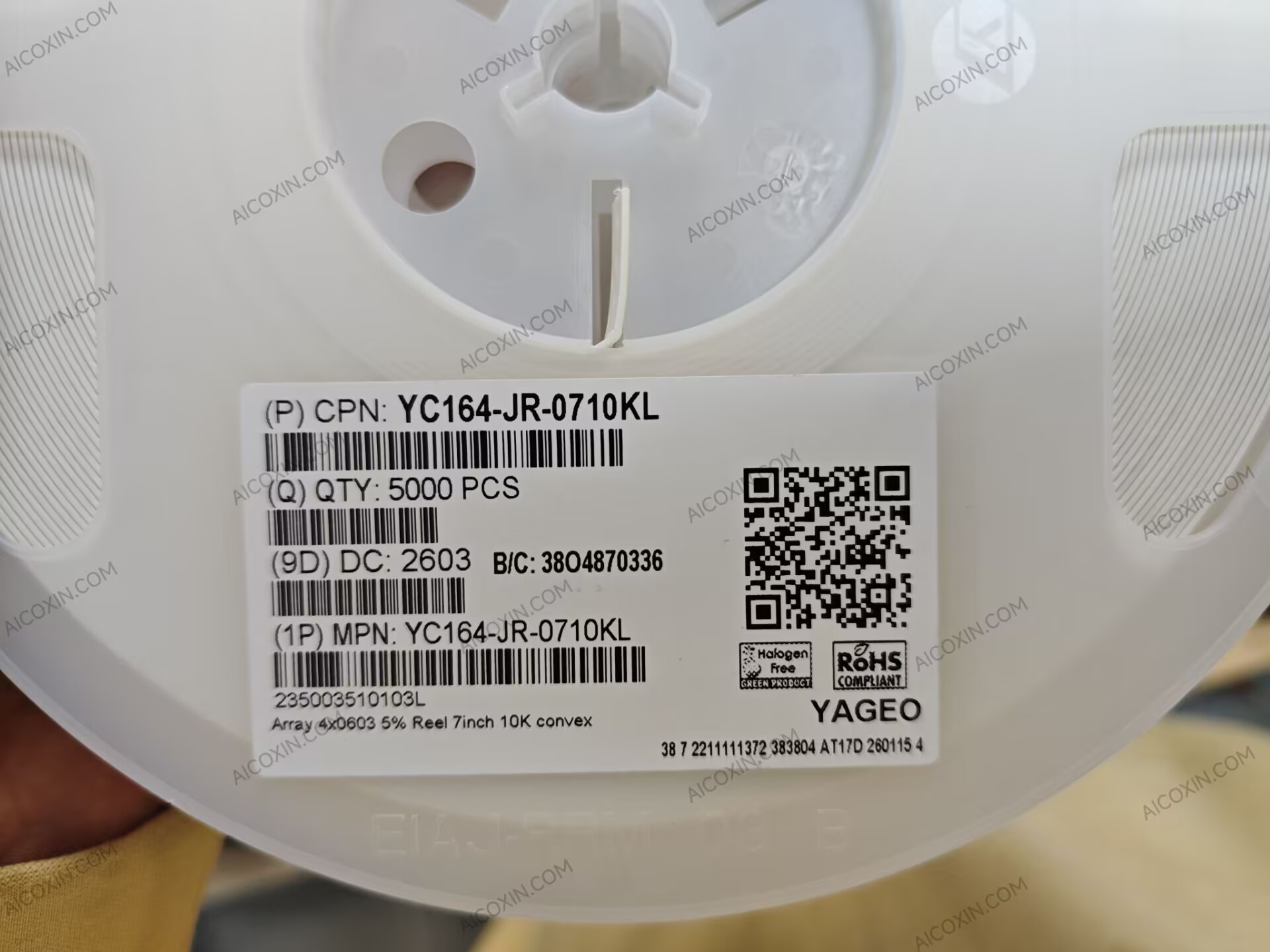

In the full part number, J = ±5% tolerance, R = paper tape reel, 07 = 7-inch reel, 10K = 10kΩ, and L is the default ordering code. For the YC164 series, the 7-inch paper-tape reel contains 5,000 pieces.
YAGEO’s current September 2025 array-resistor specification continues to include the YC164 family, but the public document does not provide a separate Active/NRND/Obsolete lifecycle field for the exact YC164-JR-0710KL ordering code.
Key Specifications
- Manufacturer: YAGEO
- Manufacturer Part Number: YC164-JR-0710KL
- Series: YC164
- Device Type: Thick Film Chip Resistor Array
- Circuit Type: Isolated
- Number of Resistors: 4
- Number of Terminals: 8
- Resistance per Element: 10kΩ
- Tolerance: ±5%
- Tolerance Code: J
- Power per Resistor: 1/16W / 62.5mW
- Temperature Coefficient: ±200ppm/°C
- Maximum Working Voltage: 50V
- Rated Continuous Overload Voltage: 100V
- Dielectric Withstand Voltage: 100V
- Operating Temperature: −55°C to +155°C
- Overall Package: 1206 / 3216 Metric
- Configuration: Convex
- Length: 3.20 ±0.15mm
- Width: 1.60 ±0.15mm
- Thickness: 0.60 ±0.10mm
- Terminal Pitch: 0.80 ±0.05mm
- Mounting Type: SMD / SMT
- Technology: Thick Film
- Termination: Matte Tin on Ni Barrier
- Lead-Free: Yes
- RoHS: Compliant
- Epoxy: Halogen-Free
- MSL: Level 1
- Packaging: Paper Tape and Reel
- Reel Size: 7 inch / 178mm
- Standard Reel Quantity: 5,000 pcs
- L Suffix: Default Ordering Code
Typical Applications
Suitable for SDRAM and DDRAM termination, laptop and desktop computers, mobile devices, telecommunications equipment, pull-up and pull-down networks, signal biasing, interface termination, and high-density PCB designs requiring multiple identical 10kΩ resistors.
