The FH34D-6S-0.5SH(50) from Hirose Electric is a low-profile FH34-series FPC/FFC connector featuring a 6-position, single-row, 0.5mm-pitch configuration with a 1.0mm connector height. The connector measures approximately 6.0mm long and 3.8mm wide, making it suitable for space-constrained electronic assemblies.
It uses a back-flip ZIF actuator with horizontal FPC/FFC insertion. The FH34D variant is designed for FPC/FFC cables with tabs, helping improve retention and reduce the risk of accidental cable withdrawal.
The connector provides top and bottom contacts, offering flexibility for different FPC/FFC contact orientations. It is designed for 0.3mm-thick FPC/FFC, with an approximate depth of 3.45mm when the actuator is open and 3.8mm when closed.
Electrical ratings are 0.5A maximum current and 50V AC/DC rated voltage. The specified operating-temperature range is −55°C to +105°C, and maximum contact resistance is 100mΩ.
Hirose lists the exact part with high-speed performance characteristics including USB 3.1, USB 4.0, PCIe Gen 3, eDP 1.3, and MIPI D-PHY 1.1, with a listed transmission rate of up to 10Gbps. Final high-speed performance depends on the complete FPC, PCB, impedance, routing, and system design.
The mating contacts use gold plating, and the connector is specified for 20 mating/unmating cycles. A solder-wicking-prevention structure helps protect the contact area during PCB soldering.

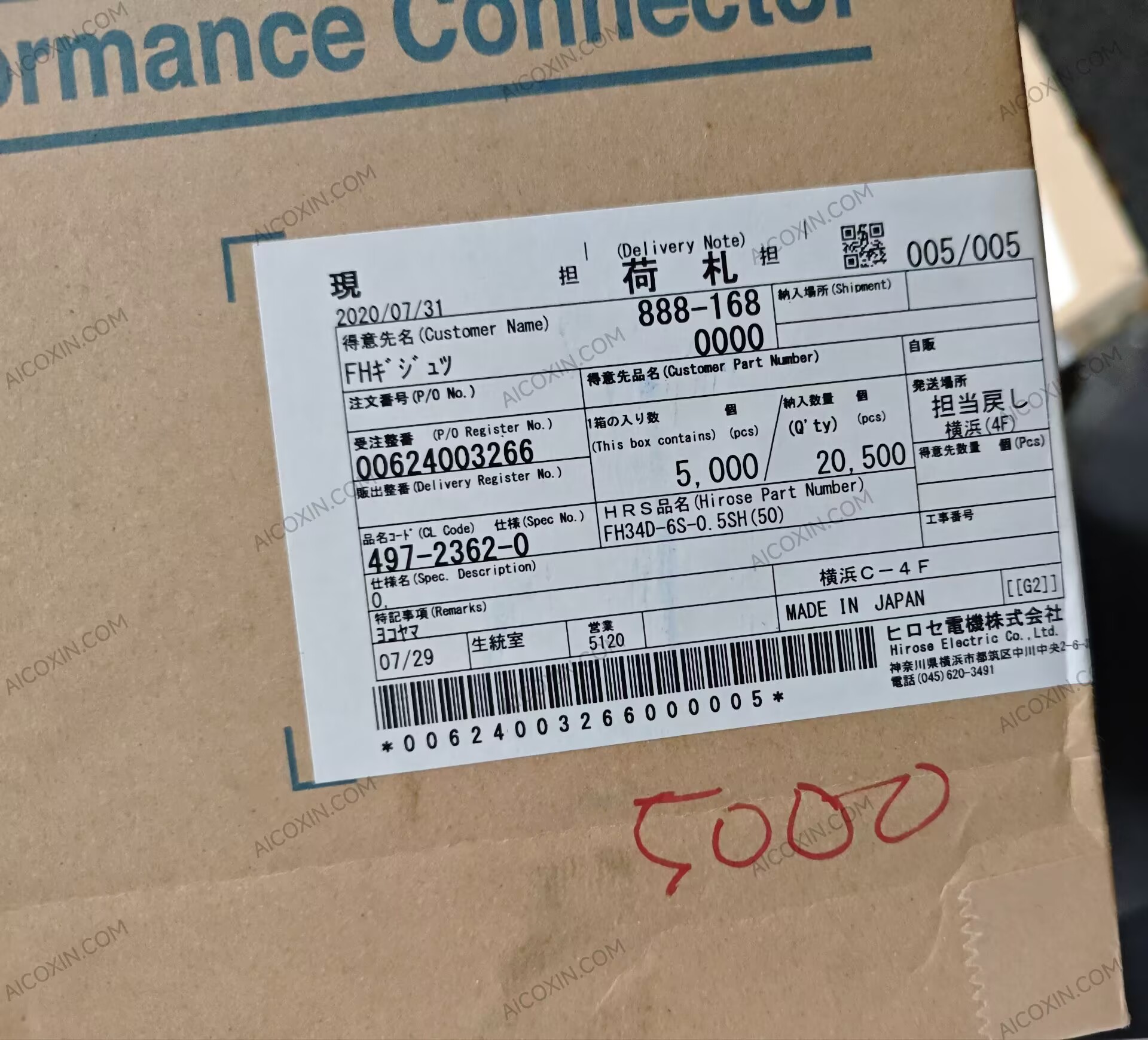

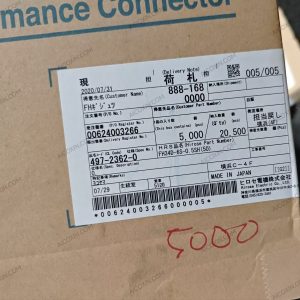

The FH34D-6S-0.5SH(50) is supplied in reel packaging for automated SMT assembly. Hirose lists a purchase quantity of 5,000 pieces, a mass of approximately 0.034g per connector, and compliance with RoHS (EU) 2015/863.
Key Specifications
- Manufacturer: Hirose Electric
- Manufacturer Part Number: FH34D-6S-0.5SH(50)
- CL Number: CL0580-1275-0-50
- Series: FH34 / FH34D
- Device Type: FPC/FFC Connector
- Connector Type: Receptacle
- Number of Positions: 6
- Number of Rows: 1
- Contact Pitch: 0.5mm
- Connector Height: 1.0mm
- Connector Length: 6.0mm
- Connector Width: 3.8mm
- Contact Orientation: Top & Bottom
- Locking Type: ZIF
- Actuator Type: Back Flip
- FPC/FFC Insertion: Horizontal
- Applicable FPC/FFC Thickness: 0.3mm
- FPC/FFC Style: Tabbed
- Open Actuator Depth: Approximately 3.45mm
- Closed Actuator Depth: Approximately 3.8mm
- Rated Current: 0.5A
- Rated Voltage: 50V AC
- Rated Voltage: 50V DC
- Operating Temperature: −55°C to +105°C
- Maximum Contact Resistance: 100mΩ
- Contact Plating: Gold
- Mating Cycles: 20
- Solder-Wicking Prevention: Yes
- Listed Transmission Rate: Up to 10Gbps
- Listed High-Speed Interfaces: USB 3.1 / USB 4.0 / PCIe Gen 3 / eDP 1.3 / MIPI D-PHY 1.1
- Mounting Type: Surface Mount
- Packaging: Reel
- Purchase Unit: 5,000 Pieces
- Mass: Approximately 0.034g
- RoHS: EU 2015/863 Compliant
Typical Applications
Suitable for LCD modules, touch panels, camera modules, notebooks, tablets, consumer electronics, industrial equipment, robotics, portable devices, and other compact FPC/FFC board-level interconnections. High-speed applications should validate signal integrity using the final PCB and flexible-cable design.
