Hirose U.FL-R-SMT-1(80) SMT RF Receptacle 50Ω 8GHz

The Hirose U.FL-R-SMT-1(80) is a compact U.FL Series straight RF coaxial receptacle designed for surface mounting on printed circuit boards. Featuring a 50-ohm characteristic impedance and an operating frequency range of DC to 8 GHz, it provides a reliable connection for antennas and high-frequency signal paths in space-constrained electronic equipment.
Its low-profile design supports mated heights from approximately 1.9 mm to 2.4 mm, depending on the selected U.FL cable plug. The receptacle occupies only approximately 7.7 mm² of PCB area, making it suitable for compact wireless and portable devices. Tape-and-reel packaging supports automated pick-and-place assembly.
The connector features a silver-plated phosphor-bronze shell, a gold-plated brass center contact, and a flame-retardant LCP insulator rated UL94 V-0. It is rated for up to 30 mating cycles and operates from -40°C to +105°C.

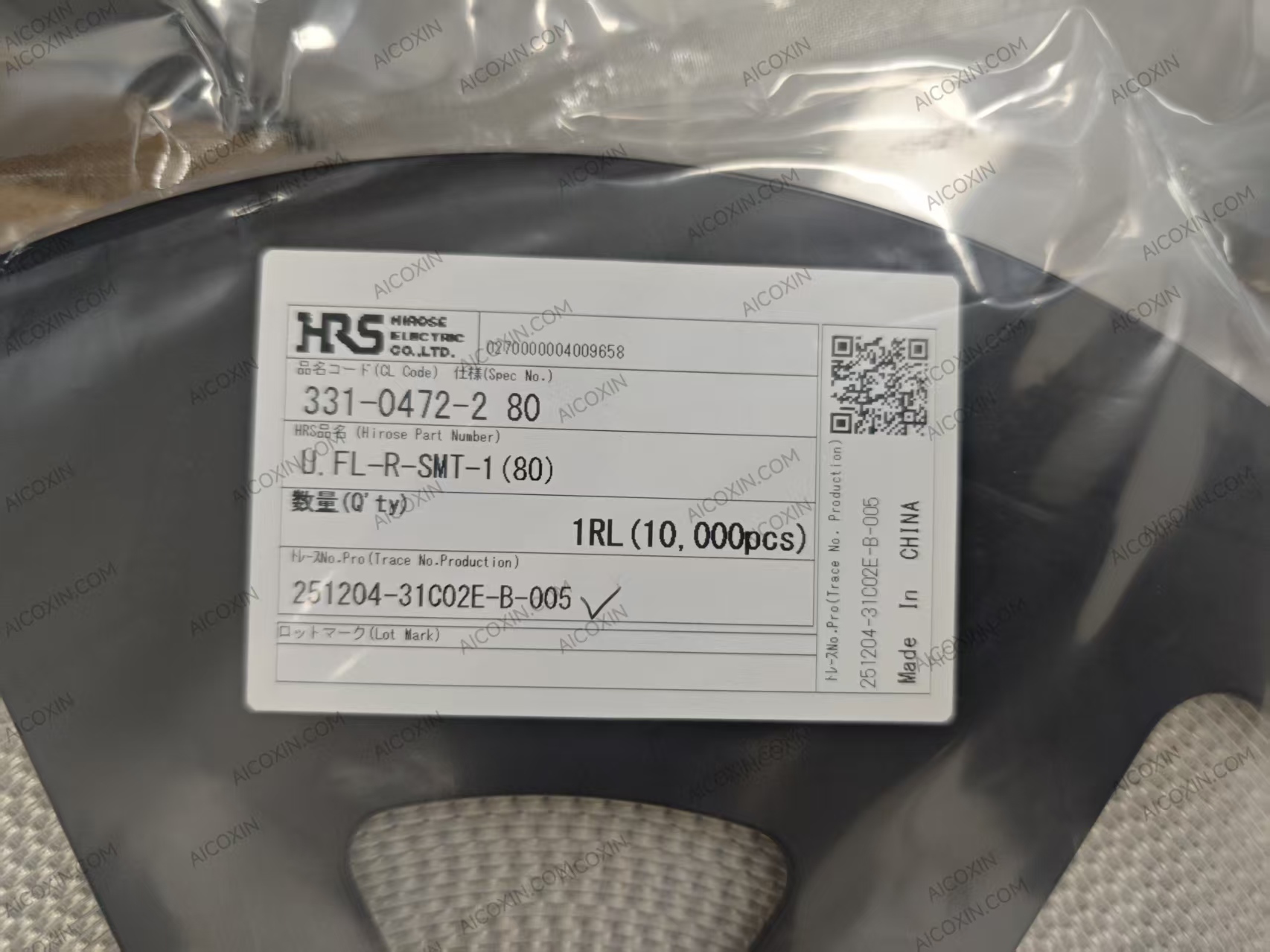

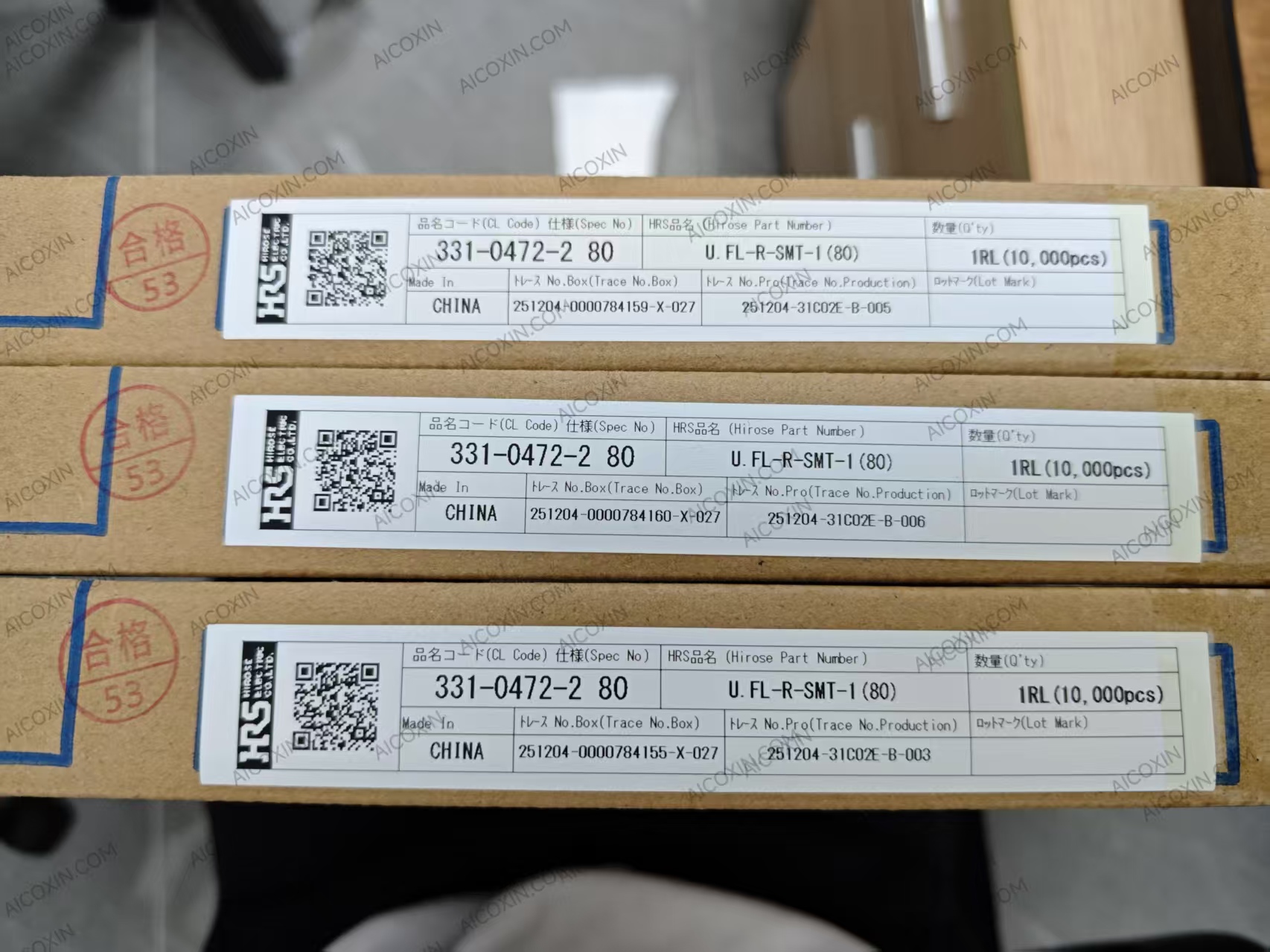

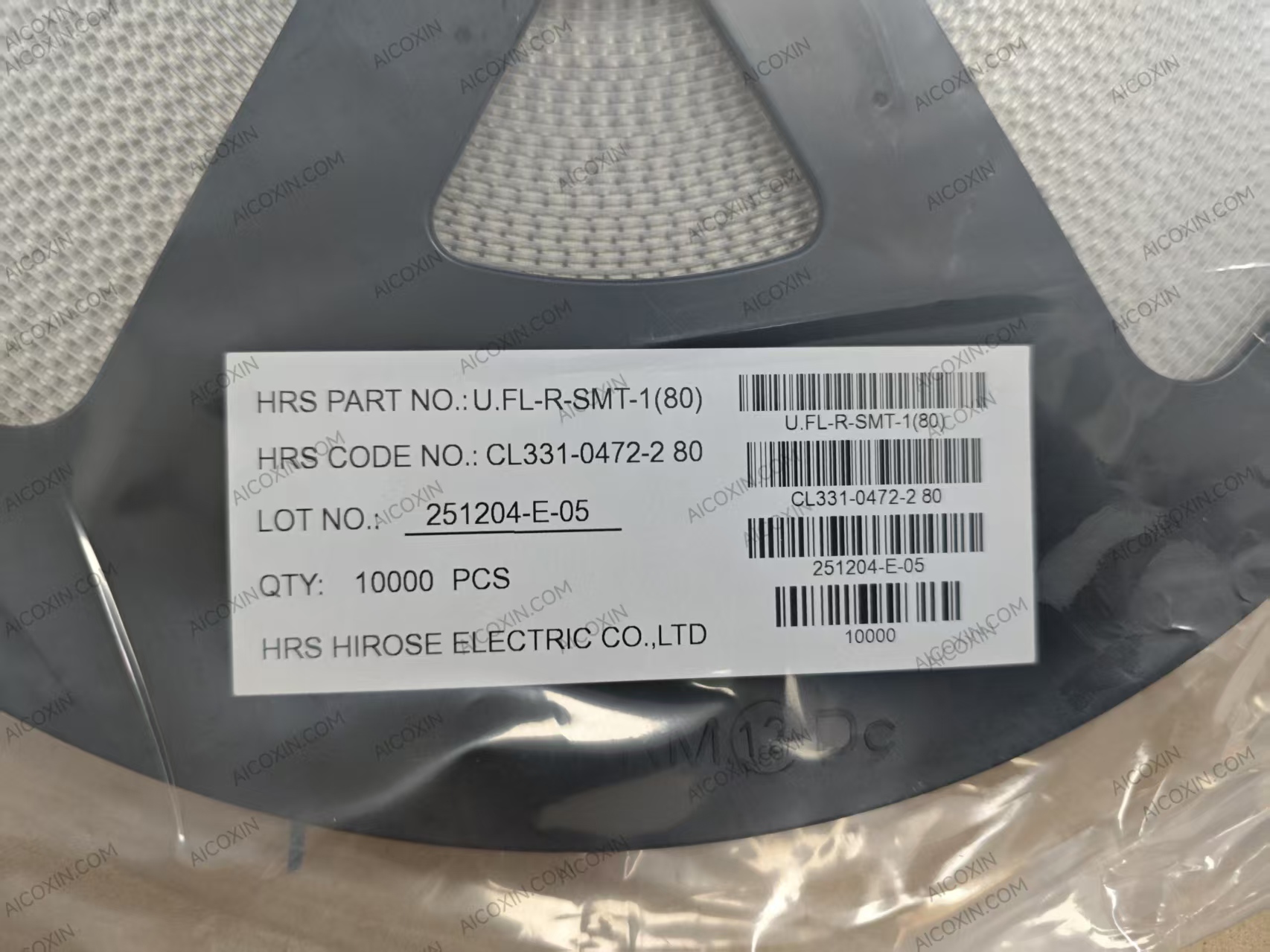

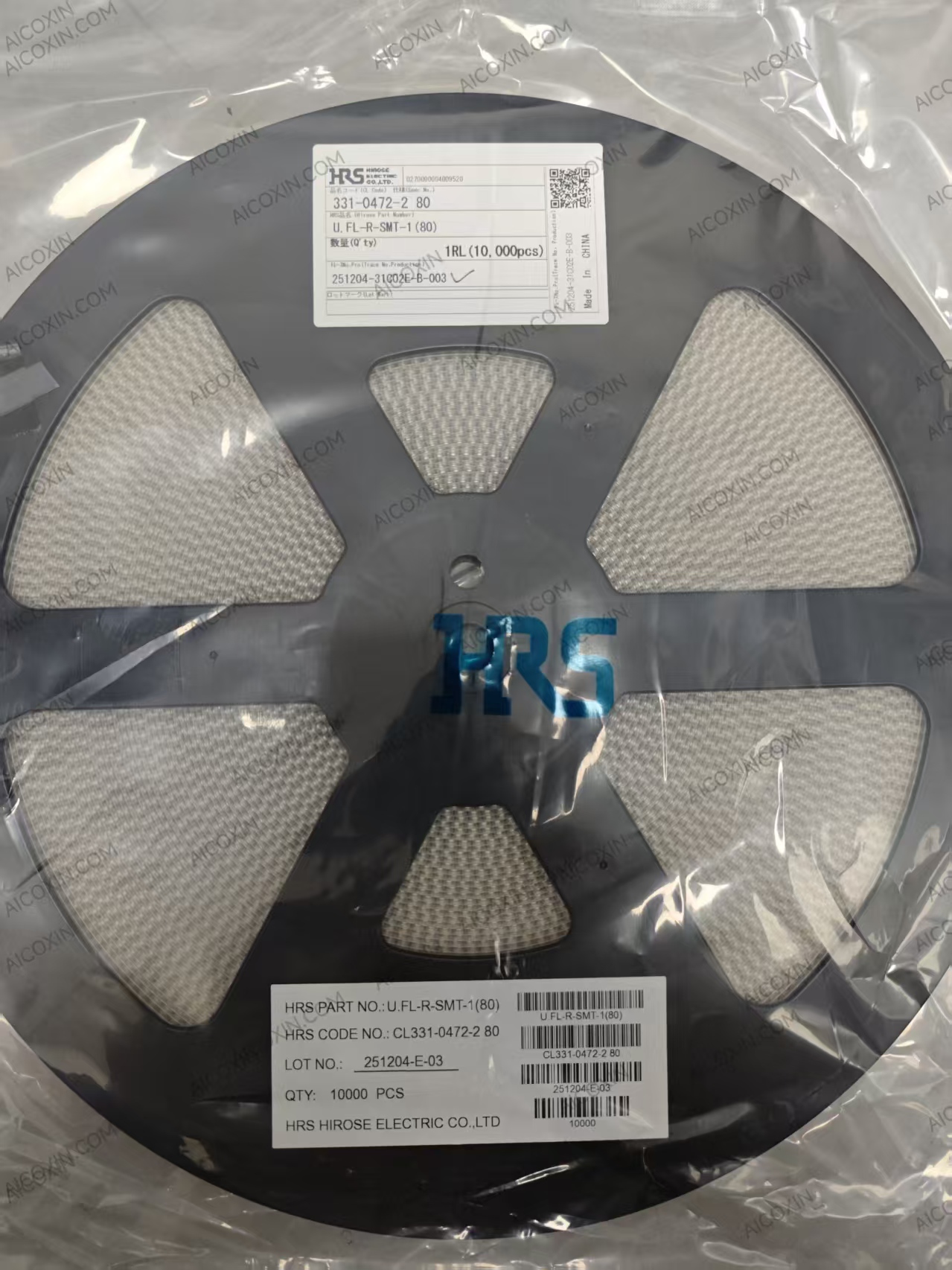

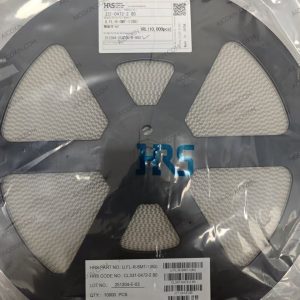

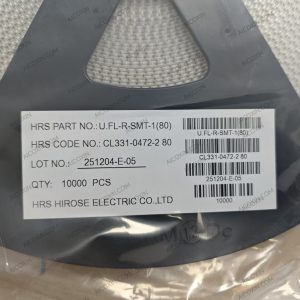

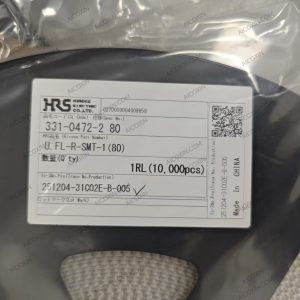

The U.FL-R-SMT-1(80) is supplied in reels of 10,000 pieces and is commonly used in Wi-Fi equipment, Bluetooth devices, GPS modules, car navigation systems, drones, wireless communication products, and electronic measuring instruments.
