The LITEON LTST-C171KGKT is a top-view, single-color SMD chip LED from LITEON’s 0805 series. Its ultra-thin package measures approximately 2.00 × 1.25 × 0.80mm, making it suitable for compact PCB designs requiring status indication, backlighting, or visual signaling.
The device emits yellow-green light at 571nm under a 20mA test condition. LITEON’s current product page specifies a luminous intensity range of 18 to 71mcd at 20mA.
The LTST-C171KGKT uses an ultra-bright AlInGaP LED chip and a super-thin 0.80mm-high package. Its surface-mount construction is designed for automated PCB assembly and standard reflow production processes.

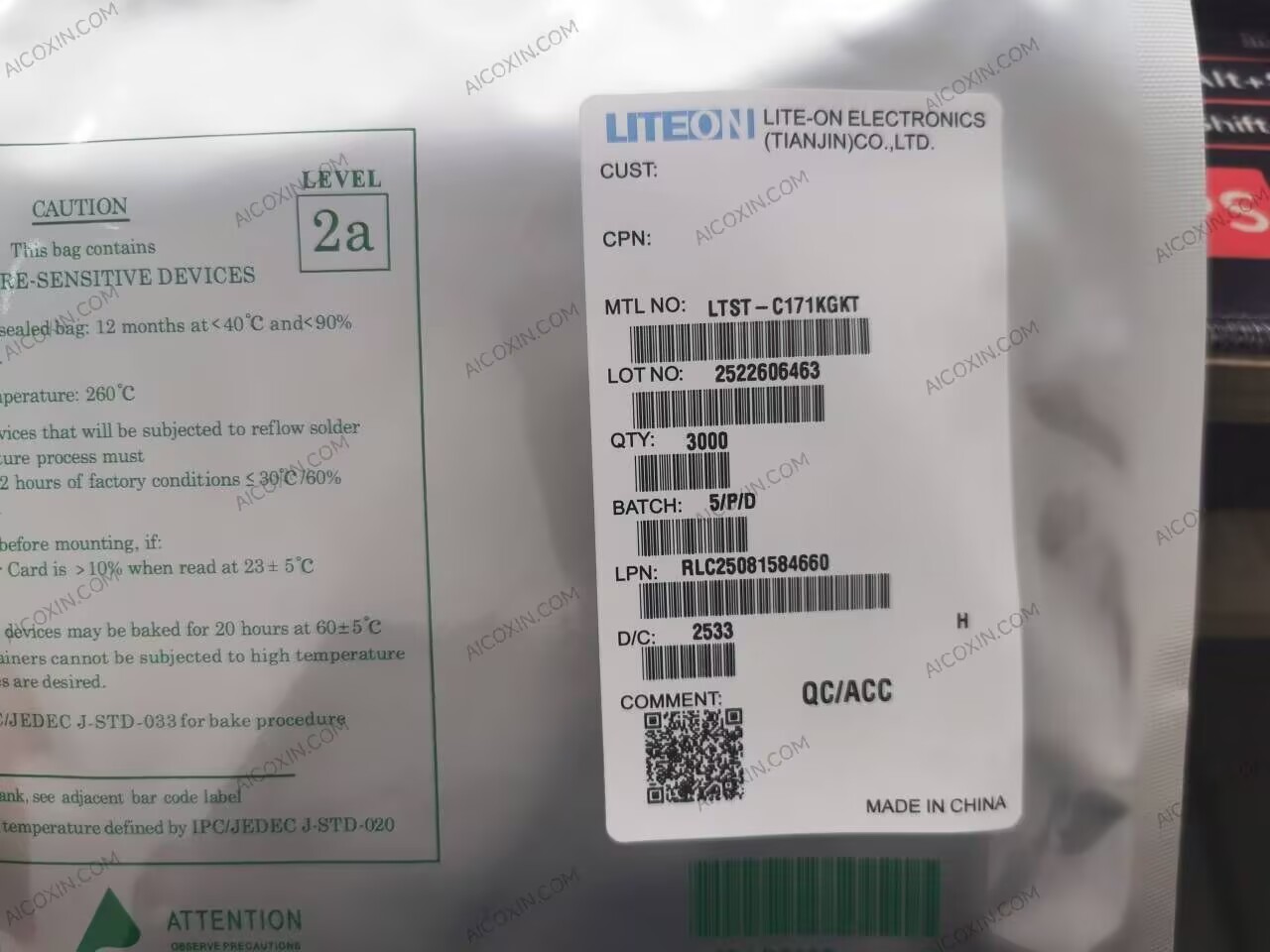

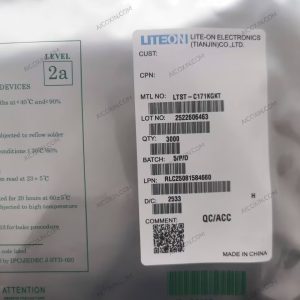

LITEON specifies 8mm tape on 7-inch diameter reels for this device family, making it suitable for automated high-volume assembly in consumer electronics, industrial controls, communications equipment, and indicator applications.
Key Features:
- Manufacturer: LITEON
- Part Number: LTST-C171KGKT
- Device Type: Single-Color SMD Chip LED
- Emission Type: Top View
- Color: Yellow Green
- Wavelength: 571nm at 20mA
- Luminous Intensity: 18 to 71mcd at 20mA
- LED Chip: AlInGaP
- Package Series: 0805
- Dimensions: Approx. 2.00 × 1.25 × 0.80mm
- Height: 0.80mm
- Mounting Type: Surface Mount
- Automatic Placement Compatible
- Tape Width: 8mm
- Reel Diameter: 7 inches
- Applications: Status indication, displays, backlighting and compact electronics.
