The MMA02040C1501FB000 from Vishay Beyschlag is a professional-grade thin film cylindrical MELF resistor featuring a resistance of 1.5kΩ, a tolerance of ±1%, and a temperature coefficient of ±50ppm/K. It comes in a 0204 DIN size / RC3715M metric size and offers a maximum rated power dissipation of 0.4W at 70°C in power operation mode, with a maximum operating voltage of 200V AC RMS/DC.
Manufactured using advanced metal film technology, the resistor provides excellent long-term stability, strong pulse-load capability, and intrinsic sulfur resistance. It is AEC-Q200 qualified and approved in accordance with EN 140401-803, making it suitable for automotive electronics, telecommunications, industrial equipment, medical devices, precision measurement, and power-management applications.
Key Specifications:
- Manufacturer: Vishay / Vishay Beyschlag
- Manufacturer Part Number: MMA02040C1501FB000

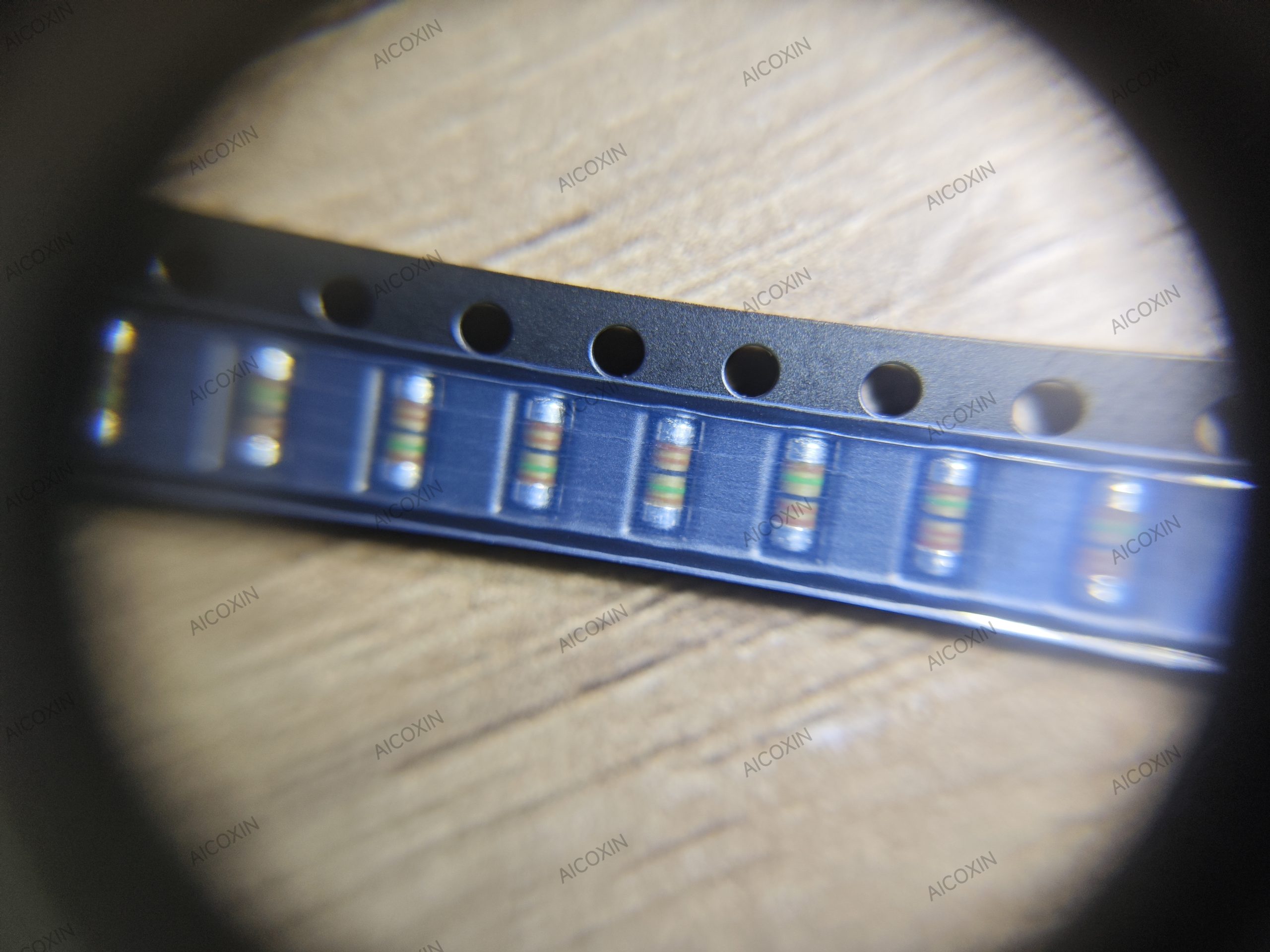

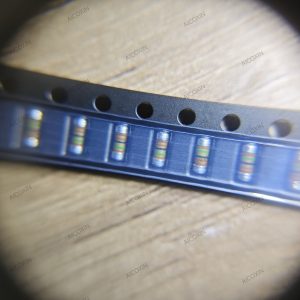

- Resistor Type: Thin Film Cylindrical MELF Resistor
- Resistance: 1.5kΩ
- Resistance Tolerance: ±1%
- Temperature Coefficient: ±50ppm/K
- Maximum Rated Power: 0.4W at 70°C, power mode
- General Operation Power: 0.25W
- Maximum Operating Voltage: 200V AC RMS/DC
- DIN Size: 0204
- Metric Size Code: RC3715M
- Dimensions: Approximately 3.6 × 1.4mm
- Operating Temperature: -55°C to +155°C
- Mounting Type: Surface Mount, SMD/SMT
- Packaging Code: B0

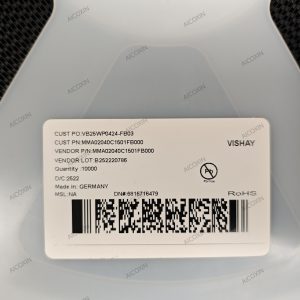

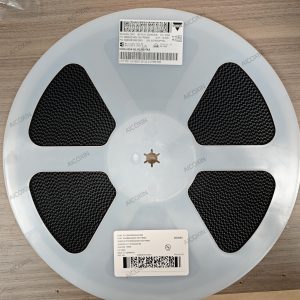

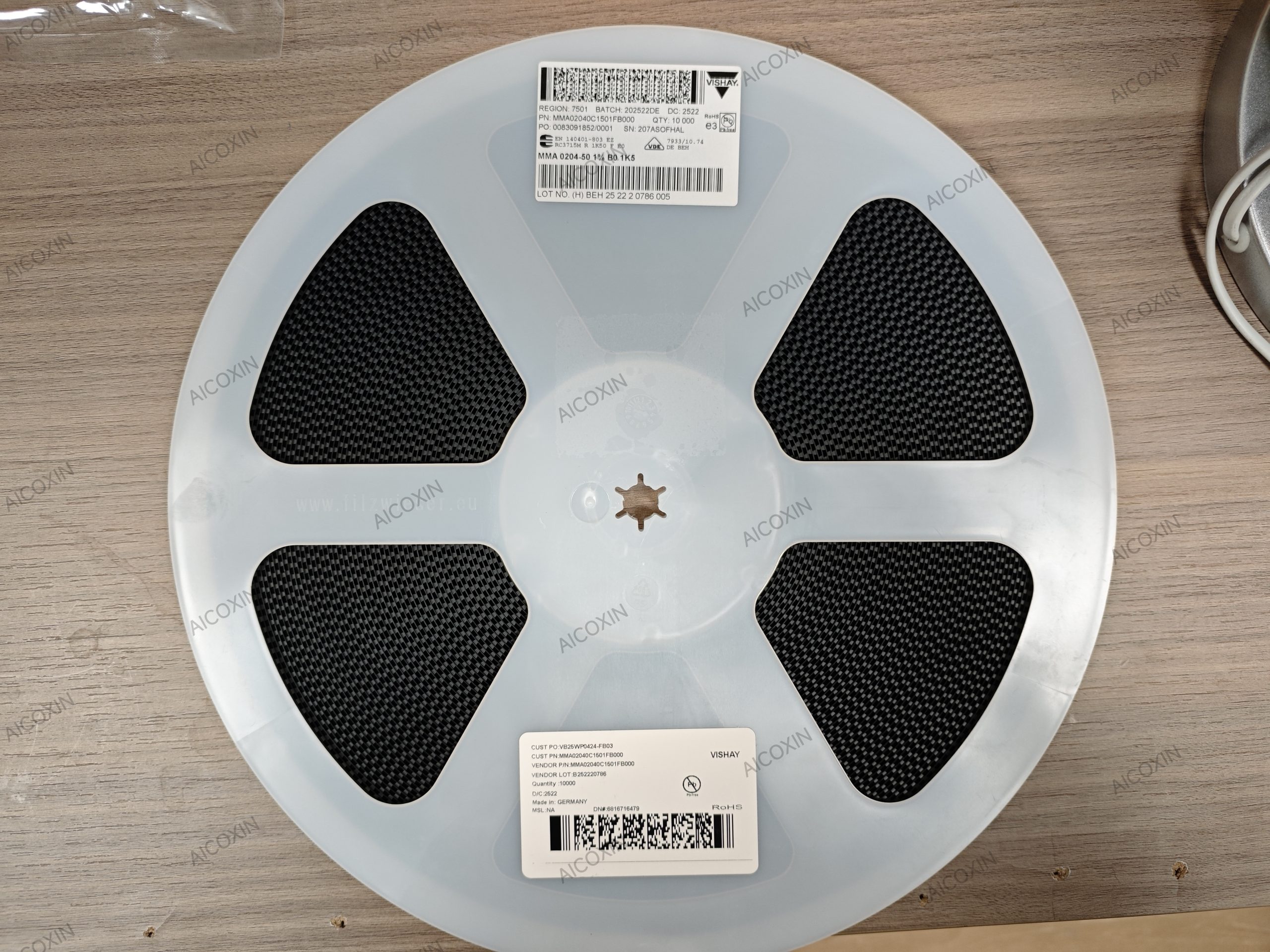

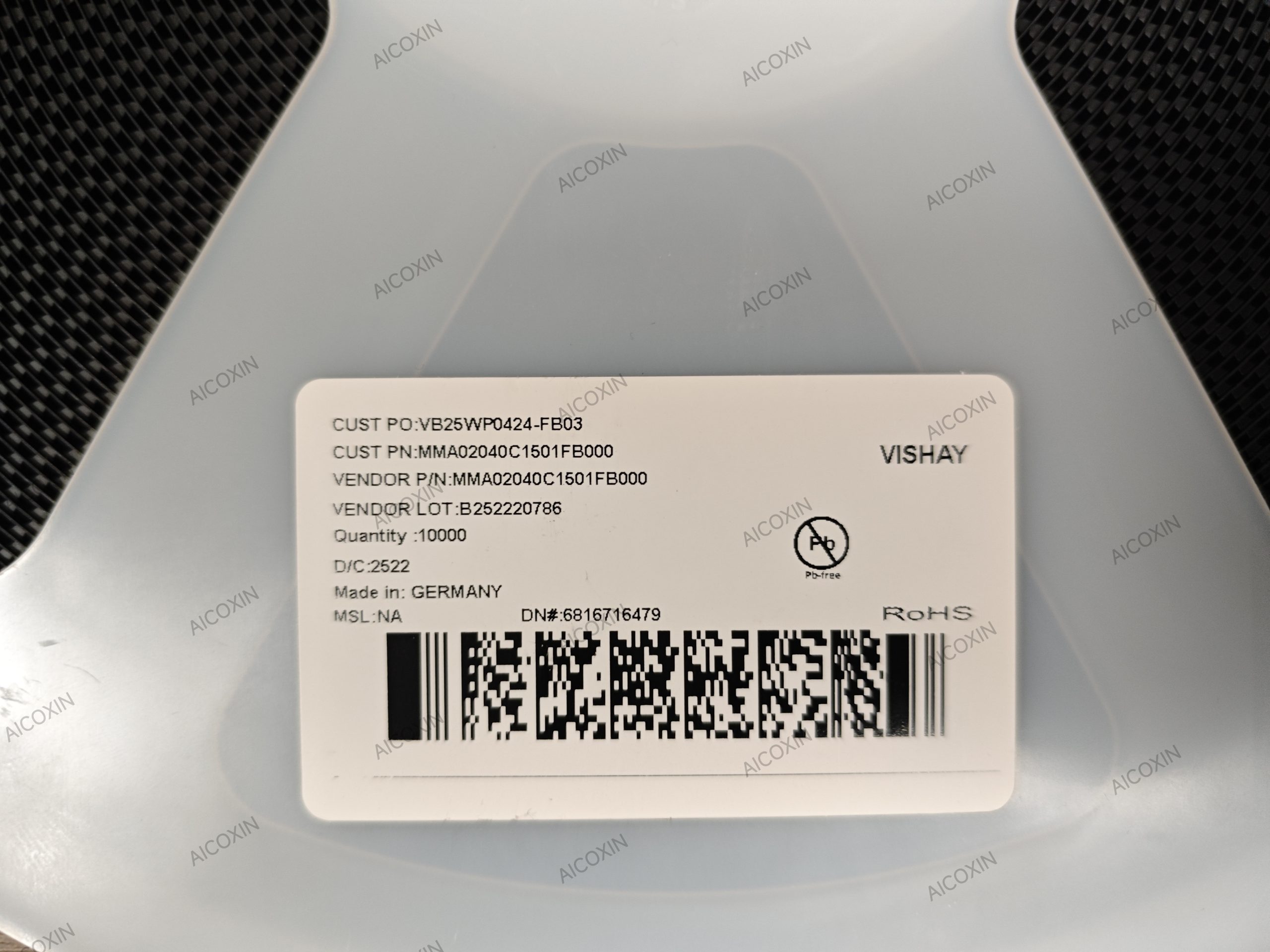

- Standard Packaging: 10,000 pieces on a 13-inch reel
- Qualification: AEC-Q200 and IECQ-CECC / EN 140401-803
- Environmental Compliance: RoHS compliant, halogen-free and PFAS-free
- Typical Applications: Automotive, telecommunications, industrial and medical equipment

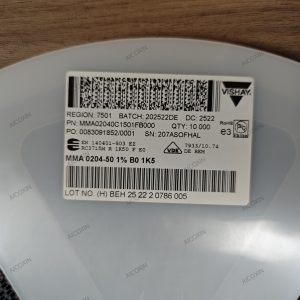

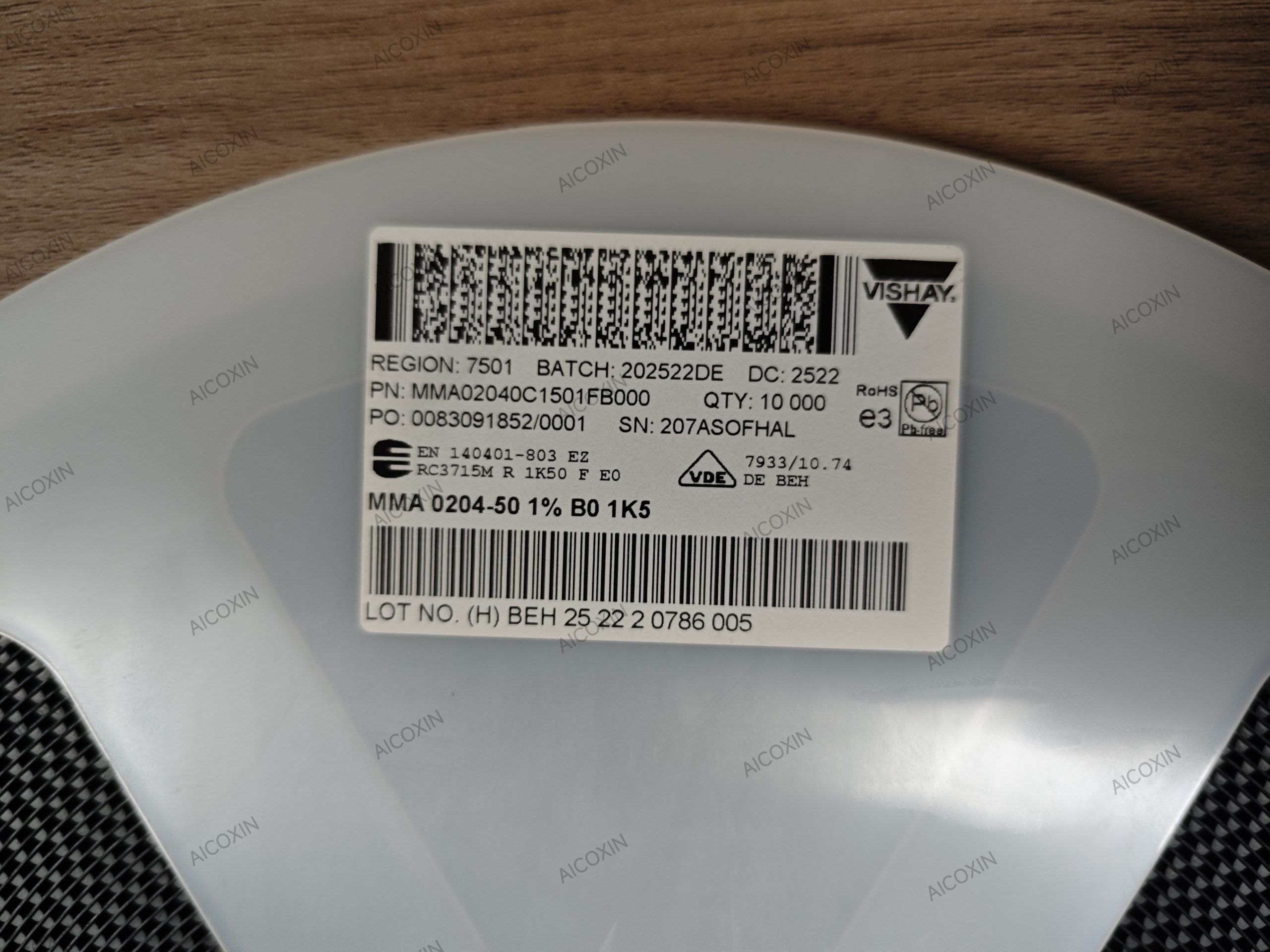

The official part-number structure confirms that C represents ±50ppm/K, 1501 represents 1.5kΩ, F represents ±1% tolerance, and B0 represents the 10,000-piece reel packaging option.
