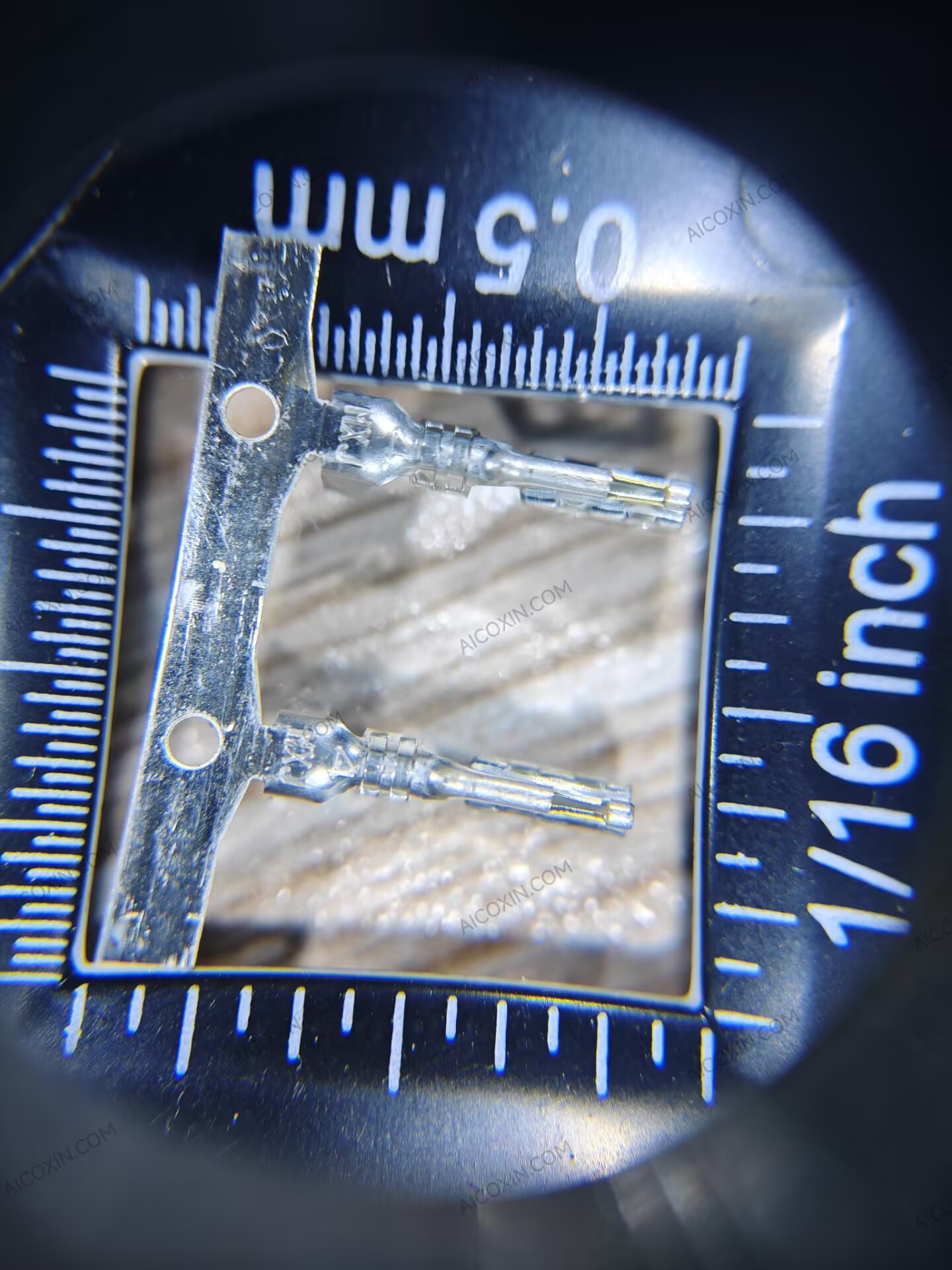

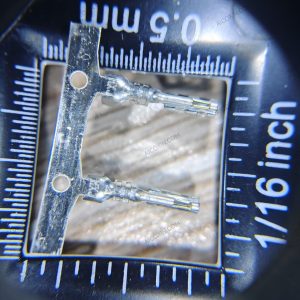

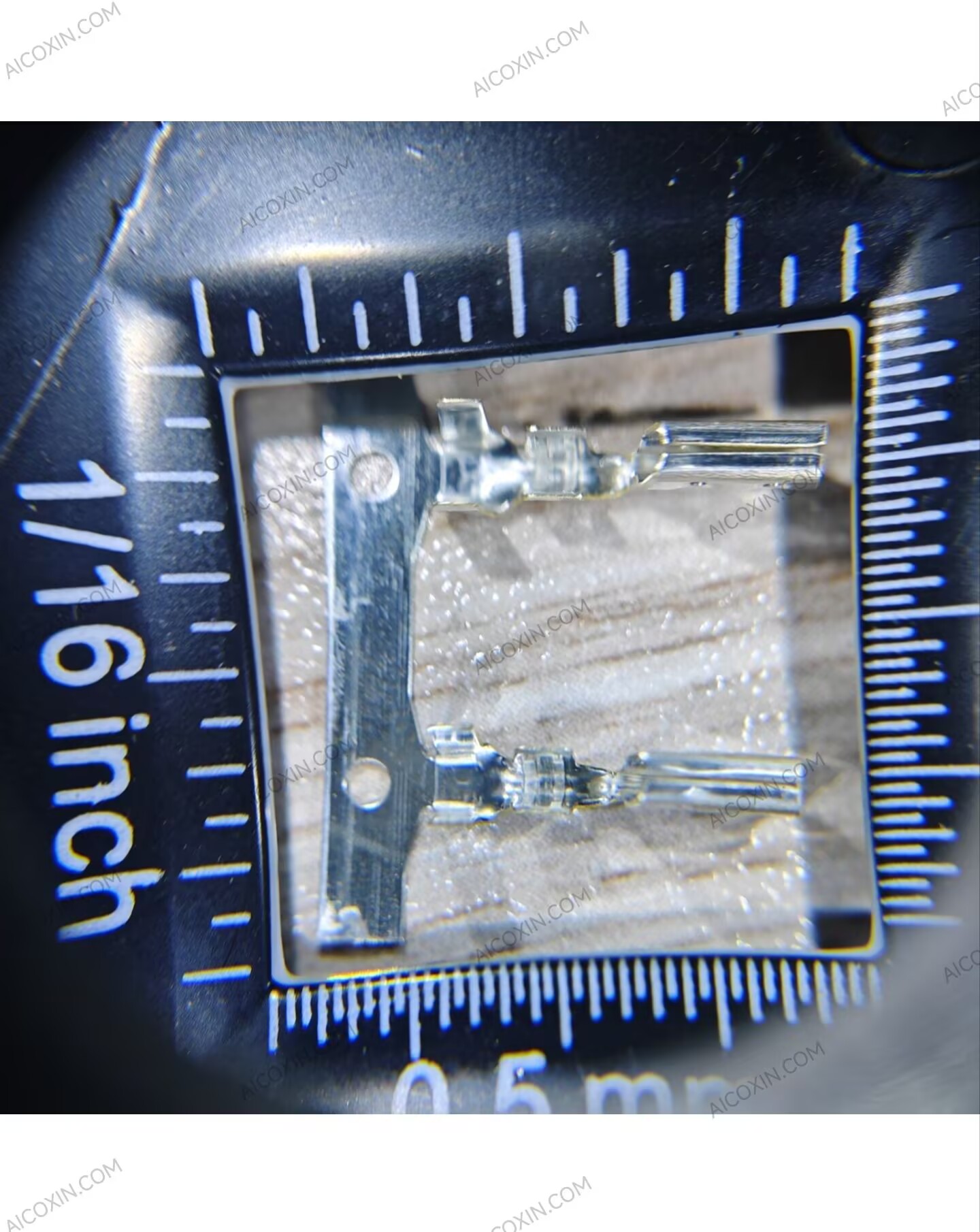

The 08-70-1031 is a female crimp terminal manufactured by Molex, belonging to the SPOX 5194 series. Designed for wire-to-board and wire-to-wire connector assemblies, this terminal provides a reliable electrical contact solution for compatible Molex SPOX connector housings.
The terminal features a brass contact body with tin plating, offering a practical combination of electrical conductivity and corrosion resistance for general electronic interconnection applications. Its crimp termination design supports secure wire attachment and efficient assembly in automated or manual wiring harness production.
The Molex 08-70-1031 supports wire sizes from 18 AWG to 24 AWG and has a rated current of up to 7A and a voltage rating of 250V, subject to the applicable connector system and operating conditions. It is designed for use with compatible Molex 5195, 5196, 5197, 5198, and 5199 series connector housings.
With an operating temperature range of -40°C to +105°C, this terminal is suitable for a variety of industrial, automotive, communications, medical, and consumer electronic applications where dependable crimp connections are required.
The 08-70-1031 is supplied in reel packaging for production efficiency and is suitable for high-volume connector assembly and wire harness manufacturing.
Key Features:
- Manufacturer: Molex
- Part Number: 08-70-1031
- Product Series: SPOX 5194
- Product Type: Female Crimp Terminal
- Contact Type: Socket
- Contact Material: Brass
- Contact Plating: Tin
- Compatible Wire Gauge: 18–24 AWG
- Rated Current: 7A
- Rated Voltage: 250V
- Termination Method: Crimp
- Operating Temperature: -40°C to +105°C
- Compatible Housings: Molex 5195, 5196, 5197, 5198, and 5199 series
- Mounting Style: Cable Mount / Free Hanging
- Packaging: Reel
- Standard Reel Quantity: 5,000 Pieces
- RoHS Compliance: Verify against the applicable manufacturer documentation
Typical Applications:
- Wire harness assemblies
- Industrial control equipment
- Automotive electrical systems
- Consumer electronics
- Communications and networking equipment
- Medical electronic equipment
- General-purpose electrical interconnections
- High-volume connector assembly
The Molex 08-70-1031 combines a tin-plated brass contact, a secure crimp termination, and compatibility with the SPOX connector family to support reliable electrical connections in a variety of electronic systems.
Its 18–24 AWG wire compatibility and reel packaging make it suitable for electronic manufacturers, cable assembly suppliers, and component procurement professionals seeking dependable connector terminals.
Note: This product is an individual female crimp terminal, not a complete connector. Compatible connector housings must be purchased separately.
