The CL31A106KBHNNNE from Samsung Electro-Mechanics is a general-purpose multilayer ceramic capacitor (MLCC) with a nominal capacitance of 10µF, ±10% tolerance, and a 50VDC rated voltage. It is suitable for power-supply filtering, decoupling, bypassing and general electronic circuits.
The capacitor uses an X5R Class II dielectric with an operating temperature range of -55°C to +85°C. Samsung’s official MLCC coding guide specifies a capacitance change of ±15% over the X5R temperature range relative to the 25°C reference value.
CL31A106KBHNNNE is supplied in the standard 1206 inch / 3216 metric footprint and measures 3.20 ±0.20 × 1.60 ±0.20 × 1.60 ±0.20mm. Its compact surface-mount construction makes it suitable for automated PCB assembly and high-density electronic designs.

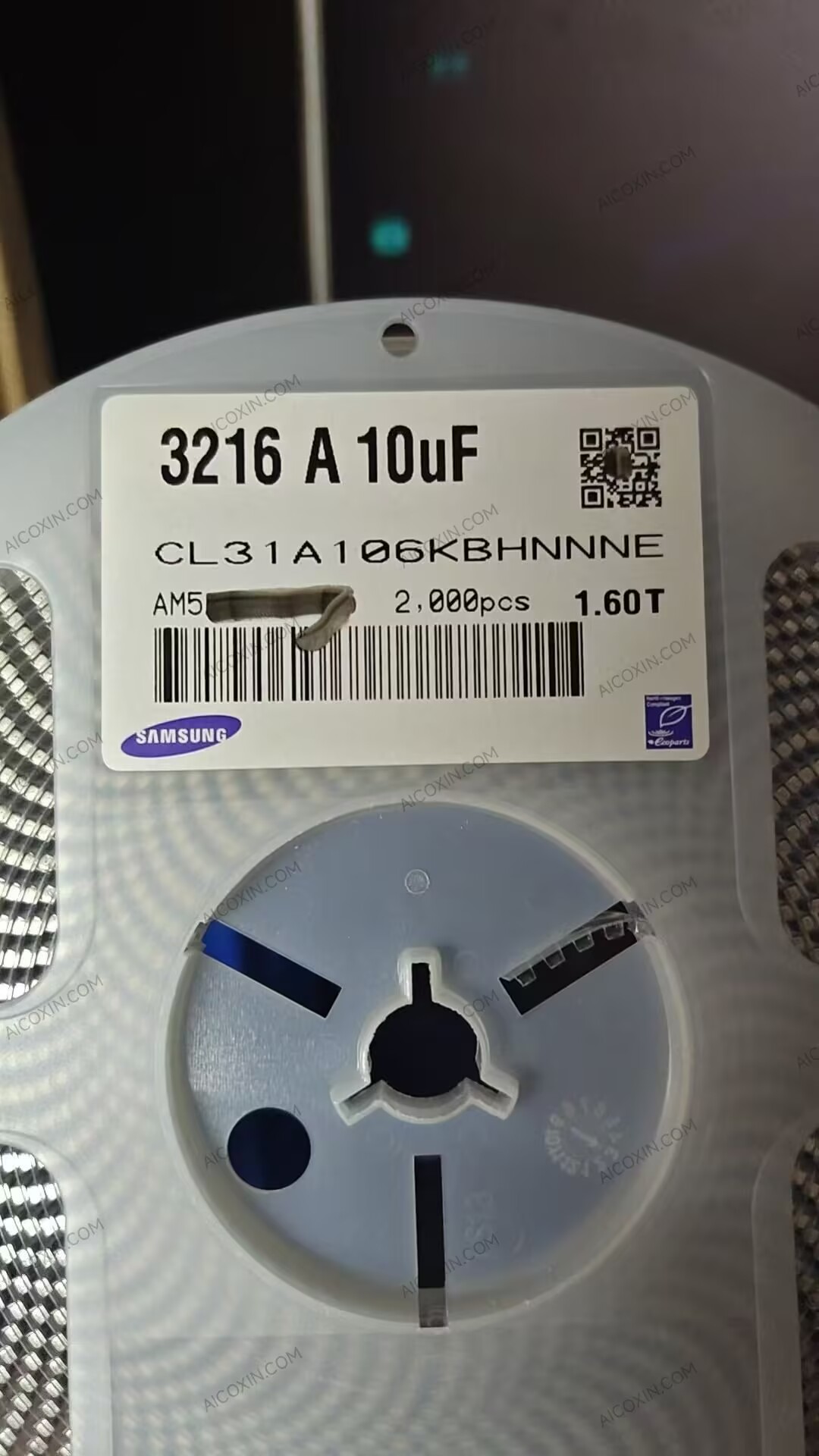

The final E in the ordering code identifies 7-inch embossed tape packaging. Samsung Electro-Mechanics lists CL31A106KBHNNNE as an available ordering option, with RoHS and REACH compliance and current production status of Mass Production.
Key Specifications:
- Brand: Samsung Electro-Mechanics
- Part Number: CL31A106KBHNNNE
- Product Type: Multilayer Ceramic Capacitor / MLCC
- Grade: General Standard
- Capacitance: 10µF
- Capacitance Tolerance: ±10%
- Rated Voltage: 50VDC
- Dielectric / TCC: X5R
- Operating Temperature: -55°C to +85°C
- Capacitance Change vs. Temperature: ±15%
- Case Size: 1206 / 3216
- Length: 3.20 ±0.20mm
- Width: 1.60 ±0.20mm
- Thickness: 1.60 ±0.20mm
- Mounting Type: SMD / SMT
- Packaging Code: E
- Packaging Type: Embossed Tape
- Reel Size: 7 Inch
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Product Status: Mass Production.
