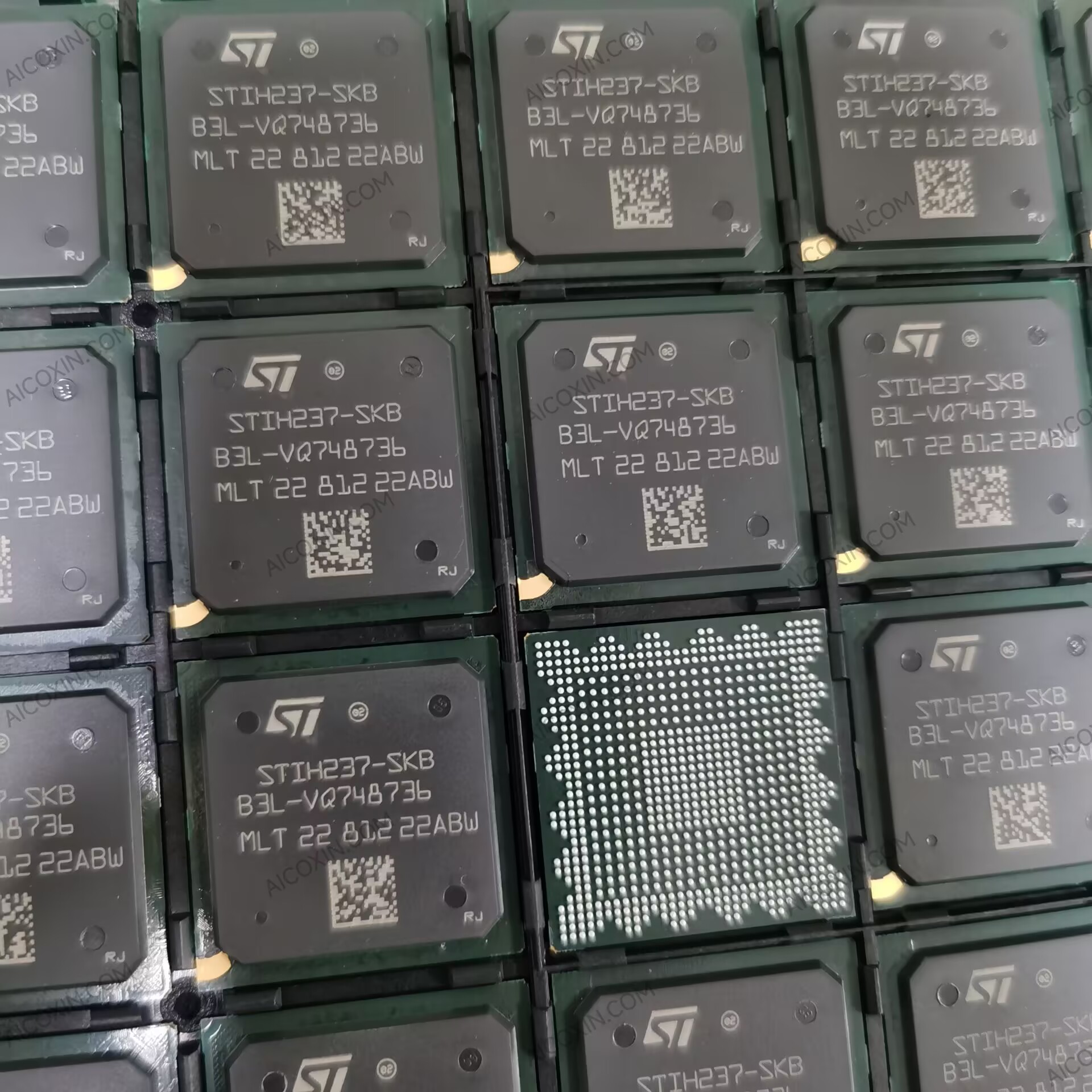

The STIH237-SKB belongs to STMicroelectronics’ STiH237 family of highly integrated application-specific processors for high-definition satellite set-top boxes. It combines application processing, audio and video decoding, display processing, satellite demodulation, connectivity, security, and low-power standby control for broadcast and hybrid broadcast-broadband receivers.
The device integrates an ST40 application CPU with 32KB instruction cache, 32KB data cache, and 256KB of L2 cache. A 16-bit local-memory interface supports DDR2 and DDR3 memory for middleware, user-interface, and high-definition content-processing workloads.
Its video subsystem supports hardware decoding of H.264, MPEG-2, VC-1, and AVS high-definition streams. Integrated resizing, de-interlacing, and high-quality display processing are included, together with 3DTV decoding and display support compatible with HDMI 1.4a.
The integrated single-stream satellite receiver supports DVB-S2 QPSK/8PSK, DVB-S QPSK, and legacy DirecTV transmission standards. Channel demodulation and forward-error correction are implemented on-chip, reducing the number of external components required in a satellite receiver.
Connectivity includes two USB 2.0 host ports, Ethernet MAC with an integrated PHY, MII/RMII/TMII connectivity, an SD/MMC/SDIO interface, and PCI Express. These interfaces support external storage, network controllers, wireless modules, memory cards, and other set-top-box peripherals.
Secure boot is supported from SLC NAND Flash or serial NOR Flash, with an eMMC boot option. An integrated standby controller operates in a separate power island and supports secure hibernation and fast resume, targeting passive set-top-box standby consumption below 0.5W.
STMicroelectronics currently classifies the STiH237 as Obsolete and Out of Production. The STIH237-SKB is therefore primarily suitable for legacy set-top-box maintenance, board repair, and existing-system replacement inventories rather than new designs.
Key Specifications
- Manufacturer: STMicroelectronics
- Manufacturer Part Number: STIH237-SKB
- Base Product: STiH237
- Device Type: HD Satellite Set-Top Box Processor SoC
- Application Processor: ST40 CPU
- L1 Instruction Cache: 32KB
- L1 Data Cache: 32KB
- L2 Cache: 256KB
- Memory Interface: 16-Bit LMI
- External Memory Support: DDR2 and DDR3
- Video Decoding: H.264, MPEG-2, VC-1, and AVS
- 3D Video Support: HDMI 1.4a Compatible
- Video Processing: Resizing, De-Interlacing, and Display Processing
- Satellite Standards: DVB-S and DVB-S2
- DVB-S Modulation: QPSK
- DVB-S2 Modulation: QPSK and 8PSK
- Forward-Error Correction: Integrated FEC
- USB Connectivity: Two USB 2.0 Host Ports
- Network Features: Ethernet MAC and Integrated PHY
- Ethernet Interfaces: MII, RMII, and TMII
- Memory-Card Interface: SD/MMC/SDIO
- Expansion Interface: PCI Express
- Boot Media: SLC NAND, Serial NOR, and Optional eMMC
- Standby Function: Integrated Low-Power Standby Controller
- Passive Standby Target: Below 0.5W
- Target Systems: Satellite and Hybrid HD Set-Top Boxes
- Product Status: Obsolete / Out of Production
Typical Applications
Suitable for DVB-S and DVB-S2 high-definition satellite receivers, pay-TV terminals, hybrid broadcast-broadband set-top boxes, legacy digital-TV equipment, and board-level repair. New designs should evaluate modern processor availability, software support, conditional-access compatibility, memory requirements, and PCB redesign costs.
