The TCLT1003 from Vishay is a single-channel phototransistor-output optocoupler consisting of a gallium-arsenide infrared-emitting diode optically coupled to a phototransistor. Its four-lead SOP-4L long mini-flat package provides electrical isolation between input-control circuitry and the output signal path. Typical applications include switch-mode power supplies, computer peripheral interfaces, and microprocessor-system interfaces.
The device provides a specified current-transfer-ratio range of 100% to 200% at IF=10mA and VCE=5V. At a lower input current of 1mA and VCE=5V, CTR is 34% minimum and 70% typical, supporting isolated status, feedback, and low-speed control signals.
The phototransistor output has a 70V collector-to-emitter voltage rating, a 50mA continuous collector-current rating, and a 100mA peak collector-current rating. Maximum collector-to-emitter saturation voltage is 0.3V at IF=10mA and IC=1mA.
The input infrared LED supports up to 60mA continuous forward current and a 1.5A short-duration surge current. At IF=50mA, forward voltage is 1.25V typical and 1.6V maximum. An external current-limiting resistor is required in normal applications.
Isolation ratings include 5000Vrms isolation-test voltage, a 1050V repetitive peak isolation voltage, and an 8kV rated impulse voltage. The package provides 8mm clearance, 8mm creepage distance, and 0.40mm internal insulation distance.
Typical cutoff frequency is 110kHz, and typical coupling capacitance is only 0.3pF. Under nonsaturated switching conditions, typical turn-on and turn-off times are 6μs and 5μs. Under the specified saturated conditions, typical turn-on and turn-off times are 9μs and 10μs.
The operating ambient-temperature range is −55°C to +100°C, with 250mW maximum total power dissipation. The SOP-4L package measures approximately 10.2mm long, up to 4.1mm wide, and up to 2.3mm high, with a nominal 2.54mm lead pitch.

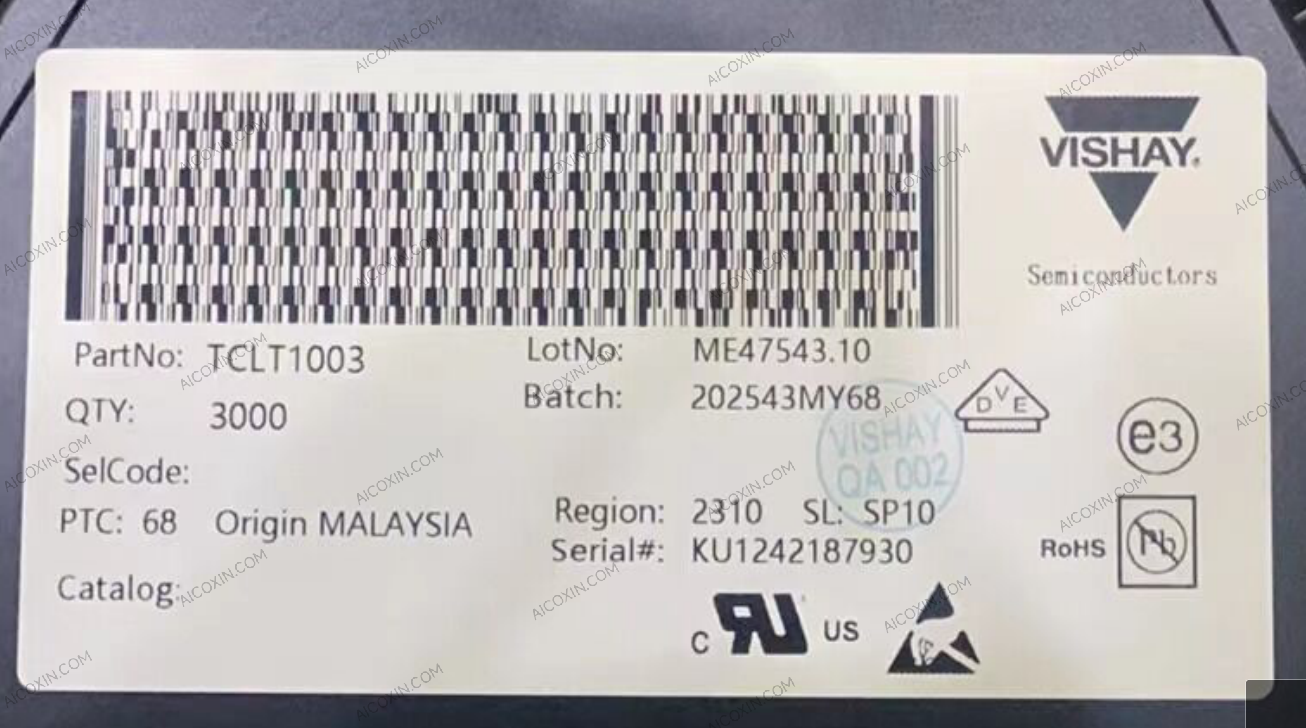

The component is supplied exclusively on tape and reel, with 3,000 units per reel. It is classified as MSL 1 and HBM Class 2 and carries UL, cUL, VDE, BSI, FIMKO, and CQC approvals. The series is lead-free, RoHS compliant, and halogen-free.
Key Specifications
- Manufacturer: Vishay
- Manufacturer Part Number: TCLT1003
- Product Family: TCLT100
- Device Type: Phototransistor-Output Optocoupler
- Number of Channels: One
- Input Type: DC
- Input Device: Gallium-Arsenide Infrared LED
- Output Type: Phototransistor
- Current Transfer Ratio: 100% to 200%
- CTR Conditions: IF=10mA and VCE=5V
- Low-Current CTR: 34% Minimum and 70% Typical at IF=1mA
- Isolation Test Voltage: 5000Vrms
- Repetitive Peak Isolation Voltage: 1050V
- Rated Impulse Voltage: 8kV
- Collector-to-Emitter Voltage: 70V
- Emitter-to-Collector Voltage: 7V
- Continuous Collector Current: 50mA
- Peak Collector Current: 100mA
- Maximum Saturation Voltage: 0.3V
- Maximum LED Forward Current: 60mA
- LED Surge Current: 1.5A
- Typical Forward Voltage: 1.25V
- Maximum Forward Voltage: 1.6V
- Typical Cutoff Frequency: 110kHz
- Typical Coupling Capacitance: 0.3pF
- Nonsaturated Turn-On Time: 6μs Typical
- Nonsaturated Turn-Off Time: 5μs Typical
- Saturated Turn-On Time: 9μs Typical
- Saturated Turn-Off Time: 10μs Typical
- Maximum Total Power Dissipation: 250mW
- Operating Temperature: −55°C to +100°C
- Storage Temperature: −55°C to +125°C
- Creepage Distance: 8mm
- Clearance Distance: 8mm
- Internal Insulation Distance: 0.40mm
- Package: SOP-4L Long Mini-Flat
- Package Length: Approximately 10.2mm
- Maximum Package Width: 4.1mm
- Maximum Package Height: 2.3mm
- Lead Pitch: 2.54mm
- Mounting Type: Surface Mount
- Moisture Sensitivity Level: MSL 1
- Packaging: Tape and Reel
- Standard Reel Quantity: 3,000 Units
- Approvals: UL, cUL, VDE, BSI, FIMKO, and CQC
- Compliance: RoHS, Lead-Free, and Halogen-Free
Typical Applications
Suitable for switch-mode power-supply feedback, microcontroller and microprocessor interface isolation, industrial-control signal transfer, computer-peripheral interfaces, power-status sensing, and isolated relay-control circuits. LED series resistance, CTR margin, output pull-up resistance, switching speed, temperature, and applicable isolation requirements should be verified in the final design.
