The LM13700MX/NOPB from Texas Instruments is a dual current-controlled operational transconductance amplifier (OTA). Each independent channel includes differential inputs and a push-pull current output, while both amplifiers share common supply rails. This architecture is well suited for voltage-controlled amplification, filtering, oscillation and dynamic analog signal-processing applications.
The LM13700 provides transconductance adjustment over more than six decades through the amplifier-bias current, IABC. Under the standard ±15V and 500µA IABC test condition, typical forward transconductance is approximately 9600µS. This current-controlled gain characteristic makes the device useful in VCAs, voltage-controlled filters and oscillators, analog multipliers and automatic-gain circuits.
Each OTA includes input linearizing diodes that reduce distortion and permit higher differential input levels. TI specifies approximately a 10dB signal-to-noise improvement referenced to 0.5% THD when using the linearizing structure. Two integrated high-impedance buffers complement the wide dynamic range of the transconductance stages.
Typical dynamic specifications include 2MHz open-loop bandwidth, 50V/µs slew rate, and 110dB CMRR. At VS=±15V with both channels biased at IABC=500µA, typical total supply current is approximately 2.6mA, while maximum input offset voltage is 4mV.
The device supports a 10V to 36V total supply range, including split-supply operation such as ±5V to ±18V. Typical applications listed by TI include current-controlled amplifiers, stereo audio amplifiers, current-controlled impedances and filters, oscillators, multiplexers, timers and sample-and-hold circuits.
The exact LM13700MX/NOPB ordering option is supplied in a 16-pin SOIC (D) package with a nominal body size of approximately 3.91 × 9.90mm. It operates from 0°C to +70°C and is supplied in 2,500-piece large tape-and-reel packaging. The device is RoHS and REACH compliant, carries an MSL Level 1 / 260°C rating, and is currently listed by TI as ACTIVE.
Key Specifications:
- Brand: Texas Instruments / TI
- Part Number: LM13700MX/NOPB
- Product Type: Operational Transconductance Amplifier / OTA
- Number of Channels: 2
- Architecture: Bipolar
- Input Type: Differential
- Output Type: Push-Pull Current Output
- Transconductance Control: IABC Current
- gm Adjustment Range: Over 6 Decades
- Typical Forward Transconductance: 9600µS @ IABC=500µA
- Linearizing Diodes: Yes
- High-Impedance Buffers: 2
- Total Supply Voltage: 10V to 36V
- Typical Split Supply Range: ±5V to ±18V
- Open-Loop Bandwidth: 2MHz Typ
- Slew Rate: 50V/µs Typ
- CMRR: 110dB Typ
- Maximum Input Offset Voltage: 4mV
- Typical Input Bias Current: 0.4µA
- Peak OTA Output Current: 500µA Typ @ IABC=500µA
- Typical Supply Current: 2.6mA, Both Channels
- Buffer Input Current: 0.5µA Typ
- Peak Buffer Output Voltage: 10V
- Crosstalk: 100dB Typ
- Operating Temperature: 0°C to +70°C
- Package: SOIC-16 / D
- Package Body Size: Approx. 3.91 × 9.90mm
- Mounting Type: SMD / SMT

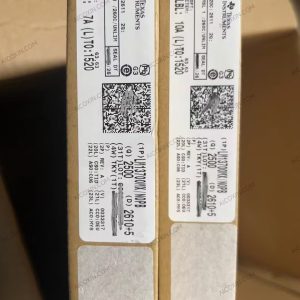

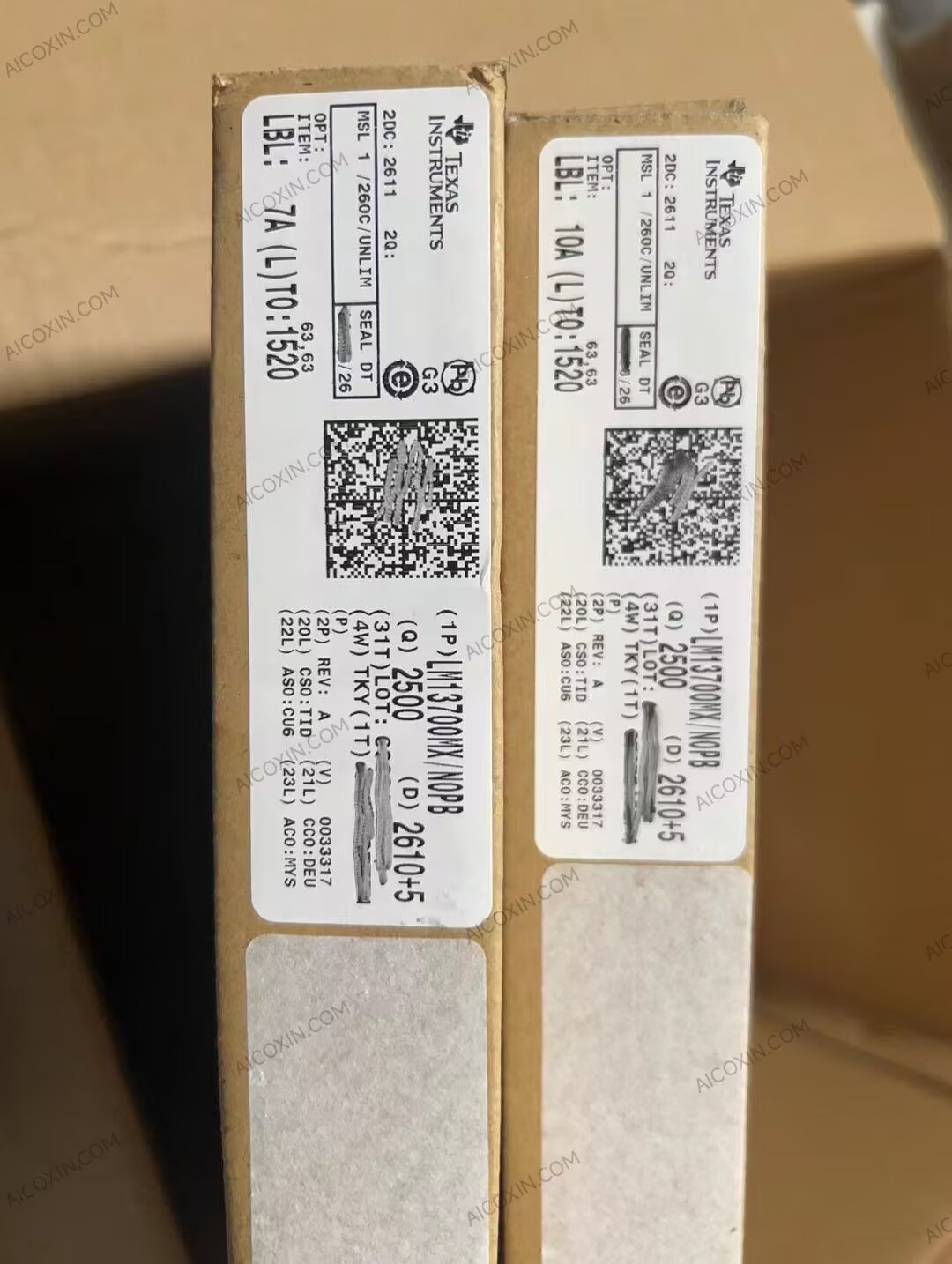

- Packaging: Large Tape & Reel
- Reel Quantity: 2500 pcs
- MSL: Level 1 / 260°C
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Product Status: ACTIVE.
What should I check before using LM13700MX/NOPB in a circuit designed for LM13600?
Check the DC operating point of the buffer across the gain-control range. TI states that the LM13700 buffer input bias current and output DC level are independent of amplifier bias current IABC. That behavior differs from the LM13600. Check the board footprint against the LM13700MX/NOPB package drawing as well. TI datasheet.
