The LM324PWR from Texas Instruments is a classic quad general-purpose operational amplifier integrating four independent, high-gain, internally frequency-compensated op amps in a single device. It operates from a total supply voltage of 3V to 30V and supports both single- and split-supply configurations, making it suitable for a wide range of analog signal-conditioning applications.
The LM324 provides a typical gain-bandwidth product of 1.2MHz and a typical slew rate of 0.5V/μs. Maximum input offset voltage at 25°C is 7mV, while typical common-mode rejection ratio is 80dB. Typical input voltage-noise density is approximately 35nV/√Hz at 1kHz.
A key feature of the LM324 is an input common-mode range that includes the negative supply rail, making it especially useful in single-supply circuits processing signals close to ground. The output can also swing close to the negative rail, with approximately 5mV typical low-side output headroom, while typical output-current capability is approximately 40mA.
Typical quiescent current is approximately 0.175mA per channel, and the device uses a bipolar architecture. Common applications include sensor signal conditioning, voltage amplification, active filters, voltage followers, monitoring circuits and other general-purpose analog designs. TI also offers the newer LM324B as a drop-in performance upgrade with improved specifications.
The specific LM324PWR ordering option is supplied in a 14-pin TSSOP (PW) package and operates over a 0°C to +70°C temperature range. It is supplied in 2000-piece large tape-and-reel packaging. The part is RoHS and REACH compliant, uses a NiPdAu lead finish, and carries an MSL 1 / 260°C unlimited floor-life rating. TI currently lists LM324PWR as ACTIVE and available for existing designs.
Key Specifications:
- Brand: Texas Instruments / TI
- Part Number: LM324PWR
- Product Type: General-Purpose Operational Amplifier
- Number of Channels: 4
- Architecture: Bipolar
- Total Supply Voltage: 3V to 30V
- Single-Supply Operation: Supported
- Split-Supply Operation: Supported
- Gain Bandwidth Product: 1.2MHz Typ
- Slew Rate: 0.5V/μs Typ
- Input Offset Voltage: 7mV Max @ 25°C
- Quiescent Current: 0.175mA/Channel Typ
- Input Bias Current: 250nA Max
- CMRR: 80dB Typ
- Input Voltage Noise: 35nV/√Hz Typ @ 1kHz
- Output Current: 40mA Typ
- Input Common Mode: Includes Negative Supply
- Positive-Rail Input Headroom: 1.5V Typ
- Low-Side Output Headroom: 5mV Typ
- High-Side Output Headroom: 2V Typ
- Internal Frequency Compensation: Yes
- Operating Temperature: 0°C to +70°C
- Package: TSSOP-14 / PW
- Pin Count: 14
- Mounting Type: SMD / SMT
- Packaging: Large Tape & Reel
- Reel Quantity: 2000 pcs
- Lead Finish: NiPdAu
- MSL: Level 1
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Product Status: ACTIVE
- Design Status: Available for Existing Designs
Can the L324 package marking distinguish LM324PWR from LM324PW?

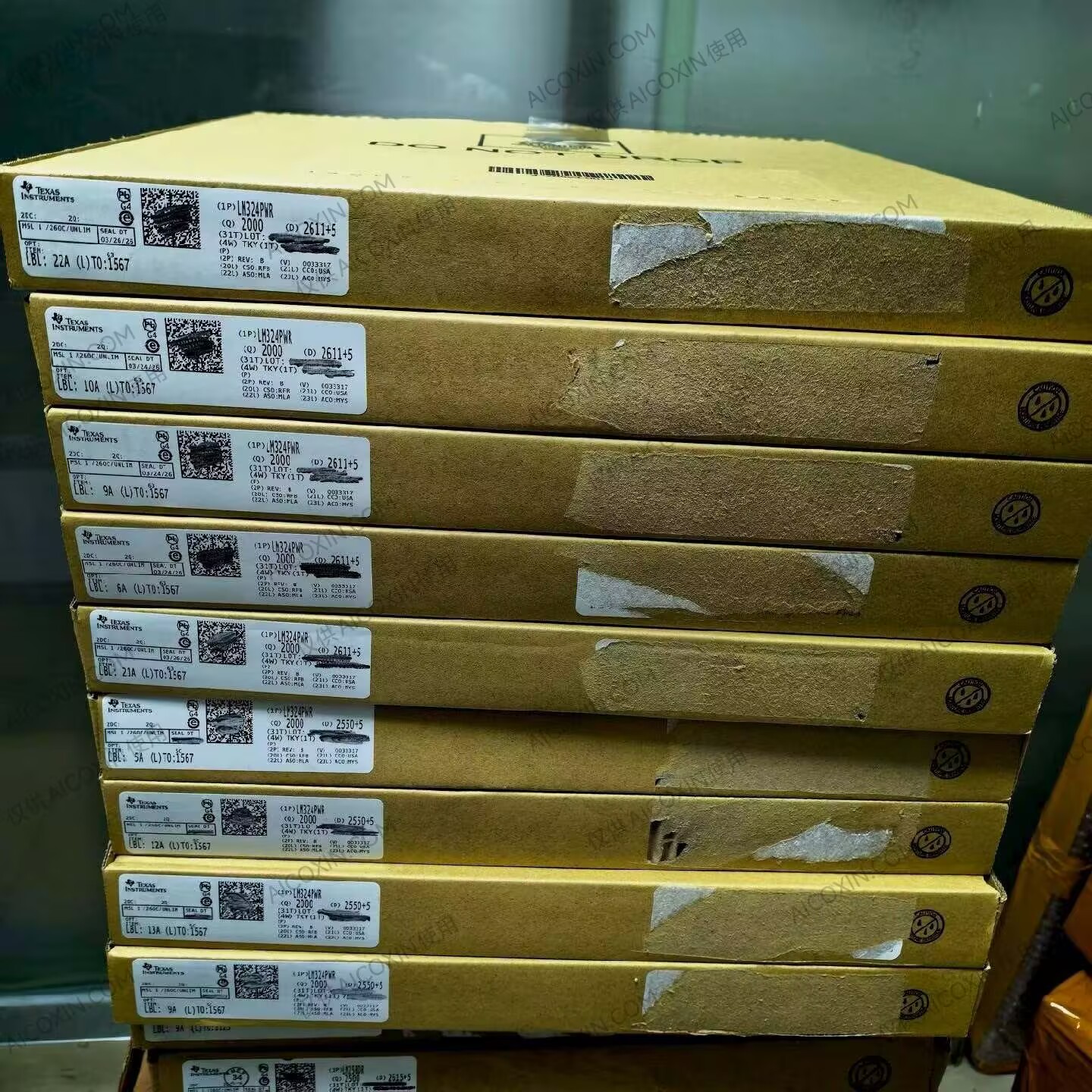

Check the original packaging label for the full ordering code. TI lists L324 as the device marking for both LM324PW and LM324PWR in its PW package. The LM324PWR ordering row specifies large tape and reel. Use the label to identify the orderable part and packing format when the approved BOM calls for LM324PWR. TI datasheet.
