The TPS82140SILR from Texas Instruments is a highly integrated synchronous step-down DC/DC power module combining a buck converter and power inductor in a compact package. It operates from a 3V to 17V input-voltage range, provides an adjustable 0.9V to 6V output, and delivers up to 2A of continuous output current.
The module uses TI’s DCS-Control™ architecture for fast load-transient response and accurate output-voltage regulation. It operates in PWM mode at a nominal switching frequency of 2MHz and automatically enters Power Save Mode at light loads. Typical operating quiescent current in this mode is approximately 20μA.
TPS82140 supports 100% duty-cycle operation to minimize dropout when the input voltage approaches the programmed output voltage. Integrated functions include enable control, power-good output, output discharge, programmable soft start, and output-voltage tracking for controlled power sequencing.
The device includes thermal-shutdown protection and supports an operating-temperature range from −40°C to +125°C. It is supplied in an 8-terminal MicroSiP package measuring 3.0 × 2.8 × 1.5mm, making it suitable for compact, high-density power designs.

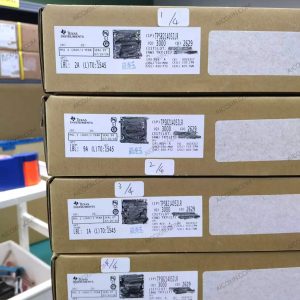

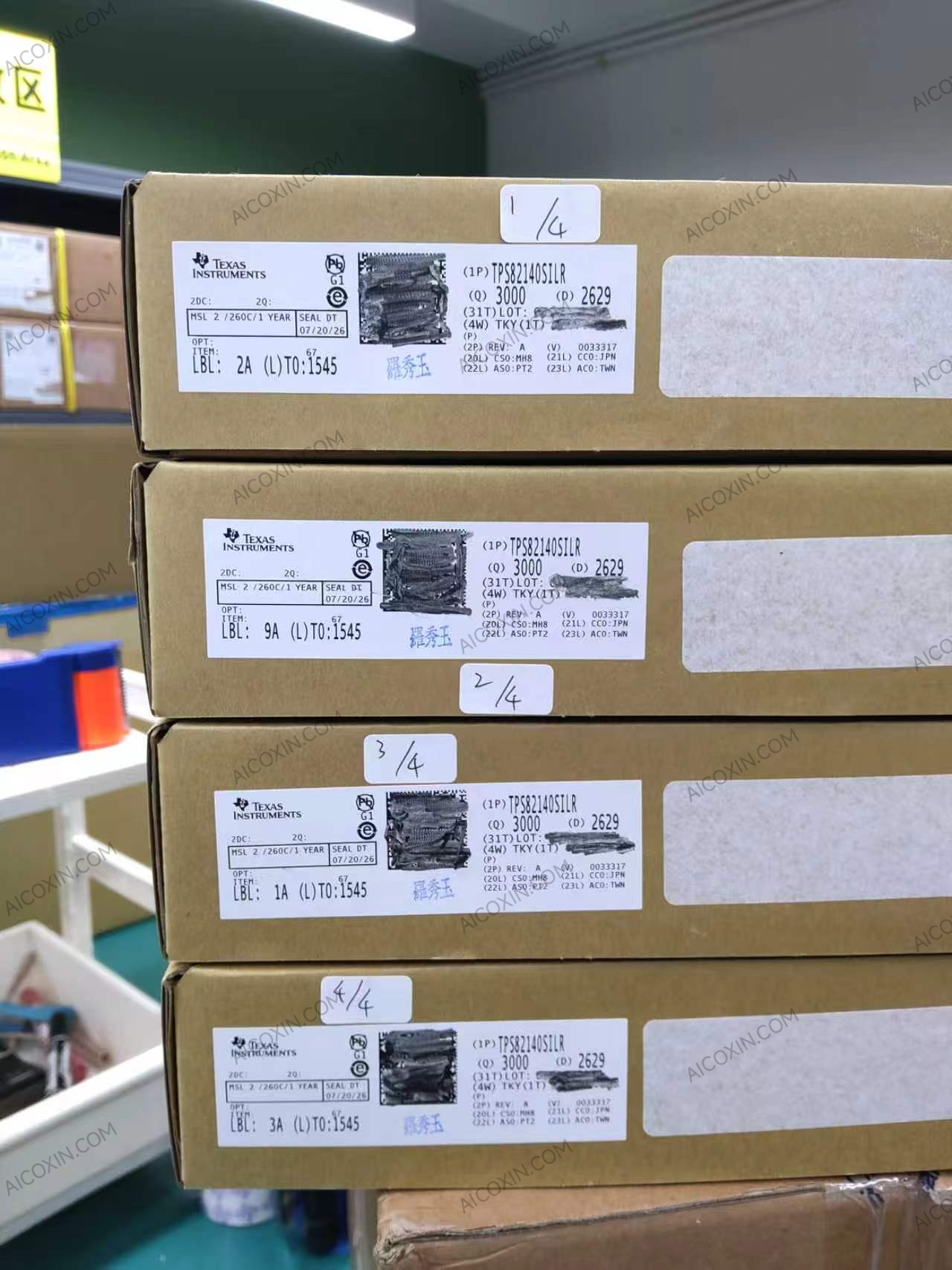

The TPS82140SILR ordering option is supplied on large tape and reel with 3,000 units per reel. It is RoHS compliant and rated MSL 2 for automated surface-mount assembly.
Key Specifications:
- Manufacturer: Texas Instruments
- Manufacturer Part Number: TPS82140SILR
- Device Type: Synchronous Step-Down DC/DC Power Module
- Topology: Synchronous Buck
- Integrated Components: Converter, Power Switches, and Inductor
- Input-Voltage Range: 3V to 17V
- Output-Voltage Range: 0.9V to 6V
- Continuous Output Current: Up to 2A
- Nominal Switching Frequency: 2MHz
- Switching-Frequency Range: Approximately 1.25MHz to 2.5MHz
- Control Architecture: DCS-Control™
- Maximum Duty Cycle: 100%
- Typical Quiescent Current: 20μA
- Light-Load Mode: Power Save Mode
- Status Output: Power Good
- Startup Functions: Programmable Soft Start and Voltage Tracking
- Additional Features: Enable and Output Discharge
- Protection: Thermal Shutdown
- Operating Temperature: −40°C to +125°C
- Package: 8-Terminal MicroSiP
- Package Dimensions: 3.0 × 2.8 × 1.5mm
- Mounting Type: Surface Mount
- Packaging: Large Tape and Reel
- Standard Reel Quantity: 3,000 Units
- Moisture Sensitivity Level: MSL 2
- Compliance: RoHS Compliant
Typical Applications:
Suitable for point-of-load supplies for FPGAs, ASICs, processors, and microcontrollers, as well as industrial control modules, communication equipment, test and measurement systems, portable devices, medical electronics, and space-constrained embedded systems.
