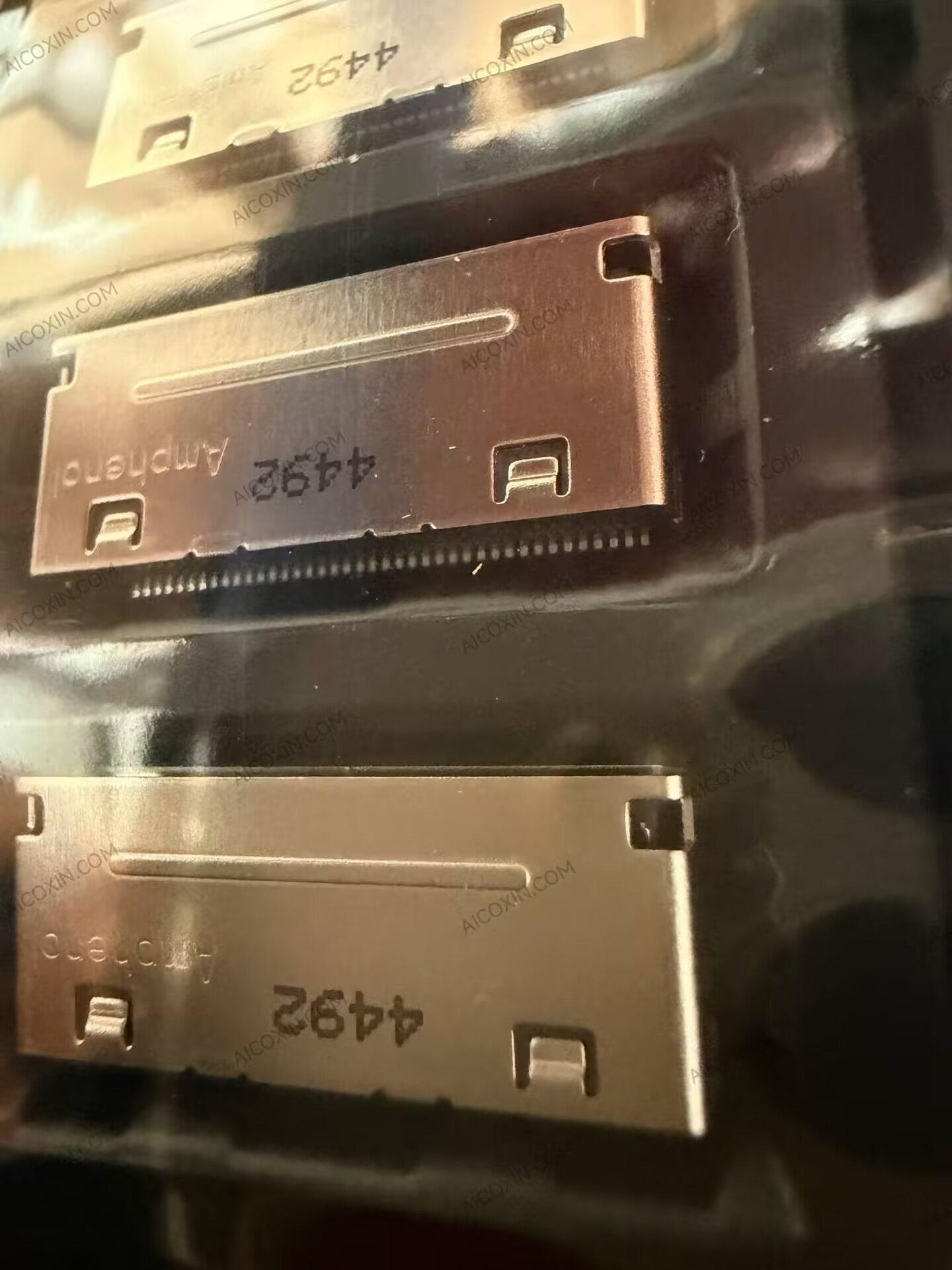

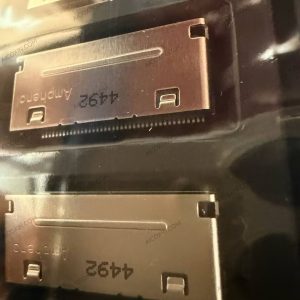

The U10BH7425101T from Amphenol Communications Solutions is a SlimSAS U10-series high-speed I/O connector featuring an X8 vertical configuration, 74 contacts, and a high-density 0.60mm pitch. The SlimSAS platform is designed for compact server, data-center, and storage-system interconnects.
The exact part supports a 24Gb/s data rate and belongs to Amphenol’s SlimSAS interface family designed for SAS-4 applications. The U10 series is based on the SFF-8654 specification and is targeted at next-generation SAS 4.0 and PCIe Gen 4 interconnect applications.
The connector uses an 85Ω ±10Ω differential impedance architecture for controlled high-speed differential signaling. Amphenol’s U10-series design also incorporates signal-integrity features for high-speed storage and computing applications.
The U10BH7425101T provides 74 contacts with 0.76μm / 30μin gold plating in the mating contact area. It uses an X8 vertical configuration with the latch pins located outside the PCB footprint and a 3.0mm latch-pin length.
Electrical ratings for the SlimSAS U10 family include 30V DC maximum per contact and 0.5A maximum per contact. The operating-temperature range is −40°C to +85°C, while mechanical durability is specified at a minimum of 250 mating cycles.
The connector housing uses black LCP high-temperature thermoplastic compatible with lead-free reflow processing, while the contact base material is phosphor bronze and the mating area is gold plated. The series meets UL 94V-0, RoHS, and halogen-free requirements.

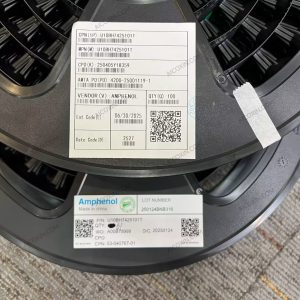

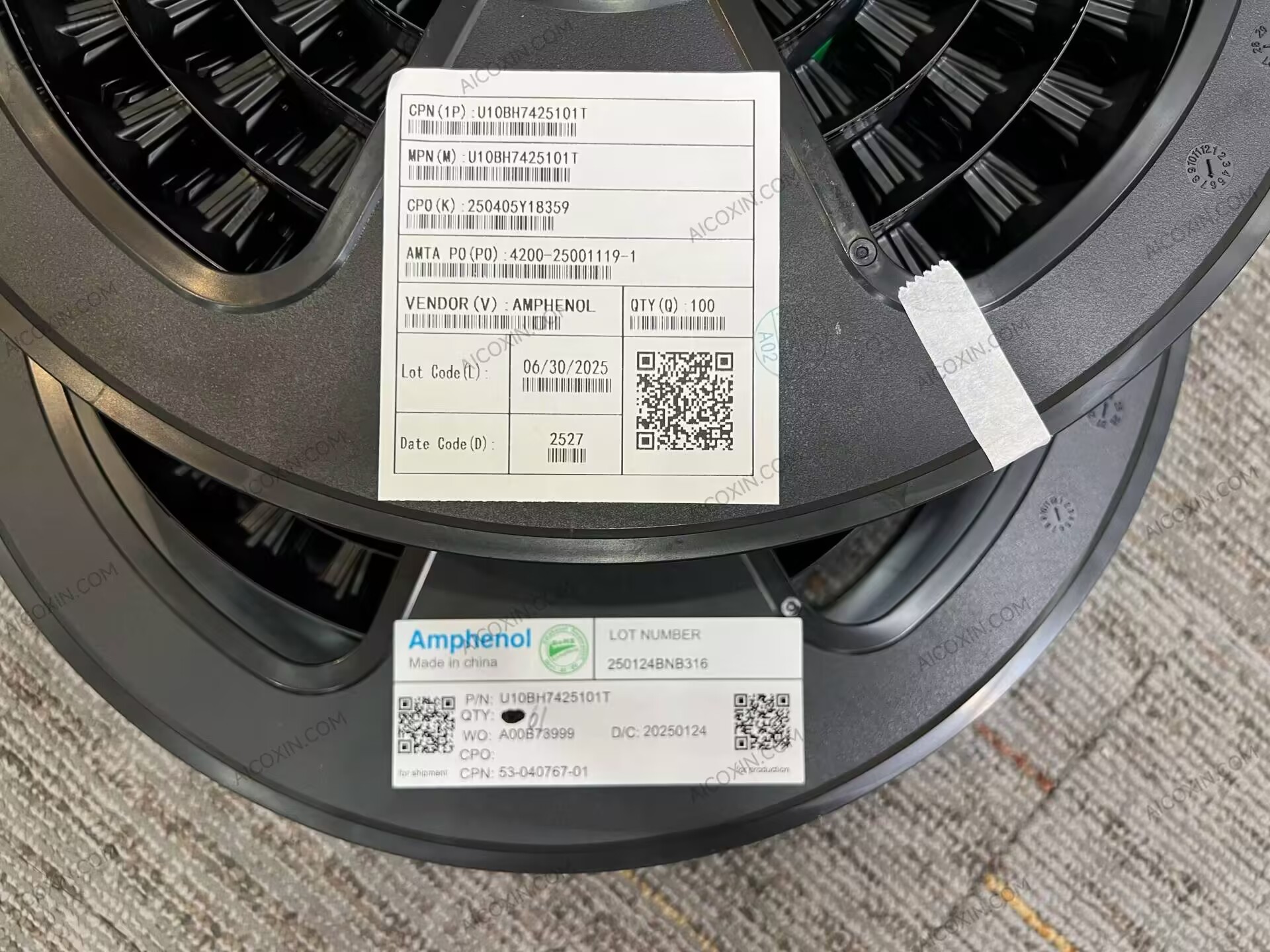

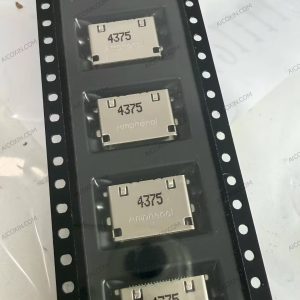

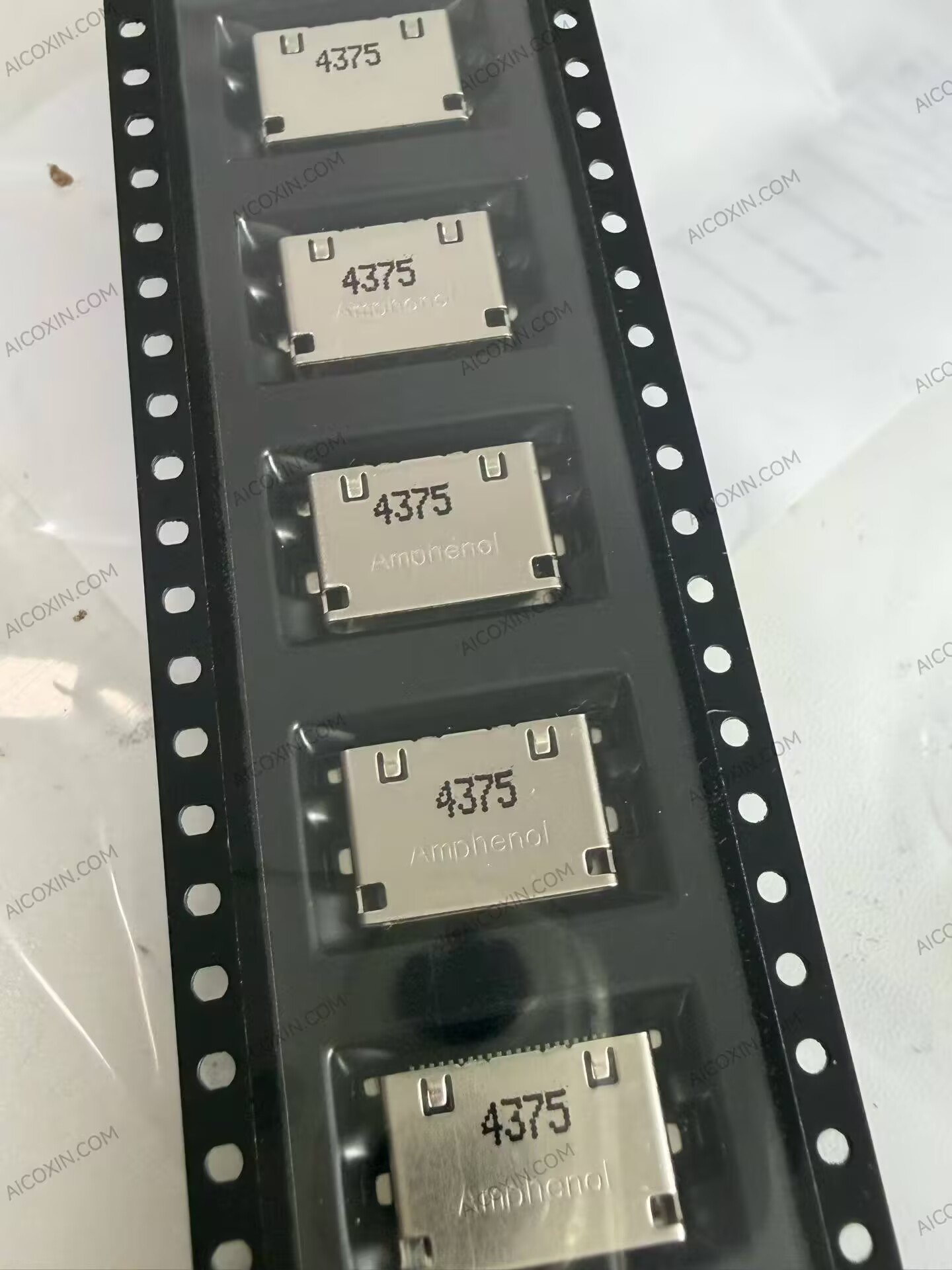

The U10BH7425101T uses surface-mount termination and is supplied in tape-and-reel packaging for automated assembly. Amphenol currently lists the exact orderable part as Active.
Key Specifications
- Manufacturer: Amphenol Communications Solutions
- Manufacturer Part Number: U10BH7425101T
- Product Series: SlimSAS U10
- Device Type: High-Speed I/O Connector
- Interface: SlimSAS
- Configuration: X8
- Orientation: Vertical
- Number of Contacts: 74
- Contact Pitch: 0.60mm
- Maximum Data Rate: 24Gb/s
- Interface Specification: SAS-4 / SFF-8654
- Differential Impedance: 85Ω ±10Ω
- Contact-Area Plating: Gold
- Gold-Plating Thickness: 0.76μm / 30μin
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP
- Housing Color: Black
- Maximum Voltage Rating: 30V DC per Contact
- Maximum Current Rating: 0.5A per Contact
- Operating Temperature: −40°C to +85°C
- Durability: 250 Mating Cycles Minimum
- Maximum Mating Force: 55.5N
- Withdrawal Force: 49N
- Minimum Latch Retention Force: 50N
- Latch Pin Location: Outside PCB Footprint
- Latch Pin Length: 3.0mm
- Termination Style: Surface Mount
- Packaging: Tape and Reel
- Flammability Rating: UL 94V-0
- RoHS: Compliant
- Halogen-Free: Yes
- Product Status: Active
Typical Applications
Suitable for data centers, host bus adapters, servers, RAID storage systems, storage controllers, storage racks, routers, switches, and other high-speed SAS and PCIe interconnect applications.
