The UNI-ROYAL 1206W4J0470T5E is a general-purpose thick film surface-mount resistor featuring a resistance of 47Ω, a tolerance of ±5%, and a rated power of 0.25W (1/4W). It comes in a 1206 imperial package, equivalent to the 3216 metric size, with approximate dimensions of 3.10 × 1.55 × 0.55mm for compact PCB assembly.
The resistor supports a maximum working voltage of 200V, a maximum overload voltage of 400V, and a dielectric withstand voltage of 500V. It operates across a temperature range of -55°C to +155°C, while the 47Ω resistance value has a temperature coefficient of ±100ppm/°C.

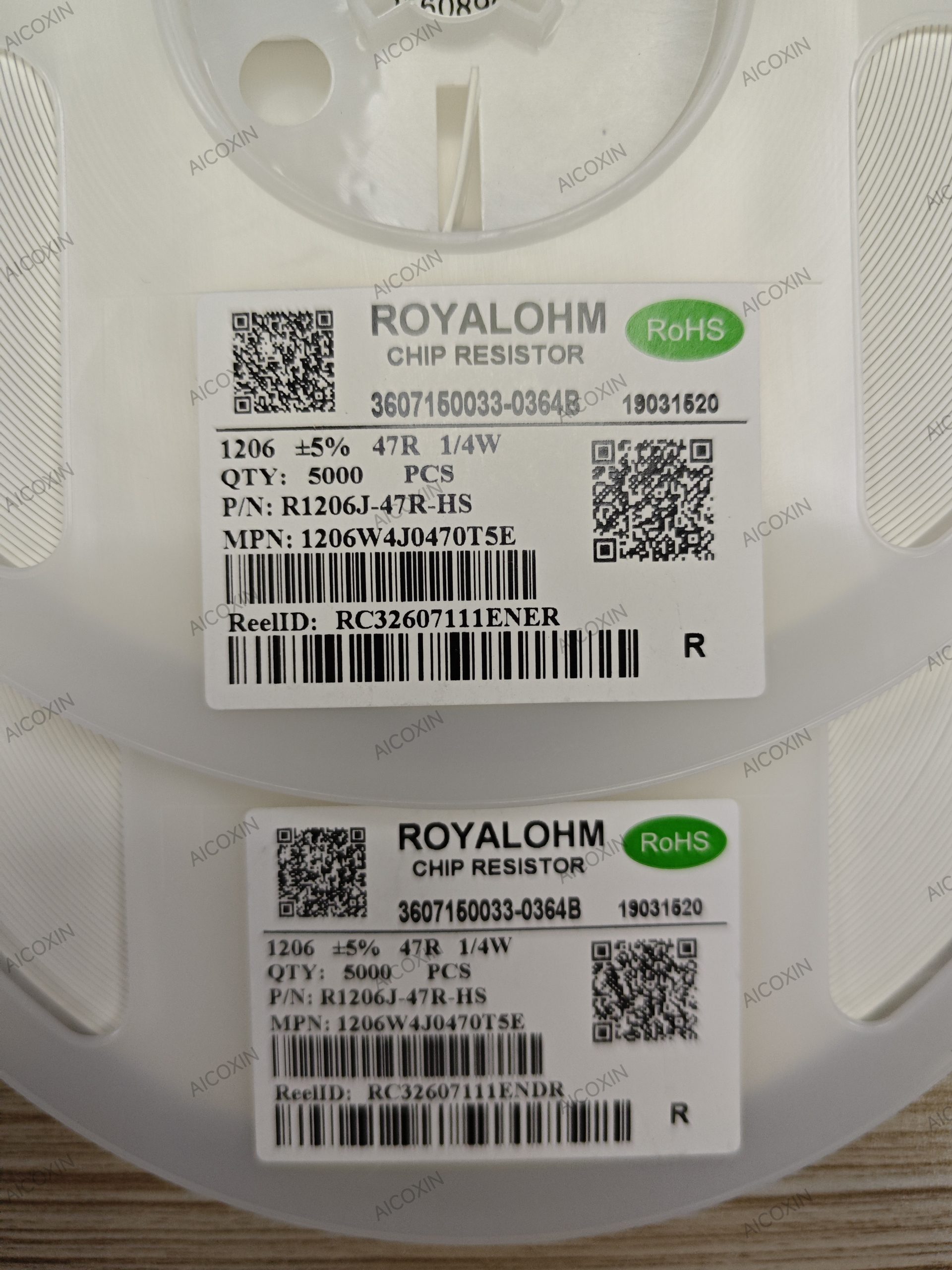

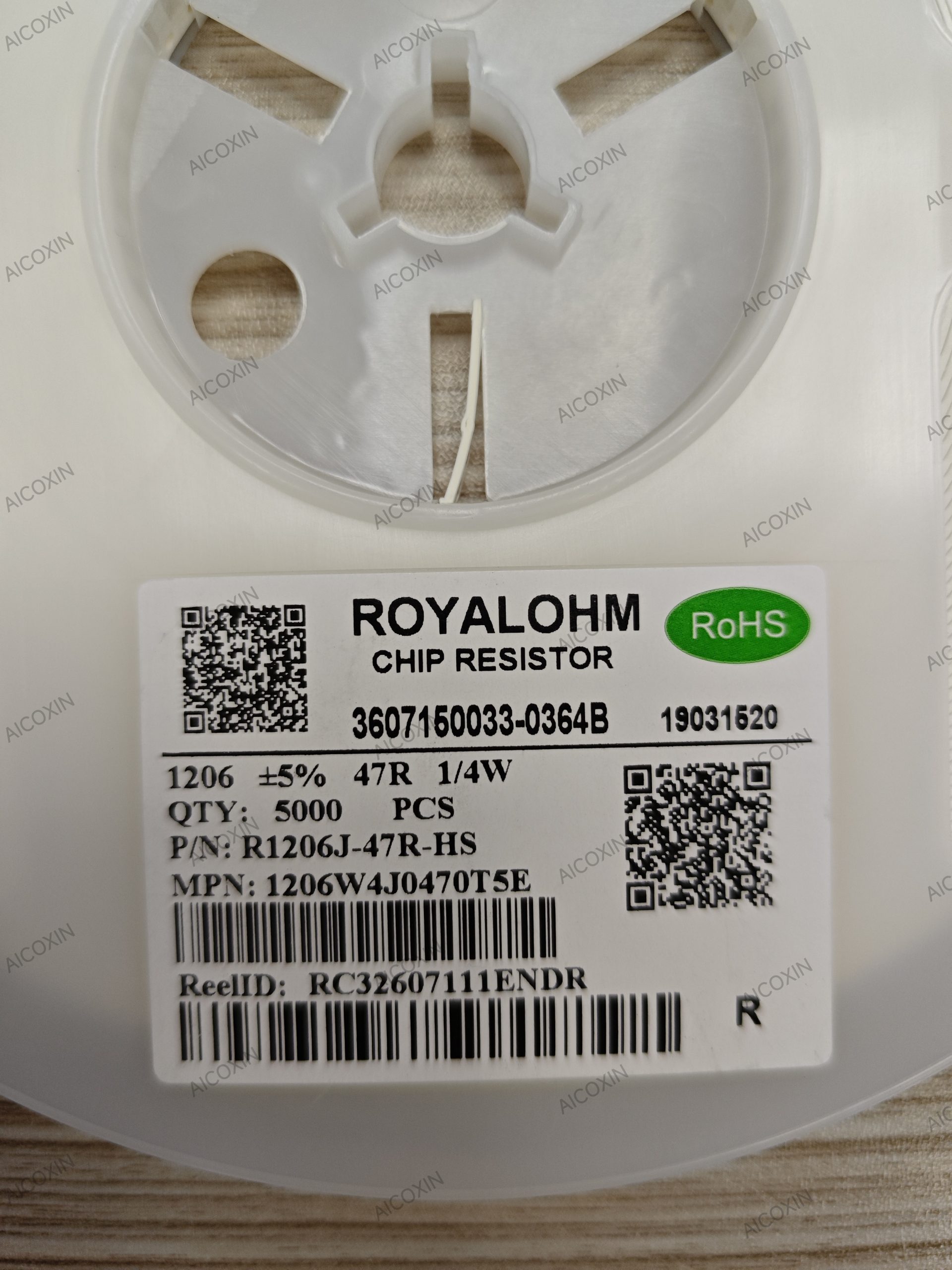

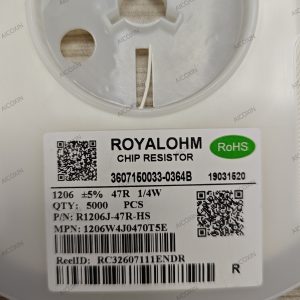

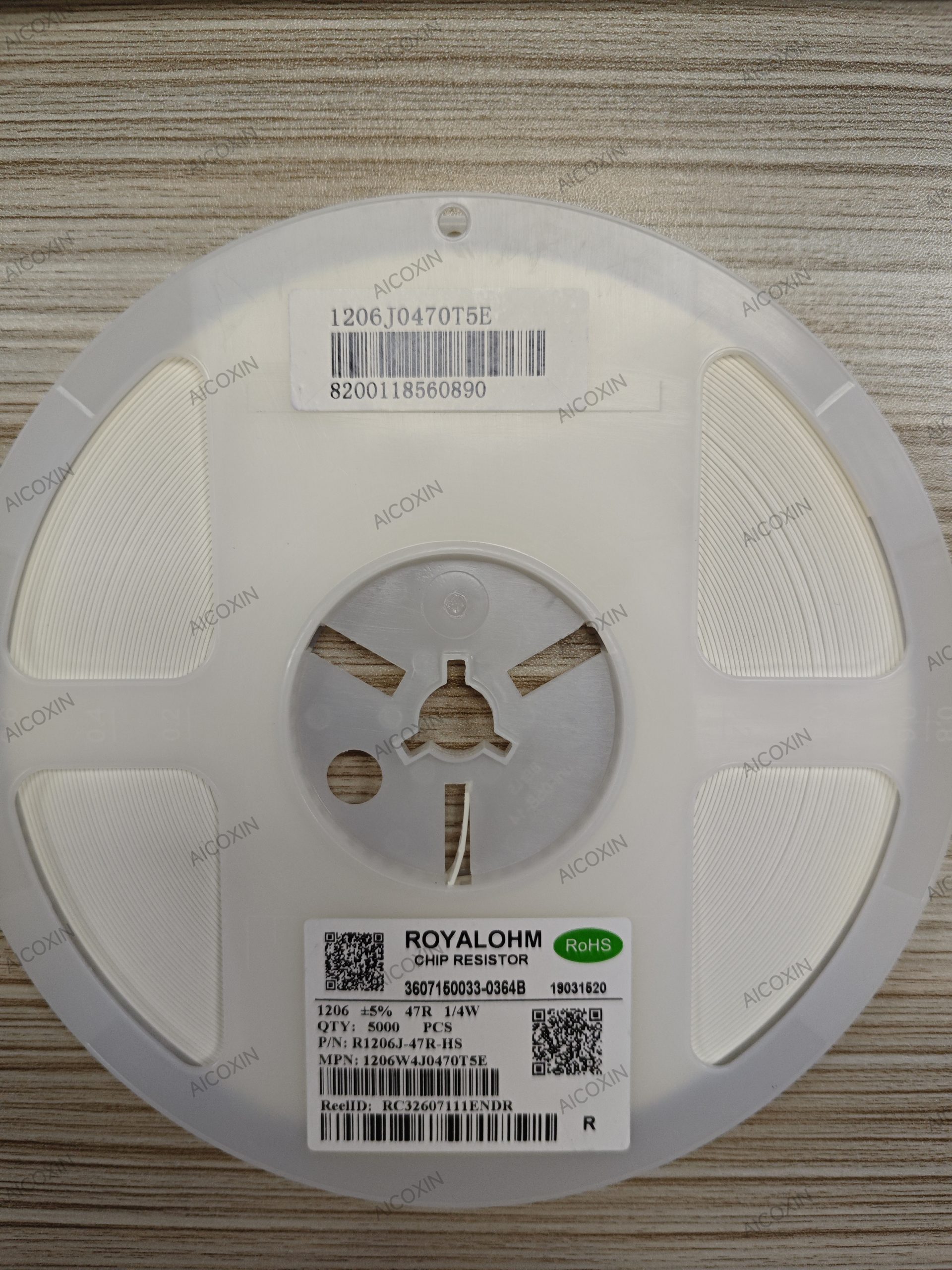

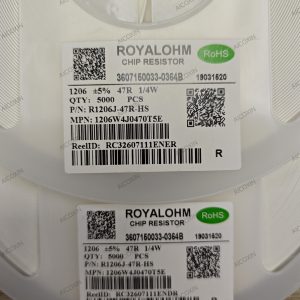

The 1206W4J0470T5E features lead-free terminations and is compatible with both reflow and wave soldering processes. The “T5E” suffix identifies tape-and-reel packaging with 5,000 pieces per reel and a lead-free standard configuration. Typical applications include current limiting, voltage division, pull-up and pull-down networks, signal conditioning, telecommunications equipment, instrumentation and consumer electronics.
